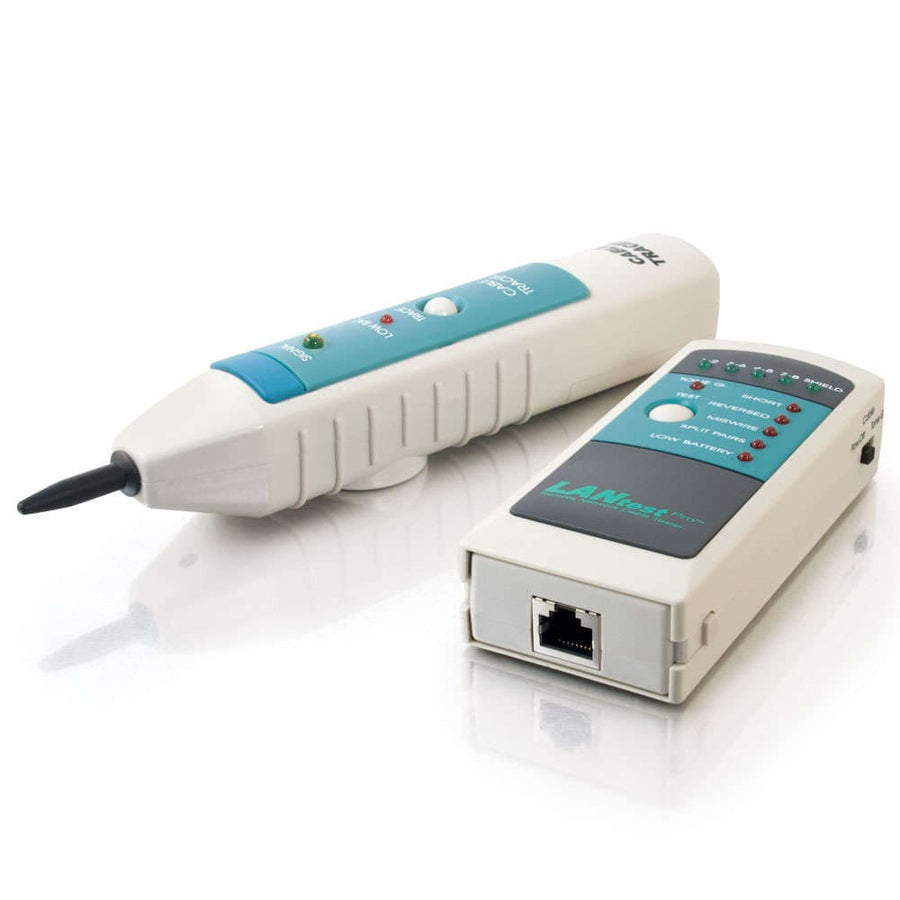

LANtest Pro Remote Network Cable Tester with Tone and Probe
Compact network cable tester with remote unit, integrated tone generator, and split pair detection for rapid fault identification
The C2G LANtest Pro CG26847 is a handheld network cable tester designed to quickly identify faults in ethernet twisted pair cabling. This kit includes one master unit and one remote unit, allowing a single technician to test both patch cords and installed cables. The device provides high-speed testing for errors such as open circuits, shorts, crossed pairs, reversed pairs, and split pairs. Notably, this tester can detect split pair faults on cable lengths of at least 40cm. The remote unit is designed to slip into the master unit for secure storage when not in use. For more complex troubleshooting, the tester features a debug mode for detailed fault identification, an integrated tone generator, and the ability to verify shield integrity. To maximize battery life during field use, the unit includes an auto sleep mode and a physical power off switch, alongside a low battery indicator to ensure you are prepared for the job site.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 0.96 lbs (0.4 kg) |
| Color | White |
| Product Type | Tester |
| TAA Compliant | No |
| UPC | 757120268475 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
Questions about this part
What types of cable faults can the CG26847 identify?
The CG26847 identifies open circuits, shorts, crossed pairs, reversed pairs, and split pairs, specifically detecting split pairs on cables at least 40cm in length.
Can this tester verify the integrity of shielded cables?
Yes, the LANtest Pro includes a built-in feature to verify shield integrity during your cable testing.
How does the remote unit store when I am not using it?
The small remote unit is designed to slip directly into the master unit for easy, secure storage in a toolkit.
What testing modes are available on the LANtest Pro?
The device offers high-speed testing for quick status reads and a specific debug mode for more detailed identification of cable faults.
Does the CG26847 include a tone generator?
Yes, this unit features an integrated tone generator and a probe to assist with cable tracing.
