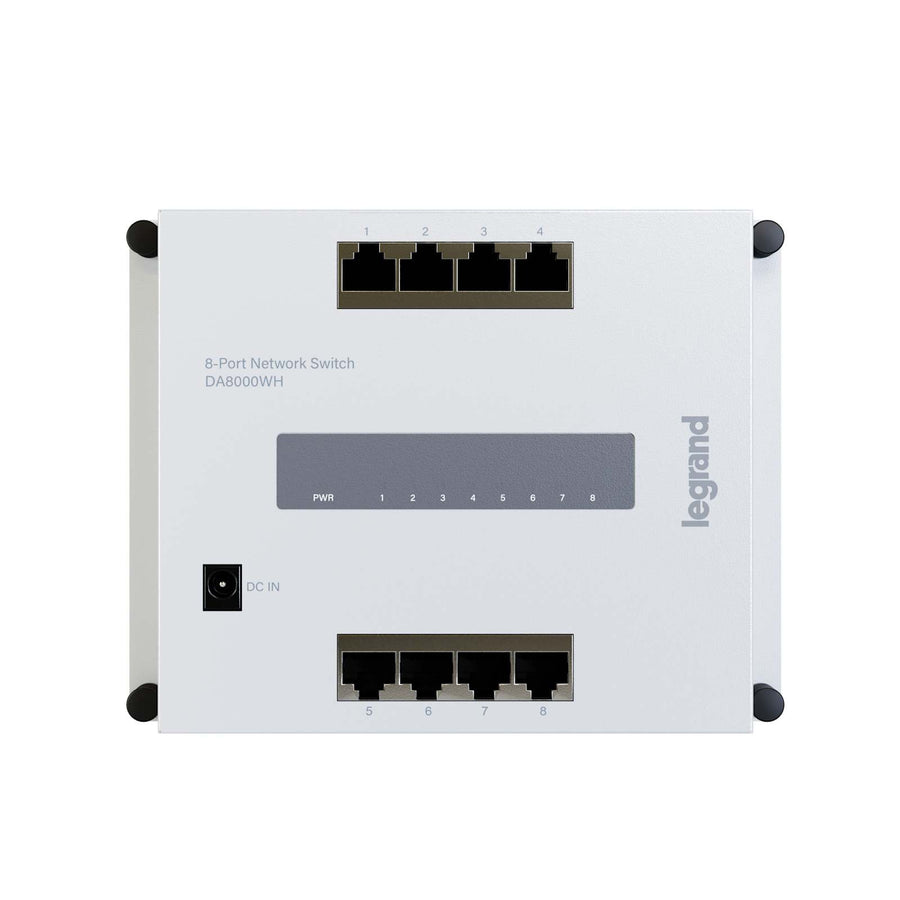

8-Port Network Switch
8-port unmanaged Gigabit Ethernet switch designed for mounting in On-Q Legrand plastic enclosures
The DA8000WH is an 8-port unmanaged network switch designed specifically for integration into On-Q Legrand plastic enclosures. This white, wired switch provides high-speed 1000 Mbps data transfer rates across eight Gigabit Ethernet ports, making it a reliable solution for connecting bandwidth-intensive devices such as wireless access points, VoIP phones, and IP cameras. Designed for plug-and-play installation, this switch attaches directly to compatible On-Q enclosures to eliminate the need for mounting third-party hardware. The unit features front-facing power and status LEDs, allowing installers to monitor operational status at a glance without opening the enclosure. It operates within a temperature range of -4°F to 113°F (-20°C to 45°C) and is built for energy efficiency through IEEE 802.3 compliance. This model includes an AC adapter with a US power cord for immediate deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.98 in (2.5 cm) |
| Height | 4.92 in (12.5 cm) |
| Operating Temperature | -4° - 113°F (-20° - 45°C) |
| Package Count | 1 |
| Package Depth | 10.12 in (25.7 cm) |
| Package Height | 2.44 in (6.2 cm) |
| Package Width | 5.08 in (12.9 cm) |
| Product Weight | 1.06 lbs (0.5 kg) |
All other specifications 10
| Storage Temperature | -40° to 158°F (-40°C to 70°C) |
| Color | White |
| Connection Type | Wired |
| Number of Ports | 8 |
| Port Location | Front |
| Power Cord | US Cord |
| Power Supply | AC Adapter |
| Switch Type | Unmanaged |
| UPC | 804428435273 |
| Certifications | ETL |
Resources
You'll need these with it
Questions about this part
Will the DA8000WH fit in my On-Q enclosure?
Yes, this switch is specifically designed to attach directly to On-Q Legrand plastic enclosures for a custom fit.
What is the difference between the DA8000WH and the DA8800WH?
The DA8000WH is a standard 8-port Gigabit switch, whereas the DA8800WH is the 8-Port PoE+ version.
Does this switch include the power supply?
Yes, the DA8000WH comes with an included AC adapter and a US power cord.
What type of devices can I connect to this switch?
The eight Gigabit ports are suitable for wired devices like wireless access points, IP cameras, and VoIP phones.
Where do I find the installation instructions for the DA8000WH?
Installation instructions for this model are available in the DA8000WH Installation Instructions PDF.
