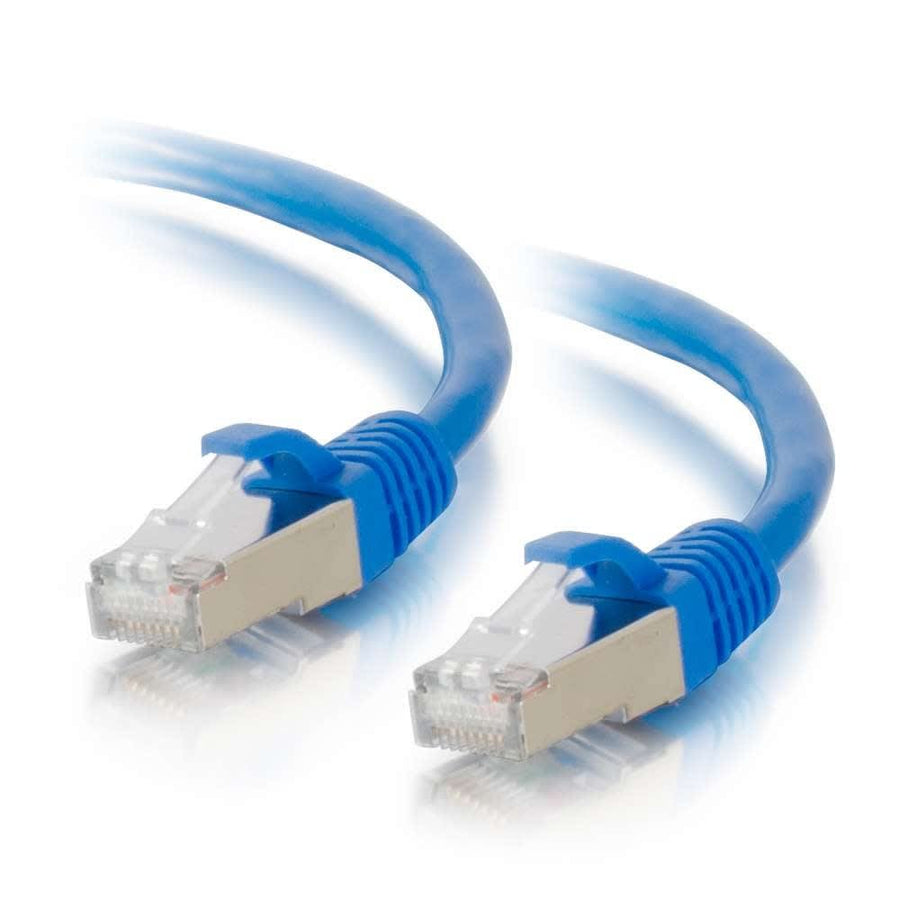

8ft (2.4m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
8ft Blue Cat6a Snagless Shielded STP Ethernet Patch Cable for 10GBase-T network equipment
The C2G CG00679 is an 8 ft (2.4 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to support high-speed 10GBase-T ports and equipment. This blue patch cable is ideal for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels where electromagnetic interference must be mitigated. Because it uses Shielded STP construction, it protects high-speed 10 Gigabit network connections from noise. The cable features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation to help maintain twist-spacing right to the termination point. This design helps minimize Near-End Crosstalk (NEXT) and reduces both impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The jacket is made of PVC and includes snagless, booted RJ-45 male connectors for easy installation and protection. It is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C) and is NDAA 889 compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006794 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this cable is designed for use with 10GBase-T ports and equipment to protect high-speed 10 Gigabit network connections from noise.
What is the wiring scheme for the C2G CG00679?
This patch cable uses the 568B wiring scheme and features 4-pair 26AWG stranded bare copper conductors.
What is the bend radius for this 8ft patch cable?
The minimum bend radius for the CG00679 is 1.95 in (49.6 mm) with a cable diameter of 0.24 in (6.2 mm).
Is this cable suitable for high-interference environments?
Yes, the Shielded STP (SSTP) construction is designed to reduce impedance, structural return loss, and electromagnetic interference.
What certifications does this cable meet?
This cable is ANSI/TIA 568 C.2 Cat6a component tested and is compliant with NDAA 889, RoHS, REACH, and CE standards.
