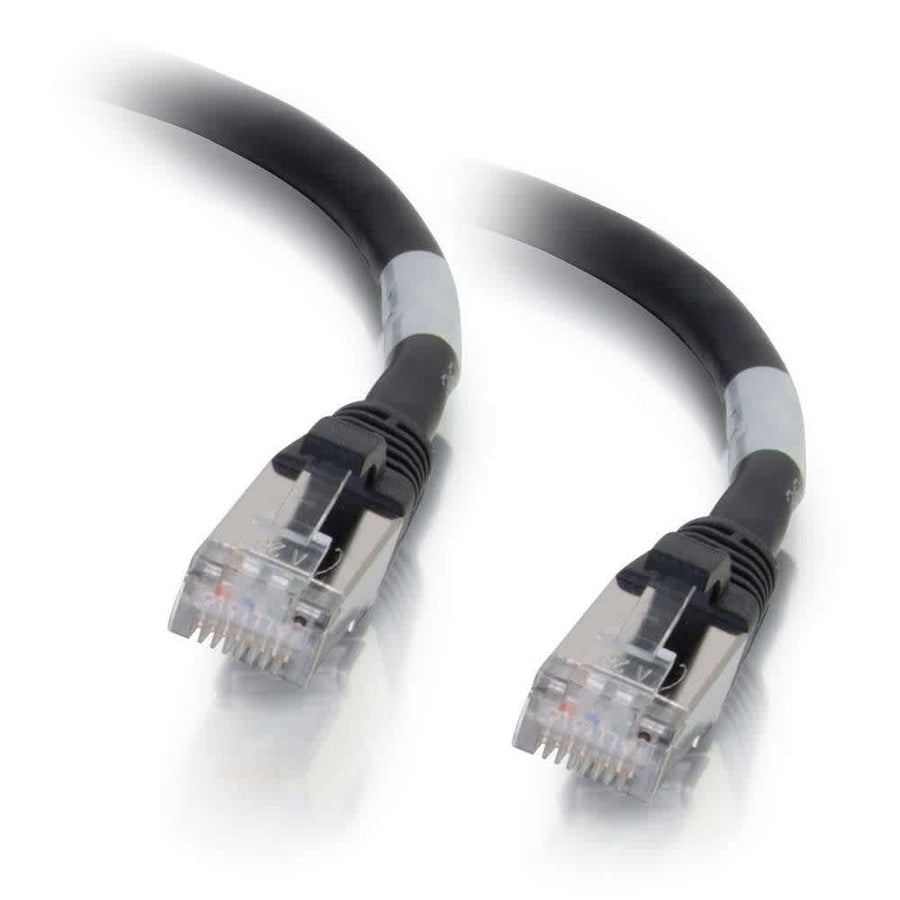

8ft (2.4m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
Shielded Cat6a patch cable for 10GBase-T connections, featuring snagless boots and 8ft length
The C2G CG00713 is an 8 ft (2.4 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to support high-bandwidth applications and protect 10GBase-T network connections. It is built to mitigate electromagnetic interference (EMI) and noise, making it suitable for use with network adapters, switches, routers, hubs, and patch panels. This cable features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation to help maintain twist-spacing and minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded to ensure performance through the termination point. This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable data distribution for voice, video, and high-speed data environments. The black PVC jacket and snagless, booted RJ-45 male connectors provide durability for professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007135 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Is the C2G CG00713 suitable for 10Gbps networking?
Yes, this Cat6a patch cable is designed for use with 10GBase-T ports and equipment, including network adapters, hubs, switches, and routers.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C).
What wiring scheme does this Cat6a cable use?
This cable uses the 568B wiring scheme for its RJ-45 connections.
Does this cable provide protection against electromagnetic interference?
Yes, the Shielded STP (SSTP) construction is designed to protect high-speed network connections from noise and EMI.
What tools are required for installation?
As a pre-terminated patch cable, no specialized installation tools are required for connection; however, an installer may require standard network testers for verification.
