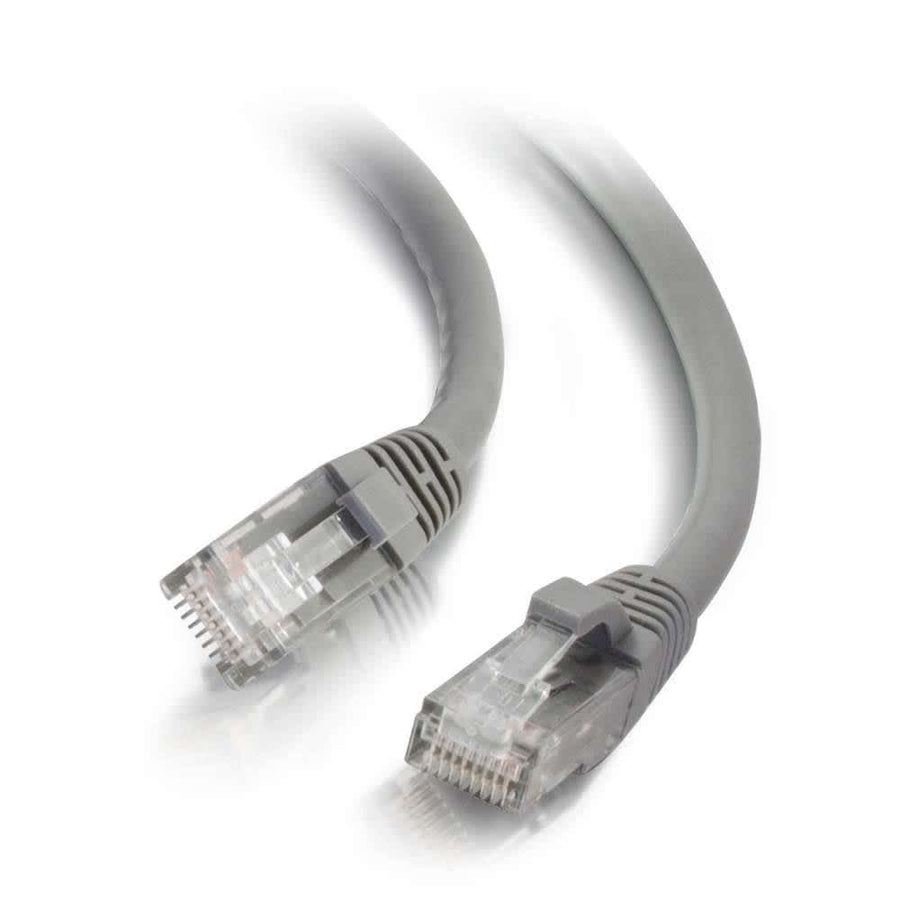

8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
8ft Cat6 snagless unshielded UTP Ethernet patch cable in gray with stranded copper conductors
The C2G CG03968 is an 8ft (2.4m) Cat6 snagless unshielded UTP Ethernet network patch cable designed for high-bandwidth applications including voice, data, and video distribution. This cable is constructed with high-quality stranded copper conductors and utilizes a T568B wiring scheme to ensure reliable connectivity in Gigabit computer networks. The design features individual pair bonding to maintain twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels, impedance, and structural return loss (SRL). Each RJ-45 male connector is protected by a molded PVC snagless boot, which provides additional strain relief and prevents the locking clips from breaking during installation or frequent plugging and unplugging. This gray, unshielded twisted pair (UTP) cable has a diameter of 0.24 in (6.2 mm) and is built to meet all Cat6 TIA/EIA standards for professional networking environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039686 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG03976$9.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the wiring configuration for the C2G CG03968?
This patch cable uses a standard T568B wiring scheme with RJ-45 male connectors on both ends.
Is this cable suitable for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for high-bandwidth applications like Gigabit computer networks, including voice, data, and video distribution.
How does the snagless design benefit installation?
The molded snagless boot protects the connector clips from damage during insertion and provides extra strain relief for the cable.
What is the difference between this and the CG03976 SKU?
The CG03976 is the same 8ft Cat6 snagless unshielded UTP cable but features a Blue color instead of Gray.
Which compliance standards does this cable meet?
This cable is rated for REACH, RoHS, and TSCA, and is compliant with CE standards.
