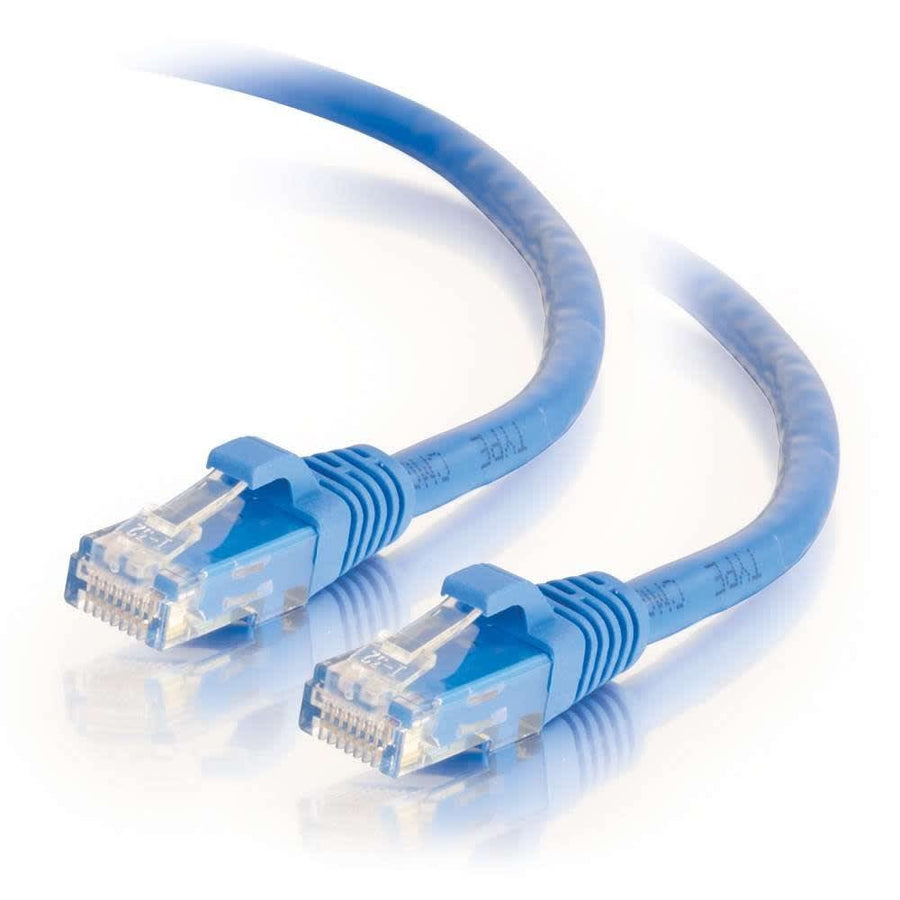

8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
8ft (2.4m) blue Cat6 snagless UTP patch cable, 24 AWG stranded copper, T568B wiring scheme
The C2G CG03976 is an 8ft (2.4m) blue Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution. This cable is constructed with high-quality 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. It utilizes a T568B wiring scheme and is fully compliant with Cat6 TIA/EIA standards, which helps drastically reduce impedance and structural return loss (SRL) in high-performance networks. Each individual pair is bonded together to maintain precise twist-spacing from the termination point to the end of the line. The connector features a molded snagless boot made of PVC, which protects the RJ-45 clips from damage during installation and provides extra strain relief. This blue cable is part of a larger series available in up to 150ft lengths and 10 different colors for easy network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039761 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03984$9.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the maximum distance for this cable series?
While this specific SKU is 8 ft (2.4 m), the Cat6 Snagless Patch Cable series is available in lengths up to 150ft.
Does this cable support Gigabit Ethernet?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks requiring high bandwidth for data or video.
Is this cable shielded or unshielded?
This is an unshielded (UTP) cable, meaning it does not have additional shielding beyond the twisted pair design.
How can I color-code my network installation with these cables?
This blue SKU is one of 10 different colors available in this series to assist with network organization.
What is the wiring scheme used for this patch cable?
This cable follows the T568B wiring scheme with RJ-45 male connectors on both ends.
