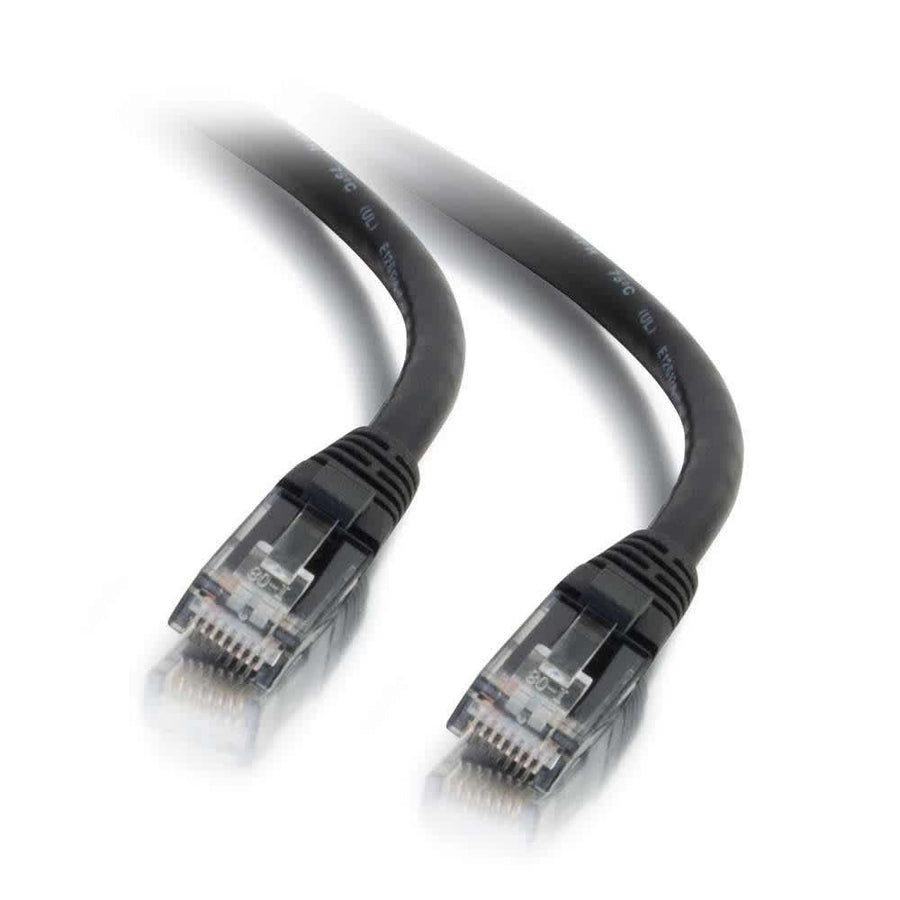

8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
8ft Cat6 snagless unshielded UTP ethernet patch cable, black, with copper stranded conductors and T568B wiring
The C2G CG03984 is an 8ft (2.4 m) Cat6 snagless unshielded UTP ethernet patch cable designed for high-bandwidth voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This black patch cable features stranded copper conductors and a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. Built to meet all Cat6 TIA/EIA standards, the design drastically reduces impedance and structural return loss (SRL) by bonding individual pairs to maintain twist-spacing throughout the line up to the termination point. The cable features RJ-45 male connectors on both ends with a PVC hood material. Each connector is equipped with a snagless, booted design to protect the clips from damage during installation and provide added strain relief. This unshielded twisted pair (UTP) cable is available in various colors to facilitate network color-coding and is suitable for bandwidth-intensive applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039846 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG03976$9.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Will this Cat6 cable fit my network hardware?
The CG03984 uses standard RJ-45 male connectors and is designed for Gigabit and fast Ethernet computer networks.
What is the difference between this and the blue version?
The CG03984 is the black finish version; a blue variant is available under SKU CG03976.
Does this cable support high-speed data distribution?
Yes, this Cat6 cable meets TIA/EIA standards for bandwidth-intensive voice, data, and video applications.
What wiring standard is used for this patch cable?
This cable follows the T568B wiring scheme.
Does this cable include a warranty?
This C2G patch cable is backed by a Lifetime warranty.
