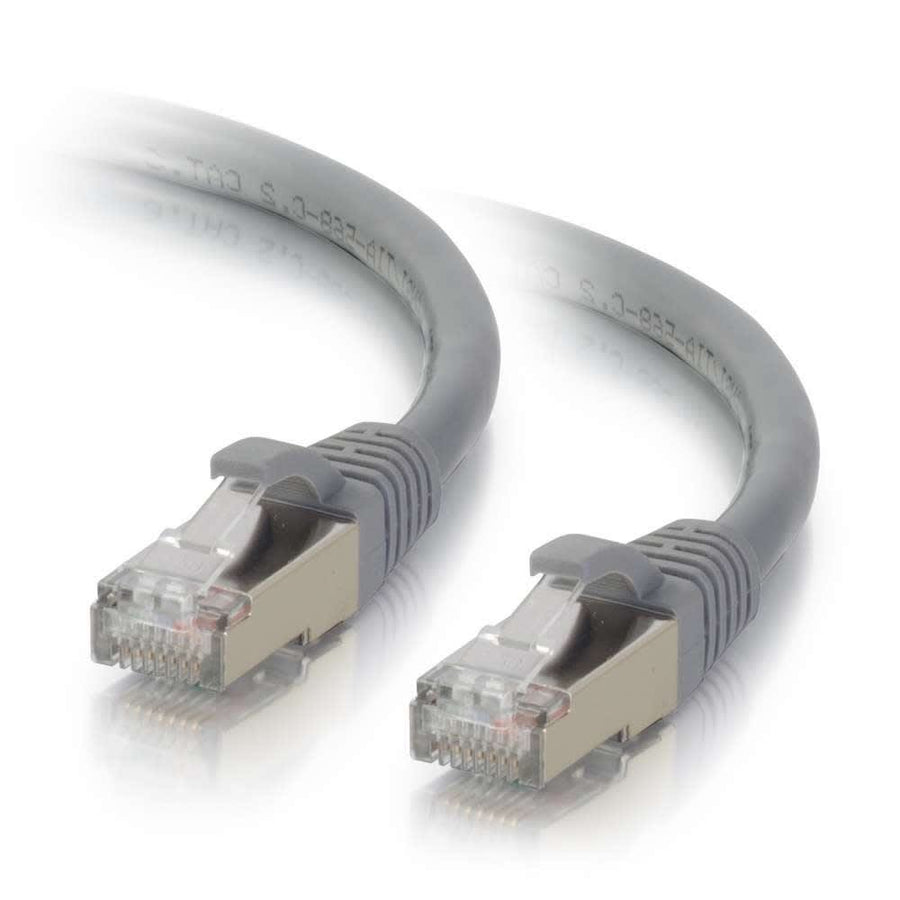

8ft (2.4m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Gray
Shielded Cat6 STP patch cable in gray, featuring 8 ft (2.4 m) length and snagless boots to prevent accidental disconnects
The CG00781 is an 8 ft (2.4 m) Cat6 shielded STP Ethernet network patch cable designed to protect high-speed networks from electromagnetic interference and noise. Utilizing a stranded SSTP construction with 26AWG bare copper conductors, this cable is engineered for bandwidth-intensive voice, data, and video distribution. It is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance. To minimize Near-End Crosstalk (NEXT), the design incorporates individual pair bonding to maintain twist-spacing throughout the line up to the termination point. This gray cable features a PVC jacket and PVC connector hoods with snagless, booted RJ-45 male connectors. It follows the T568B wiring scheme and is rated for temperatures up to 75°C. For easy deployment, each cable includes an individual length label for identification within complex network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | STP |
| Shipping Weight | 0.27 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007814 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Is the CG00781 suitable for high-bandwidth video and data applications?
Yes, this Cat6 shielded patch cable is designed to handle bandwidth-intensive distribution while reducing impedance and structural return loss (SRL).
What is the wiring scheme for this C2G patch cable?
This cable utilizes the T568B wiring scheme for all connections.
Will this cable protect my network from electromagnetic interference?
The shielded (STP) construction is specifically designed to protect high-speed networks from noise and EMI.
Does this cable require special tools for installation?
As a pre-terminated patch cable with snagless boots, it is ready for immediate deployment into standard RJ-45 ports.
What is the temperature rating for this Cat6 cable?
The cable is rated for operation in temperatures up to 75°C.
