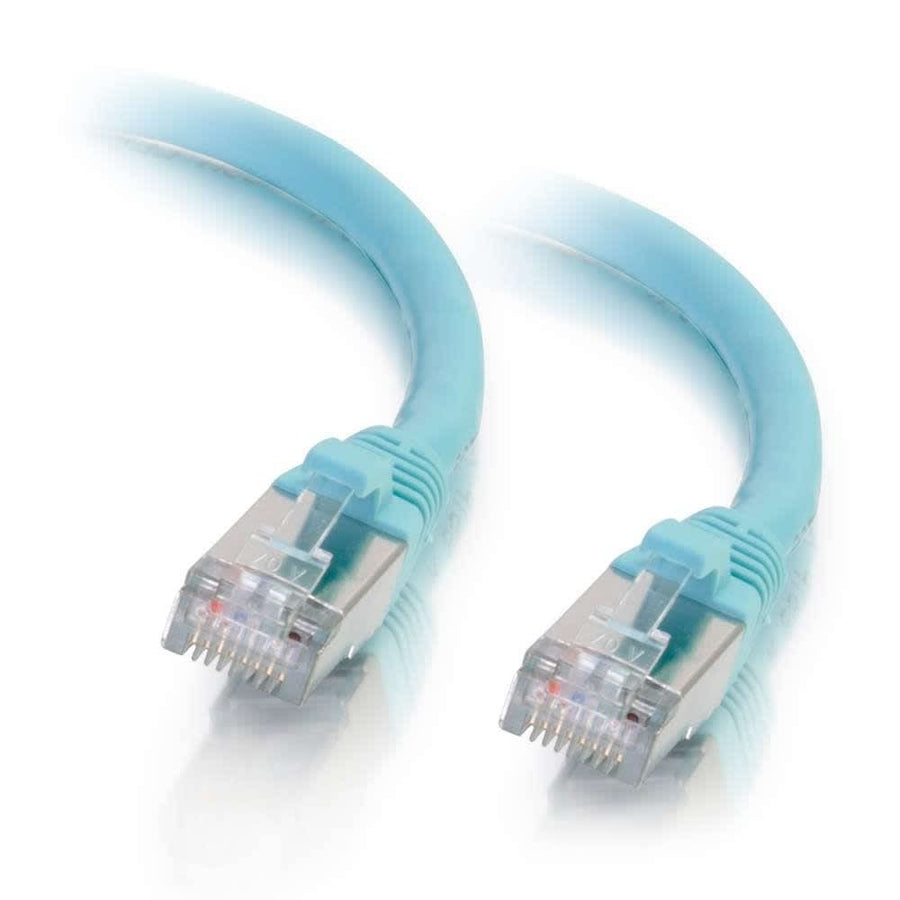

7ft (2.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
7ft Cat6a Snagless Shielded STP patch cable, 26AWG stranded copper, Aqua finish, for 10GBase-T networking
The C2G CG00746 is a 7 ft (2.1 m) Cat6a Snagless Shielded STP Ethernet patch cable designed to support bandwidth-intensive 10GBase-T applications. This aqua-colored cable is built to protect high-speed 10 Gigabit network connections from electromagnetic interference and noise through its shielded STP construction. It is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable features 26AWG bare copper stranded conductors and FMPE (Foam Polyethylene) insulation to help maintain twist-spacing through the termination point. This design is engineered to minimize Near-End Crosstalk (NEXT) levels and reduce both impedance and structural return loss (SRL). This specific SKU is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. For ease of identification in complex installations, each individual cable includes a length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007463 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit networking?
Yes, the CG00746 is designed for 10GBase-T ports and equipment, protecting high-speed 10 Gigabit connections from electromagnetic interference.
What is the difference between this cable and unshielded versions?
This is a Shielded STP (SSTP) cable using 26AWG stranded copper, which helps reduce impedance, structural return loss, and Near-End Crosstalk (NEXT).
What testing standards does this patch cable meet?
This Cat6a patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
Can I use this for color-coding my network rack?
Yes, this SKU features an Aqua jacket and includes an individual length label on each cable to help distinguish it from other colors in your installation.
What is the maximum operating temperature for this cable?
The cable is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C).
