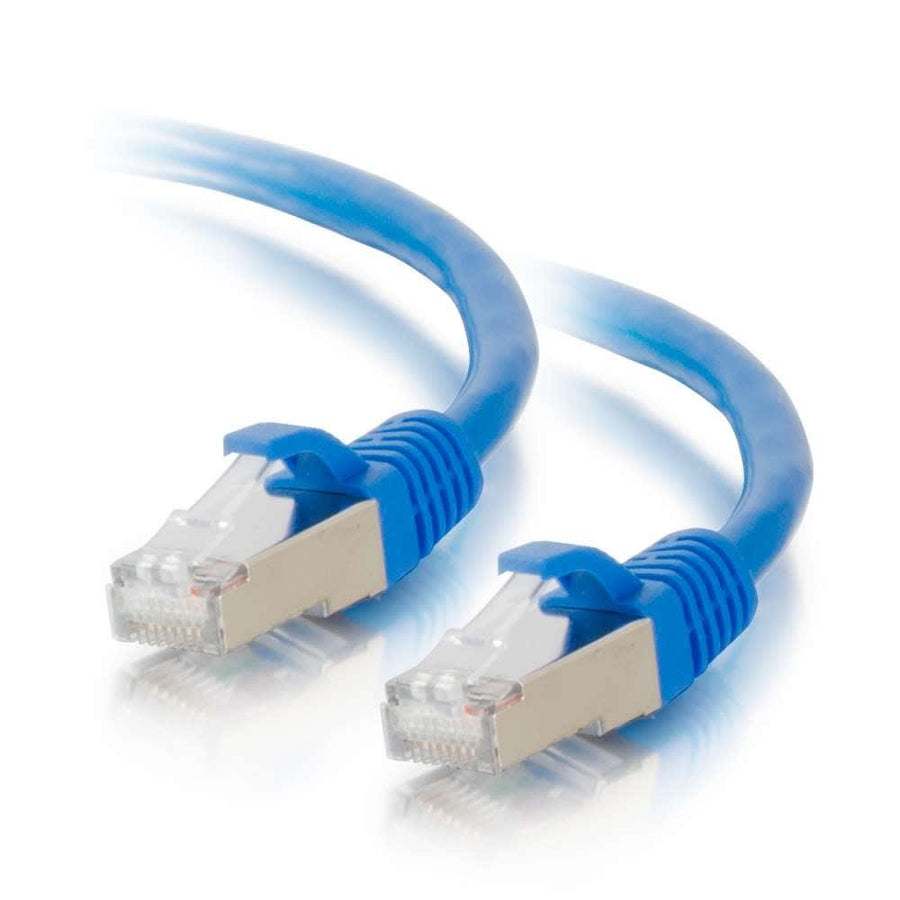

7ft (2.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
7ft Cat6 STP snagless shielded patch cable in blue, featuring stranded copper conductors and T568B wiring for high-bandwidth applications
The C2G CG00797 is a 7ft (2.1m) Cat6 STP snagless shielded patch cable designed to protect high-speed networks from electromagnetic interference and noise. This blue cable is specifically engineered for voice, data, and video distribution in environments where bandwidth-intensive applications require minimized impedance and reduced structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance for professional installations. The construction features 26AWG bare copper stranded conductors with FM-PE insulation. To combat Near-End Crosstalk (NEXT), individual pairs are bonded together to maintain consistent twist-spacing from the cable through to the termination point. This STP (Shielded Twisted Pair) design is ideal for reducing interference in dense cabling environments. This cable utilizes a T568B wiring scheme and features PVC connector hoods and a PVC jacket for durability in standard, non-rated installation environments. Each cable includes an individual length label for easy identification during deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 7 ft (2.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007975 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video and data distribution?
Yes, this STP cable is designed to reduce structural return loss (SRL) and impedance, making it suitable for bandwidth-intensive video and data applications.
Does this cable provide shielding against electromagnetic interference?
Yes, the CG00797 is a Shielded Twisted Pair (STP) cable designed to protect networks from noise and interference.
What is the wiring scheme for the CG00797?
This patch cable uses the T568B wiring scheme and features 26AWG stranded copper conductors.
Is this cable suitable for professional networking deployments?
Yes, these cables are fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
What is the difference between this and the non-shielded versions?
This SKU is a Shielded (STP) version, whereas the series also includes unshielded options to handle different levels of electromagnetic interference.
