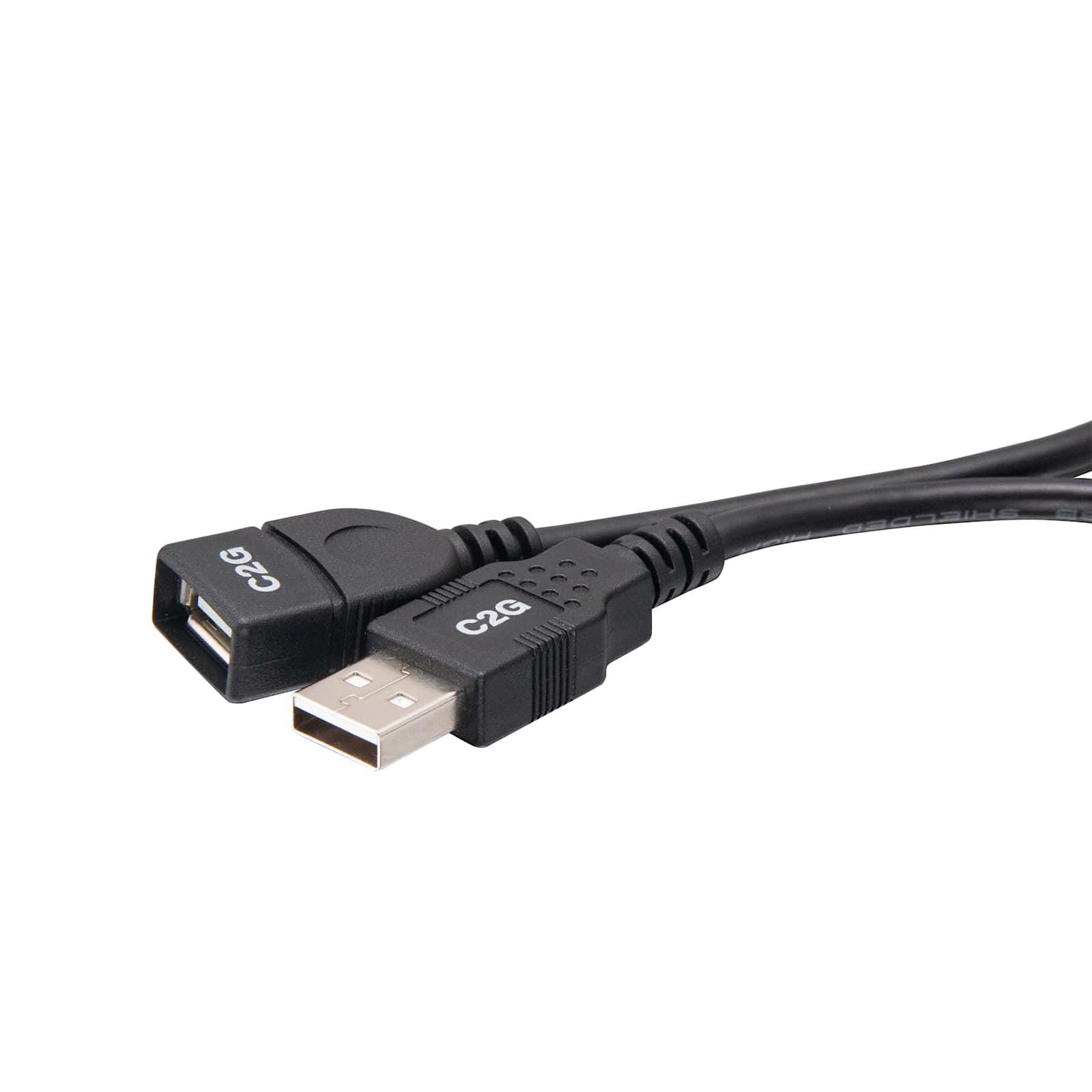

6ft (1.8m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable
6ft USB 2.0 A male to A female extension cable, TAA-compliant, with foil and braid shielding for interference protection
The C2G68012 is a 6ft (1.8m) USB 2.0 A Male to A Female extension cable designed to increase the reach of your existing USB A/B cables. This bidirectional cable facilitates high-speed, error-free data transfer with a 480 MBPS rate. To protect against EMI/RFI interference, the cable features foil and braid shielding combined with twisted pair construction to reduce crosstalk. The cable is constructed with a 24 AWG wire gauge and a black PVC jacket, maintaining a cable diameter of 0.19 in (4.7 mm) and a bend radius of 1.85 in (47 mm). This TAA-compliant cable is compatible with both PC and Mac systems. For installations requiring more significant distance, please note that this cable is not intended for use beyond a total extended single length of 16 feet. For high-powered devices or longer runs, consider using Superbooster® products or other USB extension solutions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | 23° - 113°F (-5° - 45°C) |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 16
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 149 Fahrenheit (65 Celsius) |
| Storage Temperature Min | -40 Fahrenheit (-40 Celsius) |
| Wire Gauge | 24 |
| Cable Type | ExtensionUSB |
| Color | Black |
| Connector 1 | (1) USB-A Male |
| Connector 2 | (1) USB-A Female |
| Product Type | Cable |
| TAA Compliant | Yes |
| Technology Specifications | USB 2.0 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Superbooster® USB 1.1 Over Cat5 Extender Dongle Kit (TAA Compliant)
CG29341$151.99
HDMI® HDBaseT + USB-B to A and RS232 Over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz (TAA compliant)
C2G31030$747.99
Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
C2G54262$835.99
Superbooster® 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54269$752.99
Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
3ft (0.9m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable
C2G68011$17.99
10ft (3.1m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable
C2G68013$23.99
16.4ft (5m) USB 3.0 USB-A Male to USB-A Female Active Extension Cable
CG39939$77.99
Questions about this part
The C2G68012 is an extension cable designed to add reach to your existing USB A/B cable by connecting the female end to your current cord.
The C2G68012 is an extension cable designed to add reach to your existing USB A/B cable by connecting the female end to your current cord.
What is the maximum total length for this extension?
This cable should not be used when the total extended single length exceeds 16 feet. For longer reaches, consider a Superbooster® USB extension product.
Is this cable TAA-compliant for government contracts?
Yes, the C2G68012 is TAA-compliant, making it suitable for environments requiring compliance with the Trade Agreements Act.
Can I use this for high-power USB devices?
For high-powered devices or runs exceeding 16 feet, it is recommended to use Superbooster® products rather than this extension cable.
Does this cable support bidirectional data transfer?
Yes, the C2G68012 supports bidirectional signal transmission for USB 2.0 applications.
