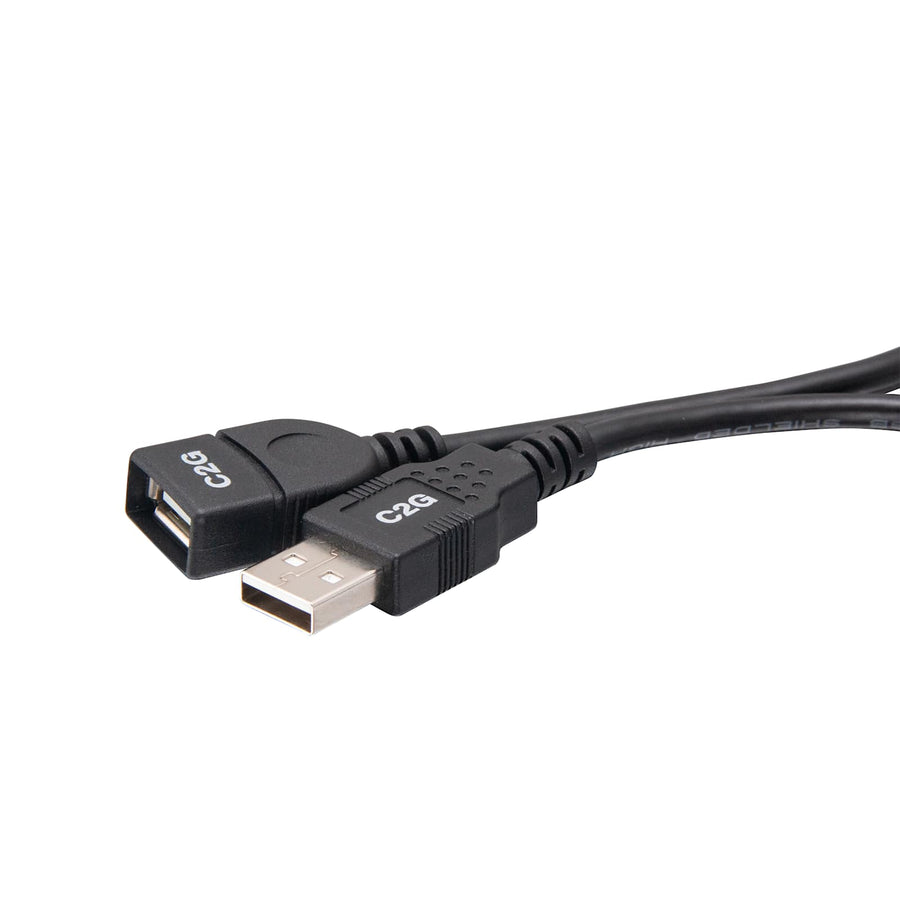

3ft (0.9m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable
USB 2.0 A male to A female extension cable, 3 ft (0.9 m) length, TAA-compliant and shielded
The C2G68011 is a 3ft (0.9 m) TAA-compliant USB 2.0 A male to A female extension cable designed to increase the reach of your existing USB cabling. This bidirectional cable utilizes twisted pair construction to reduce crosstalk and features foil and braid shielding to protect signal integrity by reducing EMI/RFI interference. It is compatible with both PC and Mac systems, supporting data transfer rates up to 480 MBPS. The cable features a black PVC jacket with a diameter of 0.19 in (4.7 mm) and a bend radius of 1.85 in (47 mm). For installations requiring longer distances or high-powered devices, consider utilizing Superbooster® products. This cable is not intended for use when the total extended single length exceeds 16 feet. The 24 AWG wire construction ensures reliable performance for a variety of USB-A peripheral applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | 23° - 113°F (-5° - 45°C) |
| Shipping Weight | 0.09 lbs (0 kg) |
| Signal Transmission | Bidirectional |
All other specifications 16
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 149 Fahrenheit (65 Celsius) |
| Storage Temperature Min | -40 Fahrenheit (-40 Celsius) |
| Wire Gauge | 24 |
| Cable Type | ExtensionUSB |
| Color | Black |
| Connector 1 | (1) USB-A Male |
| Connector 2 | (1) USB-A Female |
| Product Type | Cable |
| TAA Compliant | Yes |
| Technology Specifications | USB 2.0 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Superbooster® USB 1.1 Over Cat5 Extender Dongle Kit (TAA Compliant)
CG29341$151.99
HDMI® HDBaseT + USB-B to A and RS232 Over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz (TAA compliant)
C2G31030$747.99
Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
C2G54262$835.99
Superbooster® 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54269$752.99
Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
6ft (1.8m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable
C2G68012$20.99
10ft (3.1m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable
C2G68013$23.99
16.4ft (5m) USB 3.0 USB-A Male to USB-A Female Active Extension Cable
CG39939$77.99
Questions about this part
What is the maximum total length I can use with this extension?
This cable is not intended for use when the total combined length of the extension and the existing cable exceeds 16 feet.
Does this cable support high-power USB devices?
For high-powered devices or lengths exceeding the standard limit, you should consider using a Superbooster® USB extension product instead of this cable.
Is the C2G68011 TAA compliant for government contracts?
Yes, this 3ft (0.9 m) USB 2.0 extension cable is TAA-compliant and meets NDAA 889, REACH, and RoHS standards.
What is the data transfer speed of this USB extension?
The C2G68011 supports USB 2.0 technology with a data transfer rate of 480 MBPS.
What is the difference between this and the C2G68013?
This SKU is the 3 ft (0.9 m) version, whereas the C2G68013 is a 10 ft (3.1 m) variant of the same USB 2.0 A to A extension series.
