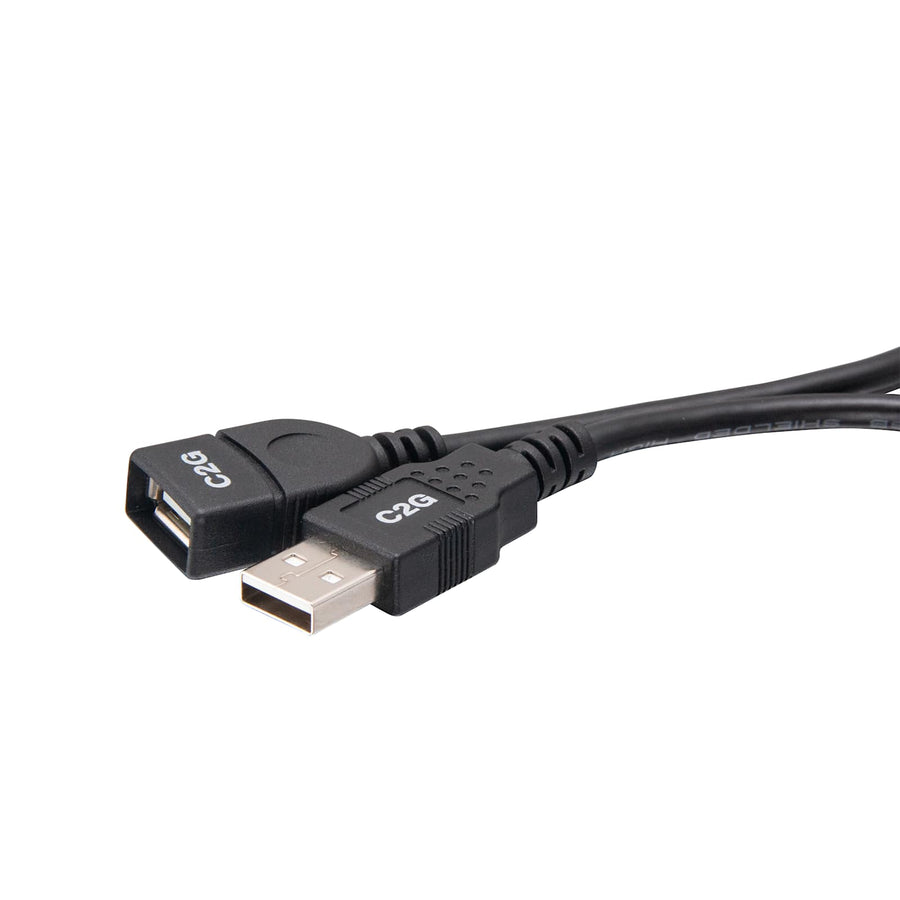

10ft (3.1m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable
10 ft (3.1m) USB 2.0 A male to A female extension cable, 480 Mbps data transfer, TAA compliant
The C2G68013 is a 10 ft (3.1 m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable designed to increase the reach of your existing USB A/B cables or peripherals. This cable supports bidirectional signal transmission with a data transfer rate of 480 MBPS. To ensure high-speed, error-free performance, the cable features twisted pair construction to reduce crosstalk and is shielded with foil and braid to protect against EMI/RFI interference. This USB extension cable is built with a 0.19 in (4.7 mm) diameter PVC jacket and uses 24 AWG wire. It is fully compatible with both PC and Mac systems. Note that this cable is not intended for use beyond a total extended single length of 16 feet. For runs exceeding this length or for connecting high-powered devices, consider using a Superbooster® USB extension product or a USB 3.0 active extension cable like the CG39939.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | 23° - 113°F (-5° - 45°C) |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 16
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 149 Fahrenheit (65 Celsius) |
| Storage Temperature Min | -40 Fahrenheit (-40 Celsius) |
| Wire Gauge | 24 |
| Cable Type | ExtensionUSB |
| Color | Black |
| Connector 1 | (1) USB-A Male |
| Connector 2 | (1) USB-A Female |
| Product Type | Cable |
| TAA Compliant | Yes |
| Technology Specifications | USB 2.0 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Superbooster® USB 1.1 Over Cat5 Extender Dongle Kit (TAA Compliant)
CG29341$151.99
HDMI® HDBaseT + USB-B to A and RS232 Over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz (TAA compliant)
C2G31030$747.99
Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
C2G54262$835.99
Superbooster® 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54269$752.99
Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
6ft (1.8m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable
C2G68012$20.99
3ft (0.9m) TAA-Compliant USB 2.0 A Male to A Female Extension Cable
C2G68011$17.99
16.4ft (5m) USB 3.0 USB-A Male to USB-A Female Active Extension Cable
CG39939$77.99
Questions about this part
What is the maximum total length allowed for this extension cable?
This cable is not intended for use beyond a total extended single length of 16 feet. For longer distances, use a Superbooster® product.
Is the C2G68013 TAA compliant for government projects?
Yes, this 10 ft (3.1m) cable is TAA compliant and meets NDAA 889 requirements.
Can I use this cable for high-power USB devices?
For high-powered devices or longer cable runs, it is recommended to use a Superbooster® USB extension product instead of this standard cable.
What is the data transfer speed of this USB extension?
This USB 2.0 cable supports a data transfer rate of 480 MBPS with bidirectional signal transmission.
How does this cable handle interference in sensitive environments?
The cable utilizes twisted pair construction and foil and braid shielding to reduce crosstalk and EMI/RFI interference.
