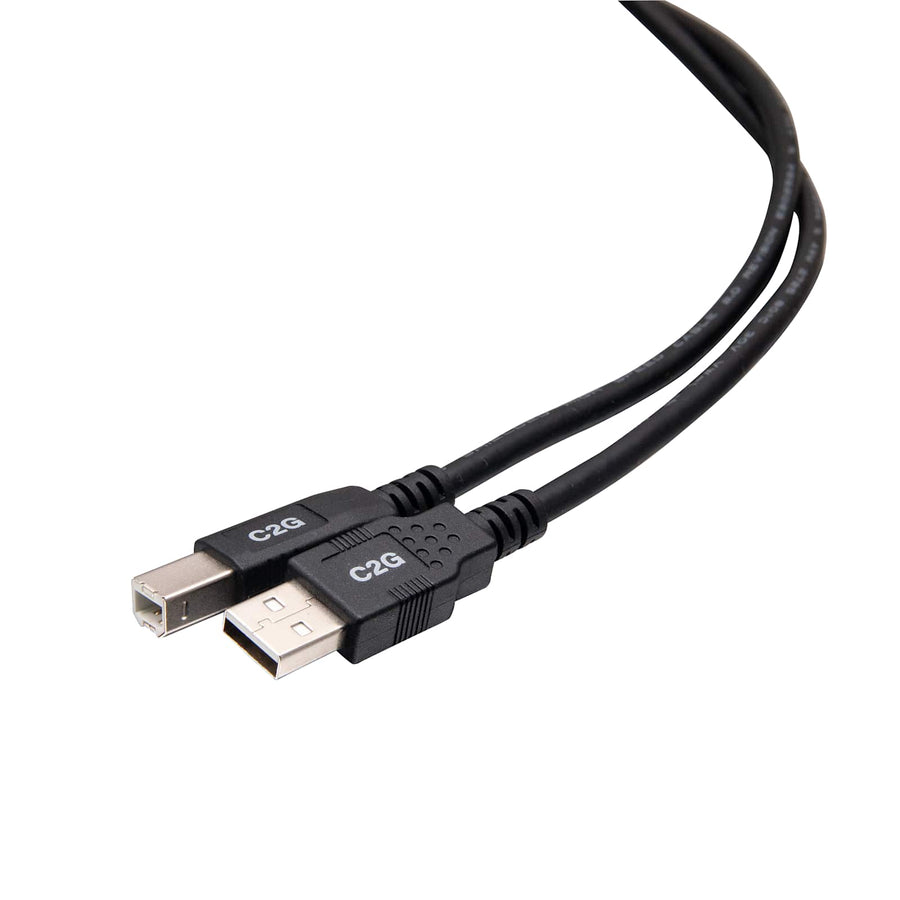

6ft (1.8m) TAA-Compliant USB 2.0 A/B Cable
6ft USB 2.0 A to B cable for connecting host devices to peripherals, TAA-compliant for regulated environments
The C2G68001 is a 6 ft (1.8 m) TAA-compliant USB 2.0 A/B cable designed for reliable connectivity between a host computer and various USB-B peripherals. This cable is engineered for professional AV and IT environments, providing a stable link for hardware such as printers, scanners, and USB hubs. It supports bidirectional signal transmission with data transfer rates reaching up to 480 MBPS. To ensure clean signal integrity in high-interference settings, the cable features twisted-pair construction and is shielded with both foil and braid to minimize EMI/RFI interference. The 0.19 in (4.7 mm) diameter cable is constructed with a PVC jacket and utilizes 24 AWG wire. This TAA-compliant solution meets U.S. Government procurement requirements, making it suitable for federal, enterprise, and other highly regulated installations. This 6 ft model is part of a larger series available in several other lengths, including 3 ft (0.9m), 10 ft (3.1m), and 15 ft (4.6m) options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 500 mA |
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | 23° - 113°F (-5° - 45°C) |
| Shipping Weight | 0.15 lbs (0.1 kg) |
All other specifications 17
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 149 Fahrenheit (65 Celsius) |
| Storage Temperature Min | -40 Fahrenheit (-40 Celsius) |
| Wire Gauge | 24 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male |
| Connector 2 | (1) USB-B Male |
| Product Type | Cable |
| TAA Compliant | Yes |
| Technology Specifications | USB 2.0 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
10ft (3.1m) TAA-Compliant USB 2.0 A/B Cable
C2G68002$23.99
Superbooster® USB 1.1 Over Cat5 Extender Dongle Kit (TAA Compliant)
CG29341$151.99

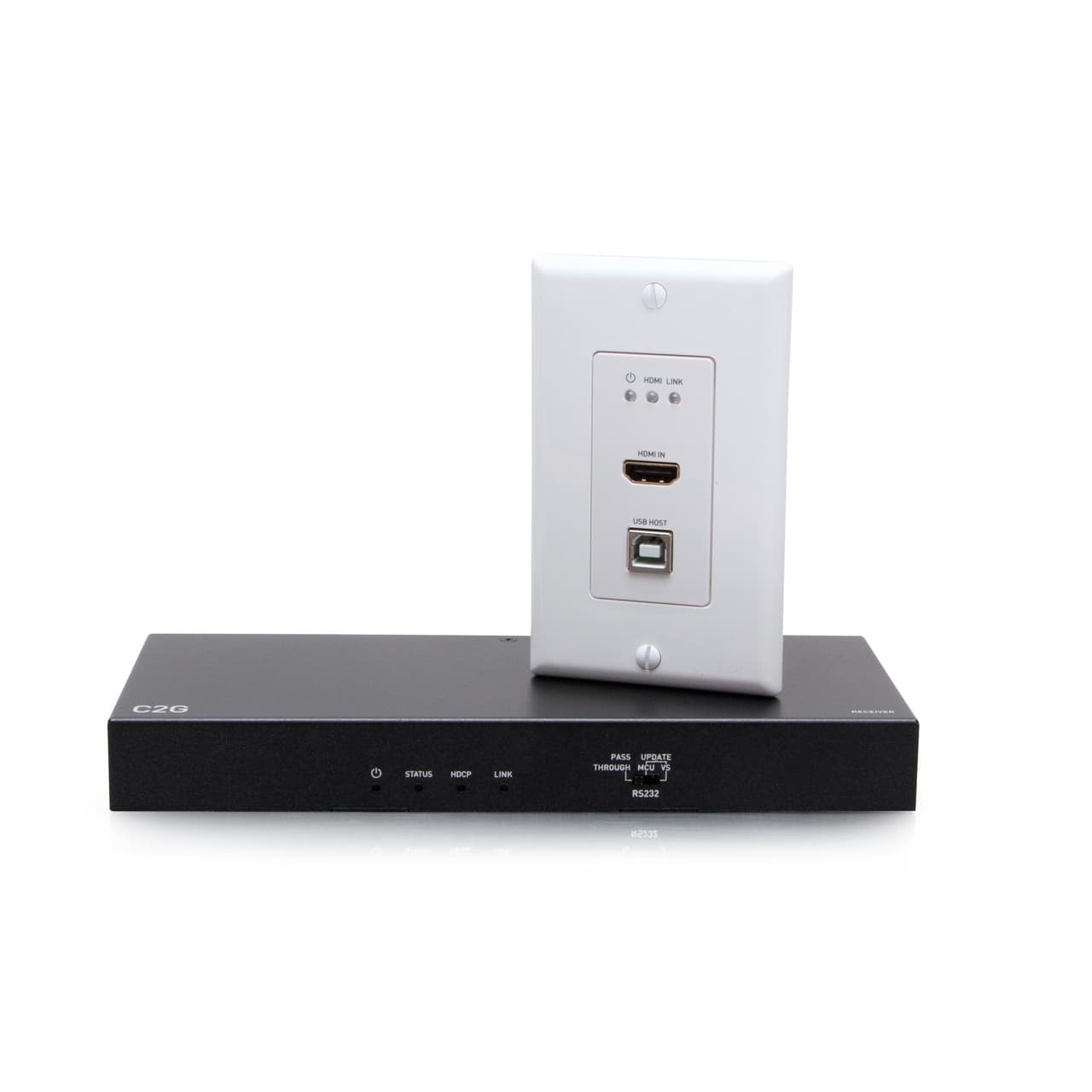

HDMI® HDBaseT + USB-B to A and RS232 Over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz (TAA compliant)
C2G31030$747.99

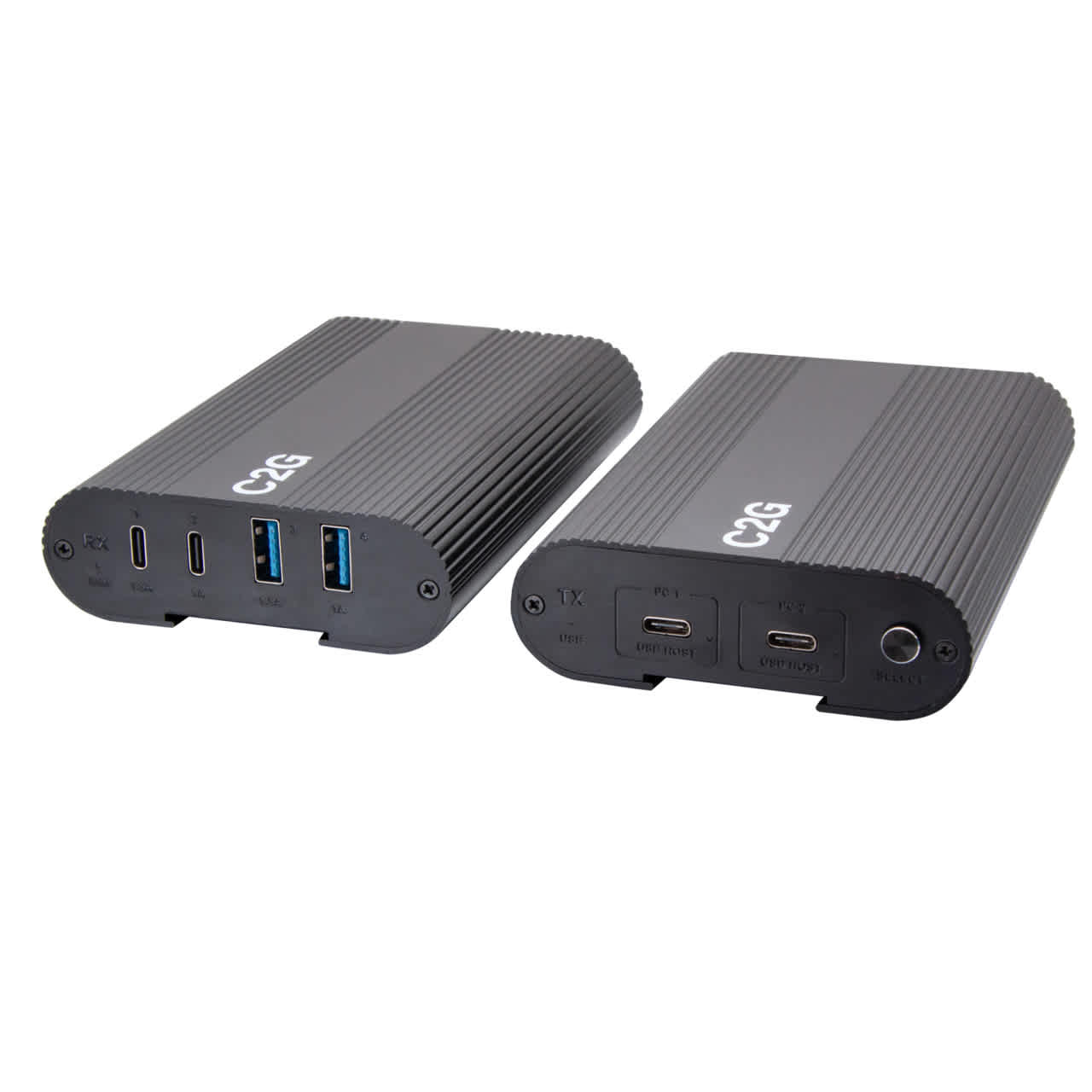

Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
C2G54262$835.99
Superbooster® 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54269$752.99

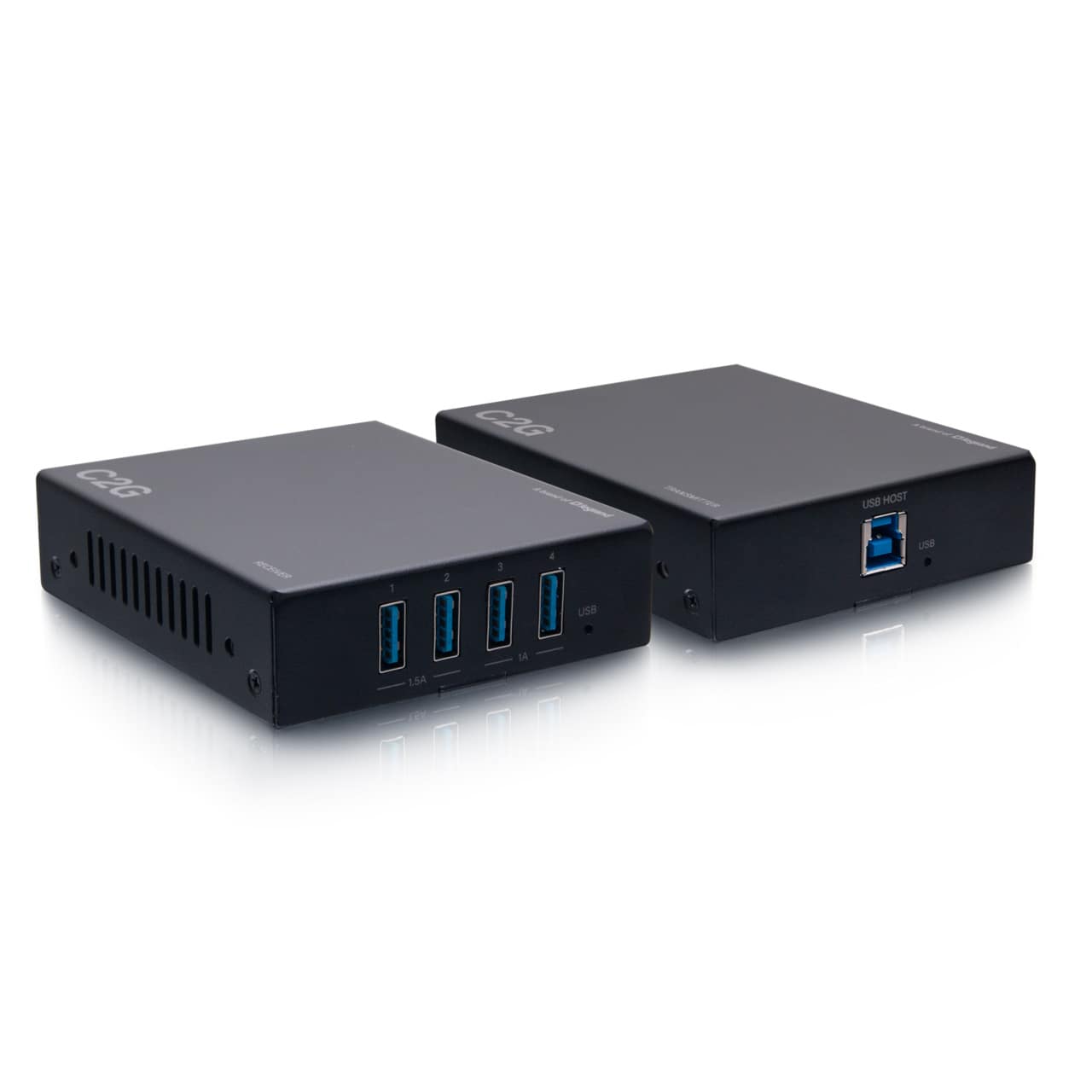

Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
15ft (4.6m) TAA-Compliant USB 2.0 A/B Cable
C2G68003$33.99
16.4ft (5m) USB 3.0 USB-A Male to USB-A Female Active Extension Cable
CG39939$77.99
Questions about this part
What devices can I connect with the C2G68001?
This cable connects a host computer or device to USB-B peripherals, including printers, scanners, and USB hubs.
Is this cable suitable for government contracts?
Yes, the C2G68001 is TAA-compliant, meeting U.S. Government procurement requirements for regulated environments.
What is the maximum data transfer speed for this cable?
The cable supports USB 2.0 technology with data transfer rates of up to 480 MBPS.
Are there different lengths available for this USB 2.0 A/B cable?
Yes, this series includes 3 ft (0.9m), 10 ft (3.1m), and 15 ft (4.6m) versions to accommodate different installation distances.
How does this cable handle electromagnetic interference?
The cable utilizes both foil and braid shielding along with twisted-pair construction to reduce EMI/RFI interference and crosstalk.
