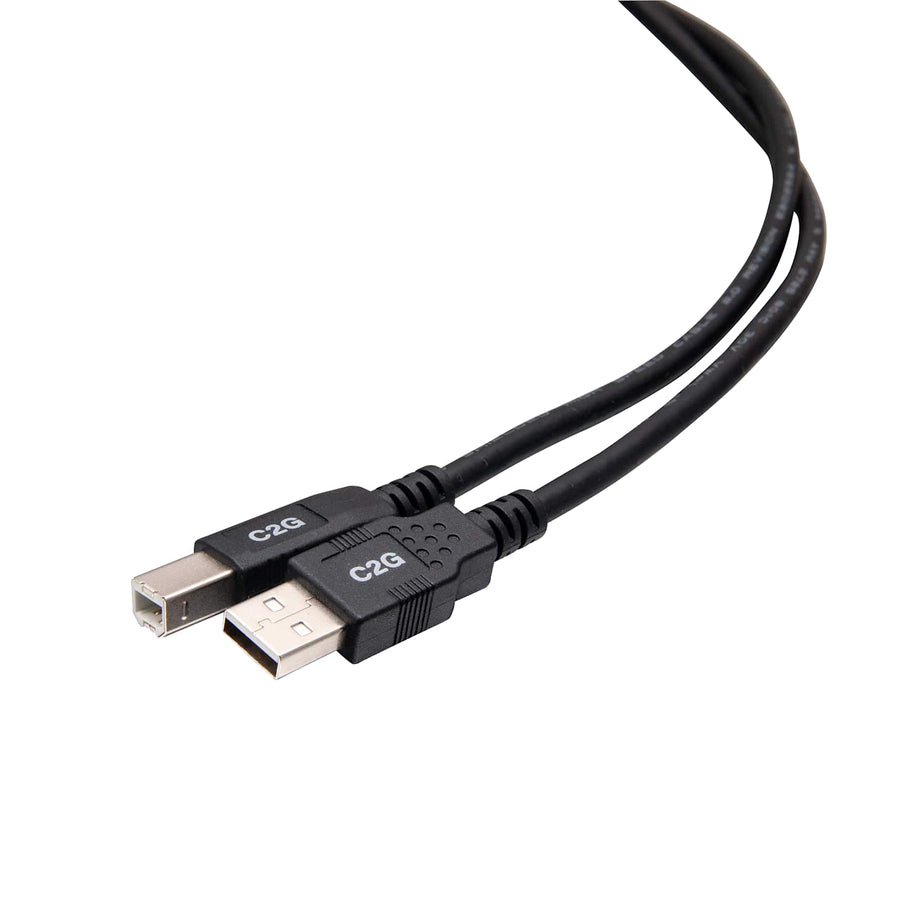

10ft (3.1m) TAA-Compliant USB 2.0 A/B Cable
10ft (3.1m) USB 2.0 A to B cable for connecting host devices to peripherals like printers or scanners
The C2G68002 is a 10ft (3.1m) USB 2.0 A/B cable designed to provide a dependable connection between a computer and USB-B peripherals. This cable is ideal for professional environments requiring stable data transfer to devices such as printers, scanners, and USB hubs. It supports bidirectional signal transmission with data transfer rates up to 480 Mbps. To ensure clean signal transmission in integrated AV or IT setups, the cable features both foil and braid shielding to minimize EMI/RFI interference, alongside twisted-pair construction to reduce crosstalk. This TAA-compliant cable meets U.S. Government procurement requirements, making it suitable for enterprise, government, and highly regulated project environments. The cable features a black PVC jacket and a 24 AWG wire gauge, providing a durable solution for connecting legacy USB-B equipment to host PC or Mac systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 500 mA |
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | 23° - 113°F (-5° - 45°C) |
| Shipping Weight | 0.23 lbs (0.1 kg) |
All other specifications 17
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 149 Fahrenheit (65 Celsius) |
| Storage Temperature Min | -40 Fahrenheit (-40 Celsius) |
| Wire Gauge | 24 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male |
| Connector 2 | (1) USB-B Male |
| Product Type | Cable |
| TAA Compliant | Yes |
| Technology Specifications | USB 2.0 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Superbooster® USB 1.1 Over Cat5 Extender Dongle Kit (TAA Compliant)
CG29341$151.99
HDMI® HDBaseT + USB-B to A and RS232 Over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz (TAA compliant)
C2G31030$747.99
Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
C2G54262$835.99
Superbooster® 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54269$752.99
Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
15ft (4.6m) TAA-Compliant USB 2.0 A/B Cable
C2G68003$33.99
16.4ft (5m) USB 3.0 USB-A Male to USB-A Female Active Extension Cable
CG39939$77.99
Snap-In USB A/A Female Keystone Insert Module - White
CG28748$18.99
Questions about this part
What devices can I connect with the C2G68002?
This USB 2.0 A to B cable connects host computers or Mac systems to USB-B peripherals, including printers, scanners, and USB hubs.
Is this cable suitable for government contracts?
Yes, this is a TAA-compliant cable designed to meet U.S. Government procurement requirements and other federally regulated project needs.
What is the maximum data transfer speed?
The C2G68002 supports USB 2.0 data transfer speeds up to 480 Mbps.
How does the shielding work to prevent interference?
The cable uses both foil and braid shielding combined with twisted-pair construction to reduce crosstalk and minimize EMI/RFI interference.
Are there different lengths available for this cable series?
Yes, this series includes other lengths such as the 3ft (C2G68000), 6ft (C2G68001), and 15ft (C2G68003) versions.
