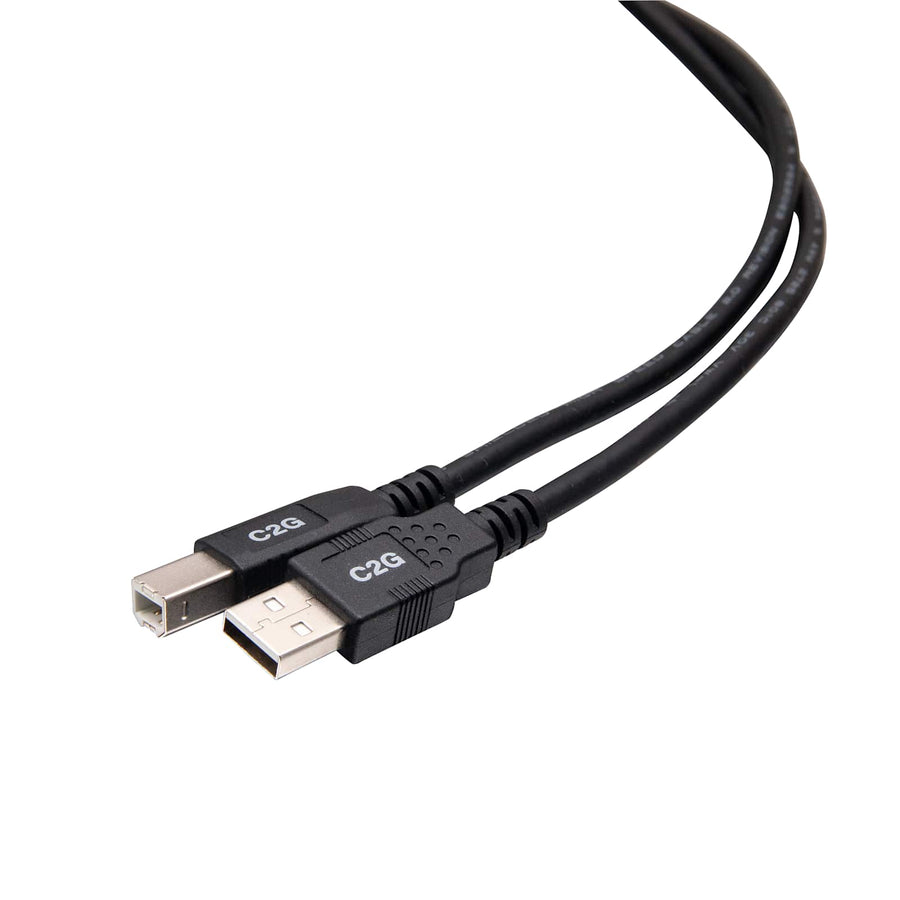

15ft (4.6m) TAA-Compliant USB 2.0 A/B Cable
15ft USB 2.0 A-to-B cable for connecting computers to peripherals like printers and scanners, 480 Mbps speed, TAA compliant
The C2G68003 is a 15 ft (4.6 m) USB 2.0 A/B cable designed to provide a stable, bidirectional connection between host devices and USB-B peripherals. This cable is engineered for professional AV and IT environments, making it a reliable choice for connecting computers to printers, scanners, USB hubs, and other legacy USB-B equipment. It supports data transfer rates of up to 480 MBPS, ensuring consistent performance for everyday installations. To maintain signal integrity in electrically noisy environments, the cable features twisted-pair construction and is shielded with both foil and braid to minimize EMI/RFI interference. The cable features a 0.2 in (5 mm) diameter with a PVC jacket and a 22 wire gauge. It is TAA compliant, meeting the specific procurement requirements for government, enterprise, and other highly regulated federal projects. For different length requirements, this cable is also available in 3ft (C2G68000), 6ft (C2G68001), and 10ft (C2G68002) versions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 500 mA |
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.2 in (5 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | 23° - 113°F (-5° - 45°C) |
| Shipping Weight | 0.38 lbs (0.2 kg) |
All other specifications 17
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 149 Fahrenheit (65 Celsius) |
| Storage Temperature Min | -40 Fahrenheit (-40 Celsius) |
| Wire Gauge | 22 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male |
| Connector 2 | (1) USB-B Male |
| Product Type | Cable |
| TAA Compliant | Yes |
| Technology Specifications | USB 2.0 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
