6ft (1.8m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
6ft Cat6a snagless shielded STP Ethernet patch cable, black, for high-speed 10GBase-T network connections
The C2G CG00711 is a 6ft (1.8 m) Cat6a snagless shielded STP Ethernet patch cable designed for high-performance networking environments. This black cable is engineered for use with 10GBase-T ports and equipment, providing a reliable connection for network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. By utilizing shielded STP construction, it protects high-speed 10 Gigabit network connections from electromagnetic interference and noise. The cable features stranded bare copper conductors with a 26AWG wire gauge and FMPE (Foam Polyethylene) insulation to help maintain twist-spacing and minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to ensure signal integrity throughout the line up to the termination point. This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, making it suitable for bandwidth-intensive voice, data, and video distribution applications. The snagless, booted RJ-45 male connectors include PVC hoods for added protection during installation and handling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007111 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it

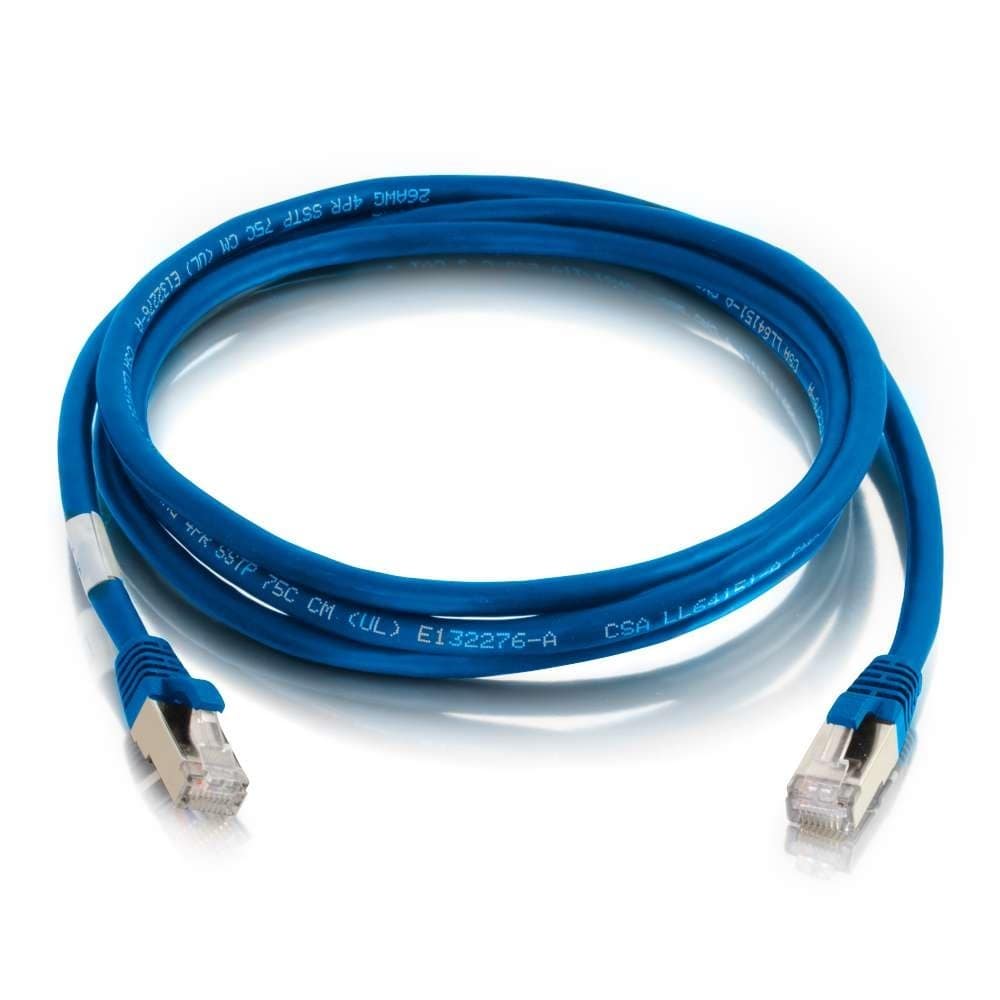

6ft (1.8m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00677$16.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum bandwidth application for the CG00711?
The CG00711 is designed for bandwidth-intensive applications, specifically protecting 10GBase-T high-speed 10 Gigabit network connections.
Will this cable work with my network switch or patch panel?
Yes, this Cat6a patch cable is intended for use with various networking equipment including switches, routers, hubs, and patch panels.
What is the wiring scheme for this C2G patch cable?
The CG00711 uses a 568B wiring scheme and features stranded SSTP cable construction.
Is the CG00711 compliant with industrial standards?
This cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a component requirements.
Does the CG00711 come in other colors?
Yes, this series is available in a variety of colors to facilitate color-coding within your network installation.
