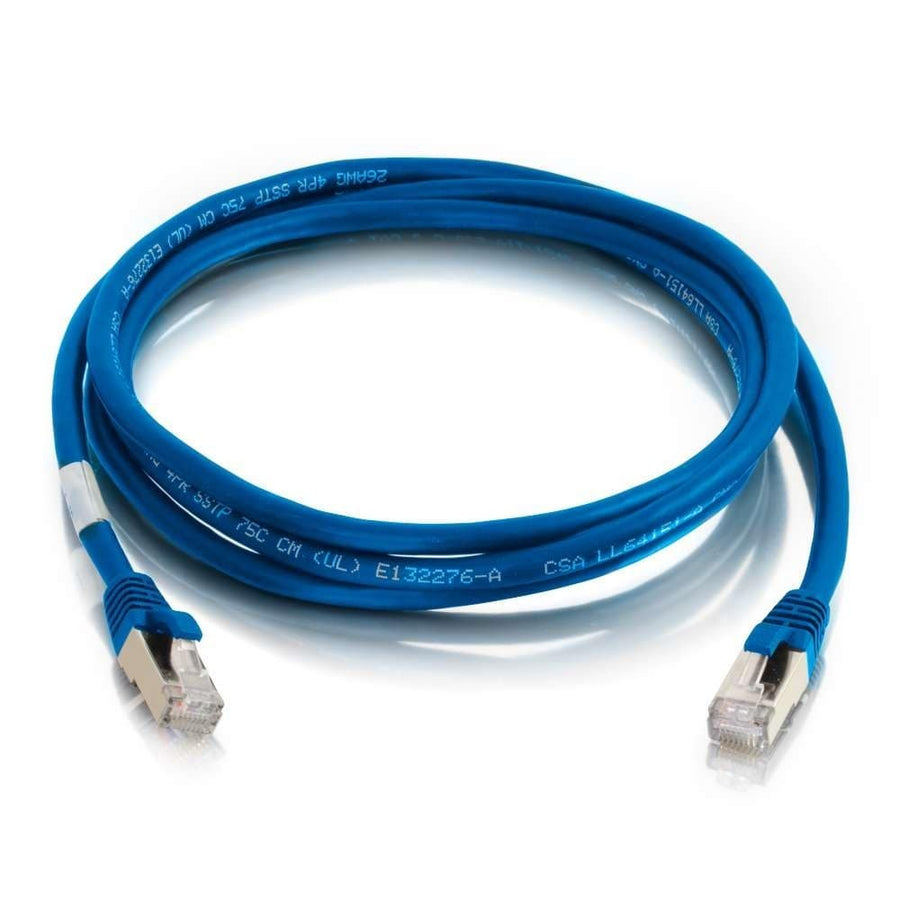

6ft (1.8m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
6ft (1.8m) Cat6a shielded STP patch cable in blue, designed for 10GBase-T network equipment and high-bandwidth applications
The C2G CG00677 is a 6ft (1.8m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable in blue. Engineered for 10GBase-T ports and equipment, this cable is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It is designed to protect high-speed 10 Gigabit network connections from noise and electromagnetic interference. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, making it ideal for bandwidth-intensive voice, data, and video distribution. The construction features 26AWG bare copper stranded conductors and FMPE (Foam Polyethylene) insulation to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing up to the termination point. The cable utilizes a snagless, booted RJ-45 male to RJ-45 male connector configuration with a PVC jacket. This SKU is part of a larger series with various lengths and colors available.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006770 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Keystone Rack Mount Patch Panel
WP24RM$39.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will the CG00677 work with my 10GBase-T equipment?
Yes, this Cat6a cable is designed for use with 10GBase-T ports and equipment including switches, routers, and network adapters.
Is this cable suitable for high-bandwidth video distribution?
Yes, this shielded STP cable handles bandwidth-intensive applications and helps reduce impedance and structural return loss (SRL).
What is the wiring scheme for this patch cable?
The CG00677 uses the 568B wiring scheme for its RJ-45 terminations.
Does this cable support NDAA compliance?
Yes, the CG00677 is listed with NDAA 889 compliance.
Can I use this with a patch panel?
Yes, this cable is suitable for connecting equipment to patch panels, such as the WP24RM 24-Port Keystone Rack Mount Patch Panel.
