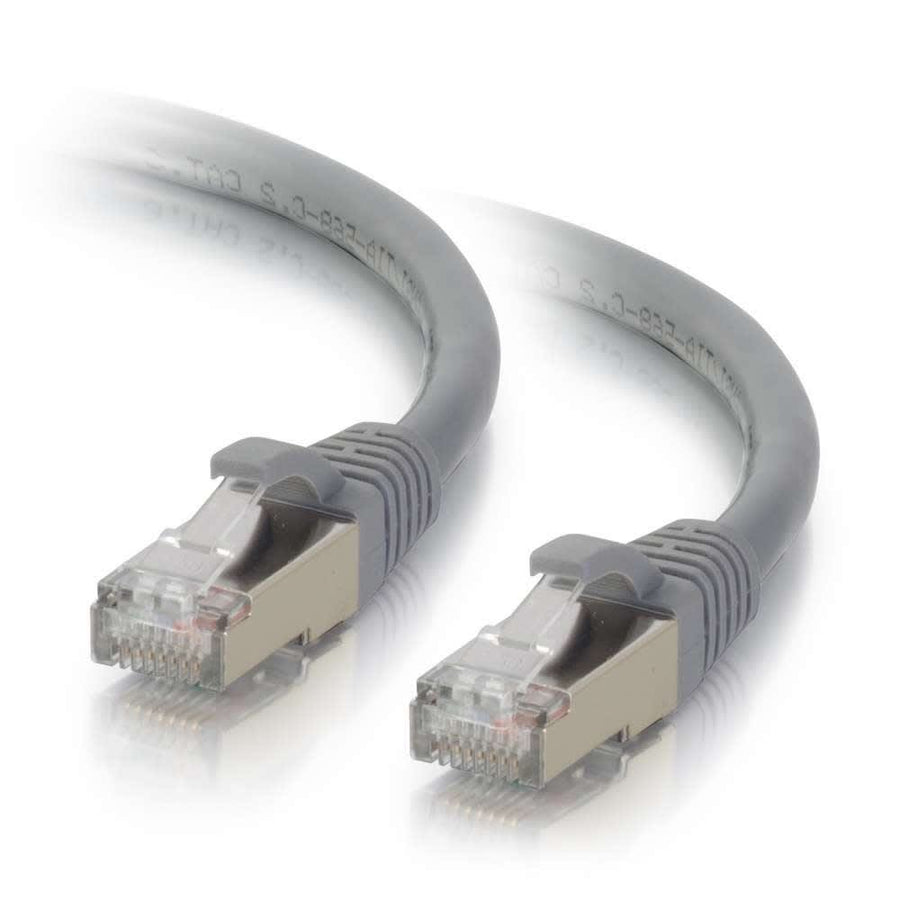

6ft (1.8m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Gray
6ft (1.8m) shielded Cat6 STP patch cable with snagless boots and T568B wiring in gray
The C2G CG00779 is a 6 ft (1.8 m) Cat6 STP shielded Ethernet patch cable designed to protect high-speed networks from electromagnetic interference and noise. This snagless cable is built for bandwidth-intensive voice, data, and video distribution applications, providing significantly reduced impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance in demanding environments. The construction features 26AWG bare copper conductors with a stranded configuration and FM-PE insulation. Each pair is bonded together to maintain twist-spacing throughout the line, even up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. For ease of installation and identification, each cable includes an individual length label. This gray cable is housed in a PVC jacket and features PVC connector hoods with snagless, booted RJ-45 male connectors. The wiring follows the T568B scheme for standard compatibility.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | STP |
| Shipping Weight | 0.19 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007791 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video and data applications?
Yes, this STP cable is designed to handle bandwidth-intensive applications by drastically reducing impedance and structural return loss (SRL).
What is the wiring standard for the C2G CG00779?
The C2G CG00779 uses the T568B wiring scheme and features 26AWG bare copper stranded conductors.
Does this cable provide protection against electromagnetic interference?
Yes, the STP (Shielded Twisted Pair) design protects high-speed networks by minimizing noise and electromagnetic interference.
Are the connectors designed to prevent damage to the plug tabs?
Yes, the RJ-45 male connectors feature snagless, booted designs to protect the locking tabs during installation and handling.
What certifications does this Cat6 cable meet?
This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements and is CE and RoHS compliant.
