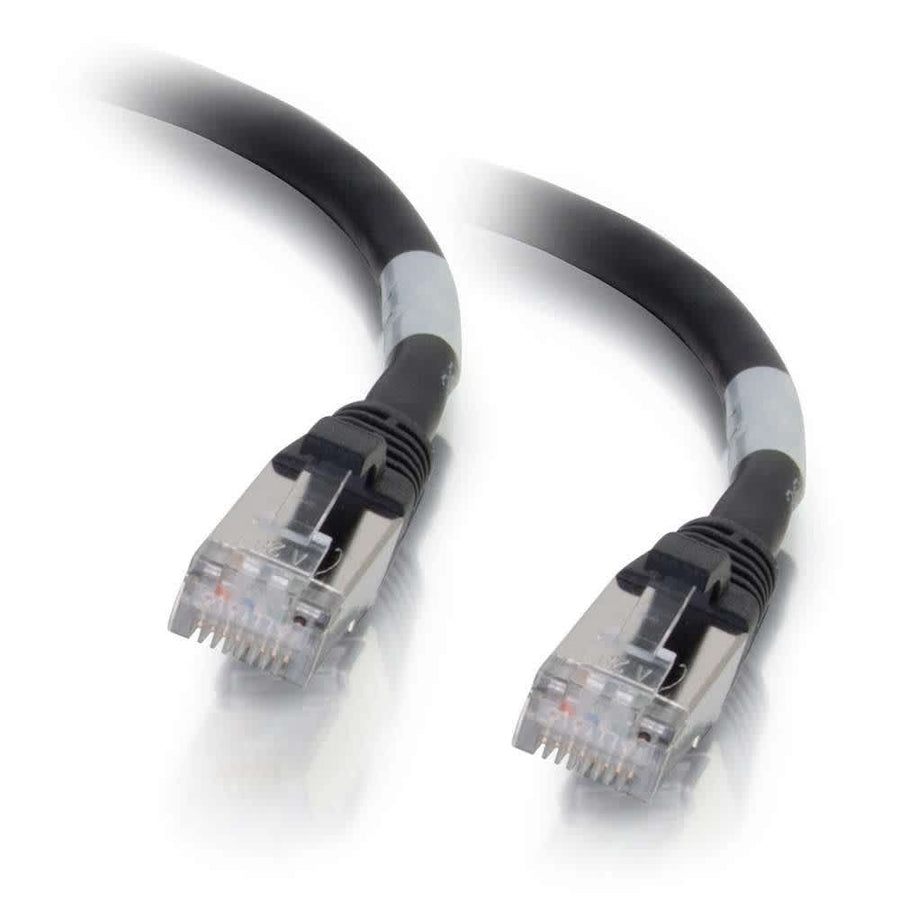

5ft (1.5m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
5ft (1.5m) Cat6a Snagless Shielded STP Ethernet Patch Cable, Black, for 10GBase-T high-speed network applications
The C2G CG00710 is a 5 ft (1.5 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed for high-speed 10GBase-T applications. This black patch cable is built to protect network connections from electromagnetic interference and noise, making it suitable for use with switches, routers, hubs, network adapters, and patch panels. The cable features stranded bare copper conductors with a 26AWG wire gauge and FMPE (Foam Polyethylene) insulation. To ensure performance in bandwidth-intensive voice, data, and video distribution, the cable is designed to reduce structural return loss (SRL) and impedance. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point, which helps minimize Near-End Crosstalk (NEXT). This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The jacket is made of PVC and includes snagless, booted RJ-45 male connectors with PVC hoods.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007104 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it

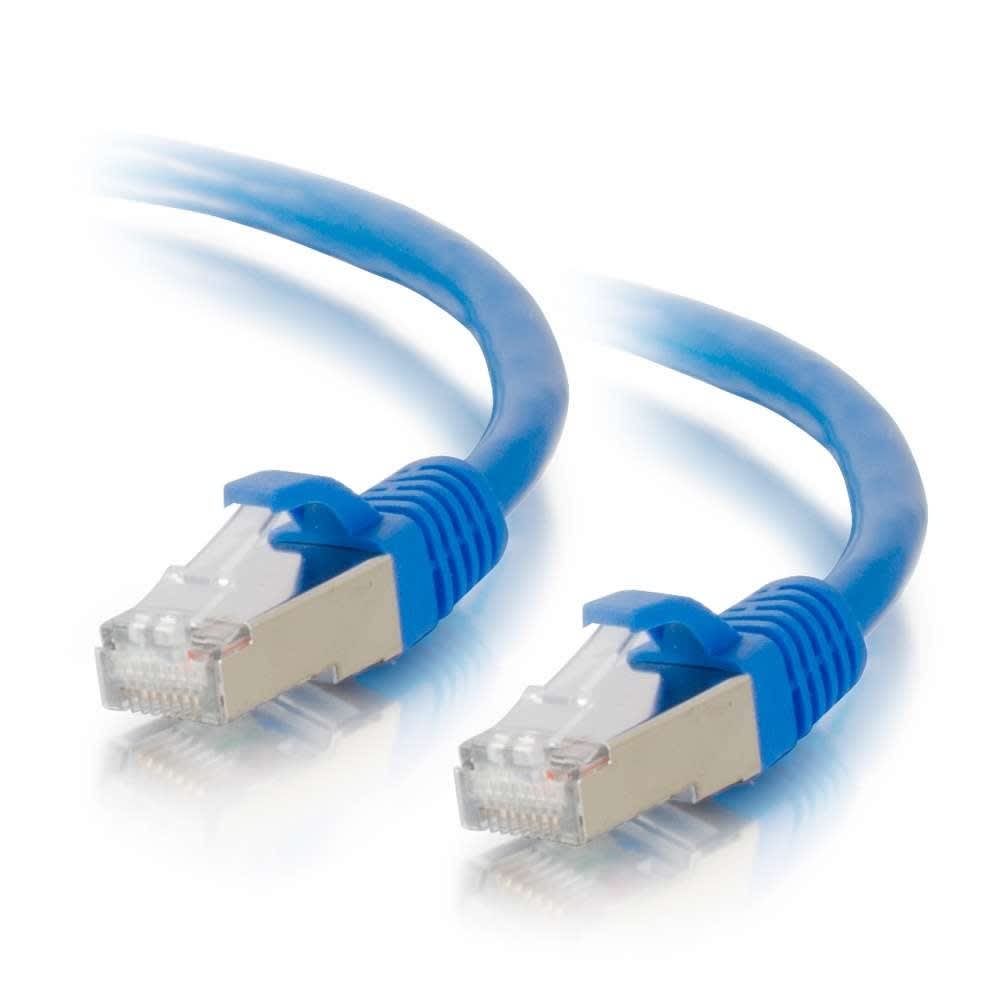

5ft (1.5m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00676$15.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What applications is the CG00710 best for?
This Cat6a cable is designed for 10GBase-T equipment, including routers, switches, hubs, network adapters, and patch panels.
Does this cable provide EMI protection?
Yes, the Shielded STP (SSTP) construction is designed to protect high-speed 10 Gigabit network connections from electromagnetic interference and noise.
Is this cable suitable for high-bandwidth video distribution?
Yes, the design reduces impedance and structural return loss (SRL) to support bandwidth-intensive voice, data, and video applications.
What is the wiring scheme for this patch cable?
The CG00710 utilizes the 568B wiring scheme and features 26AWG stranded copper conductors.
What documentation is available for submittals?
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) for technical matrix information regarding these cables.
