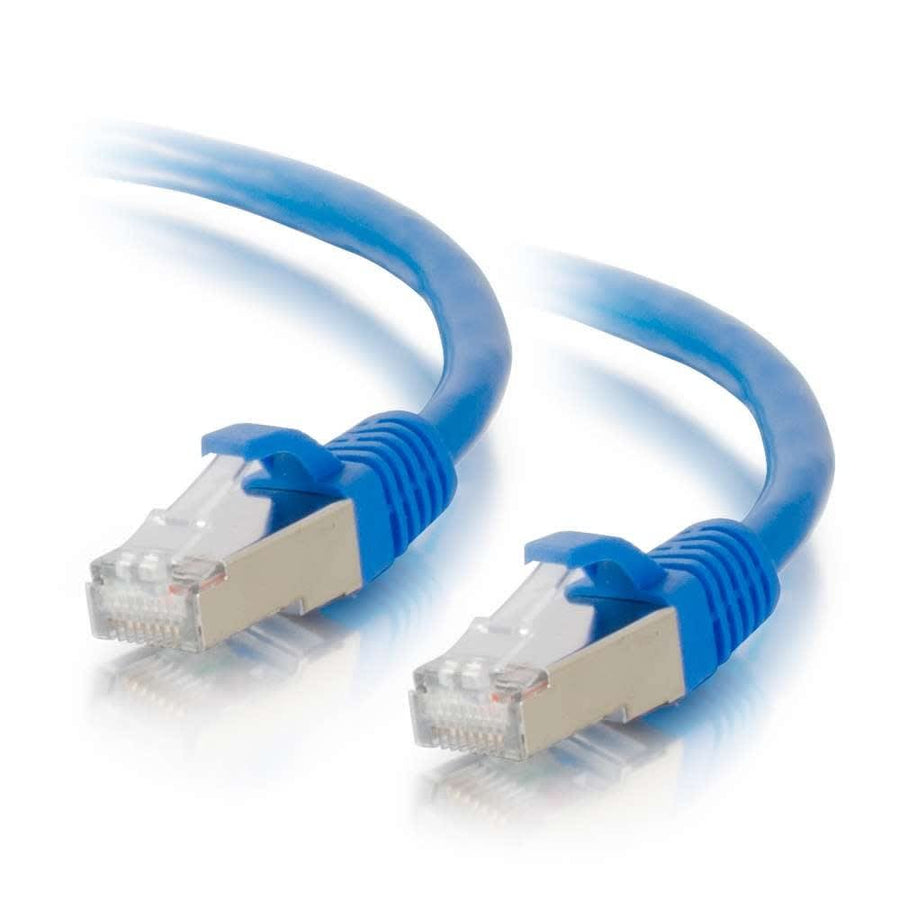

5ft (1.5m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
5ft Cat6a snagless shielded STP patch cable in blue, designed for 10GBase-T high-speed network applications
The C2G CG00676 is a 5ft (1.5m) Cat6a snagless shielded STP Ethernet patch cable designed to support high-bandwidth applications. This blue cable is built for use with 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, and patch panels. By utilizing a shielded STP (SSTP) construction, it protects high-speed 10 Gigabit network connections from electromagnetic interference and noise. The cable features 26AWG bare copper stranded conductors and FMPE (Foam Polyethylene) insulation to help maintain twist-spacing through the line to the termination point. This design minimizes Near-End Crosstalk (NEXT) and reduces both impedance and structural return loss (SRL). Fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, this cable is ideal for voice, data, and video distribution. It features a snagless, booted connector type with PVC hoods and is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006763 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will the CG00676 support 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment to handle high-speed 10 Gigabit network connections.
What is the shielding type for this Cat6a cable?
This is a shielded STP (SSTP) cable designed to protect against noise and electromagnetic interference in bandwidth-intensive applications.
Does this cable meet TIA/EIA standards?
Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
What is the operating temperature range for the CG00676?
The cable is rated for operation in temperatures ranging from -4°F (-20°C) to 176°F (80°C).
What tools are required for installation?
The cable features snagless, booted RJ-45 male connectors, which are designed for standard insertion into network hardware.
