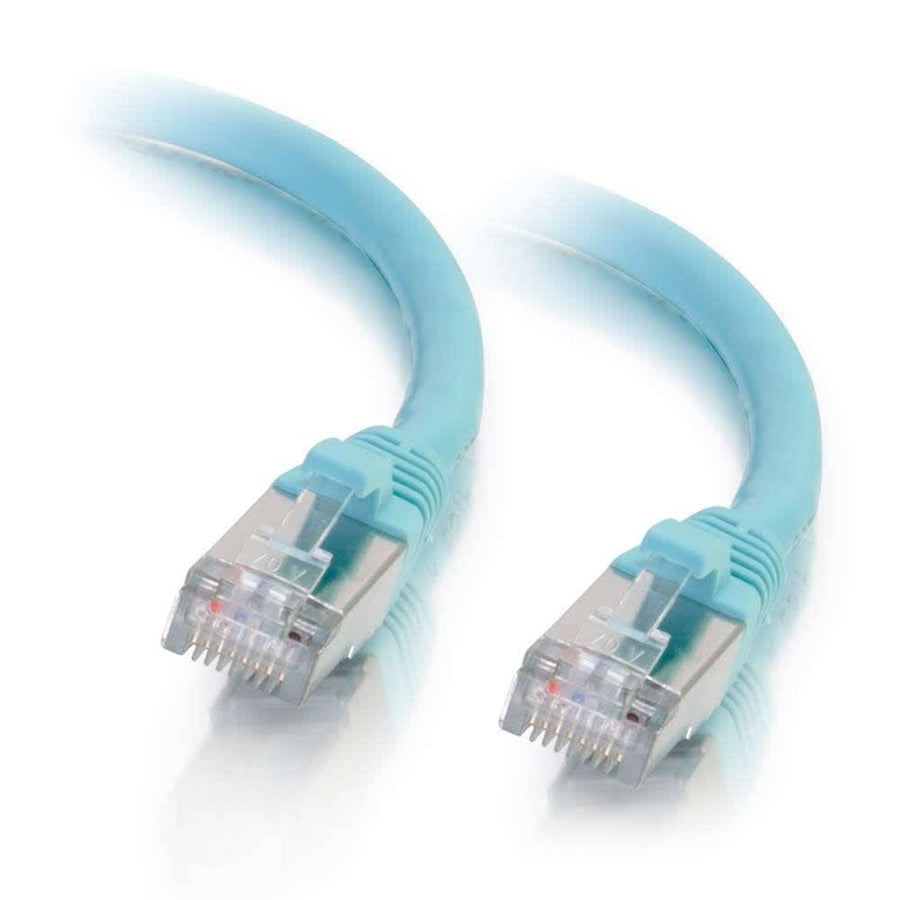

5ft (1.5m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
5ft Cat6a Snagless Shielded STP Ethernet cable, Aqua finish, for 10GBase-T high-speed networking
The C2G CG00744 is a 5ft (1.5m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable in Aqua, engineered to support high-speed 10GBase-T equipment. This cable is designed for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels, providing a reliable connection for bandwidth-intensive applications. The stranded SSTP construction helps reduce impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing from the connector to the termination point. The cable features 26AWG bare copper conductors and is insulated with FMPE (Foam Polyethylene). This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements and includes a snagless, booted RJ-45 male to RJ-45 male connector configuration. The jacket is made of PVC and is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C). This SKU is part of a series available in multiple lengths and colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007449 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
What is the maximum data rate for the C2G CG00744?
This Cat6a cable is designed for 10GBase-T ports and high-speed networking equipment, supporting bandwidth-intensive applications.
Is the C2G CG00744 suitable for environments with high electromagnetic interference?
Yes, the Shielded STP (SSTP) design is intended to protect 10 Gigabit network connections from noise and electromagnetic interference.
What wiring scheme does this patch cable use?
The C2G CG00744 utilizes the 568B wiring scheme.
Can I use this cable with network switches or patch panels?
Yes, it is ideal for use with switches, routers, hubs, and patch panels to support 10GBase-T connectivity.
What is the operating temperature range for this cable?
The cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
