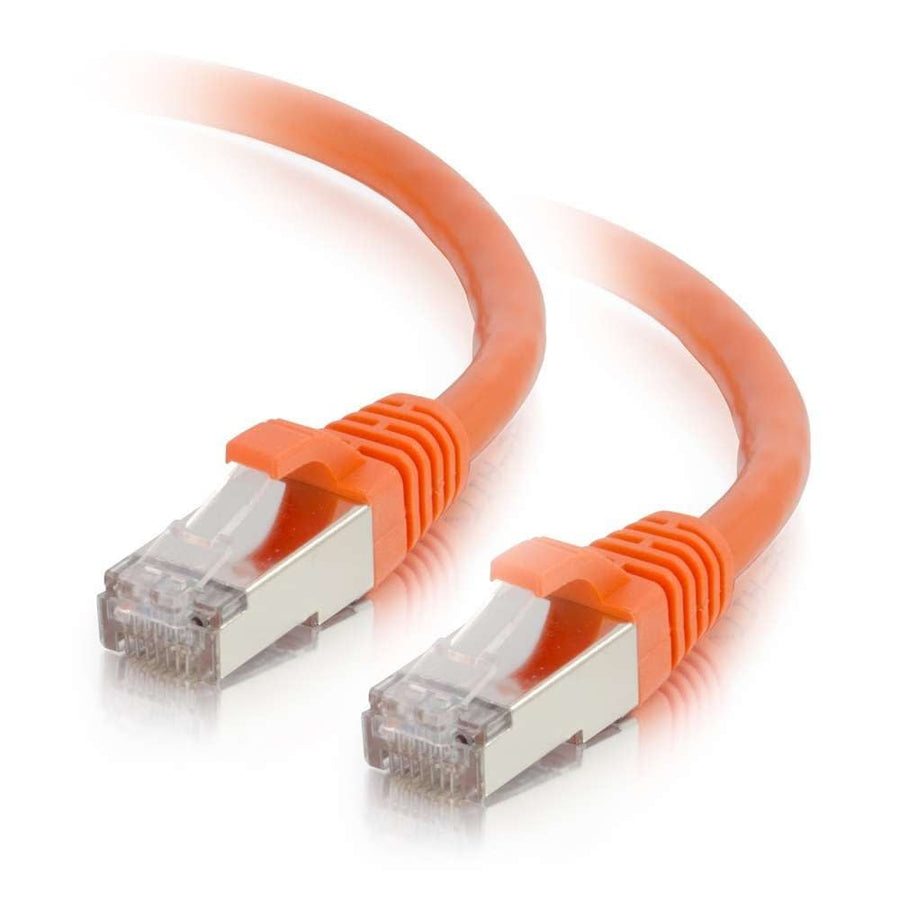

5ft (1.5m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Orange
5ft Cat6 shielded STP patch cable in orange, featuring snagless boots and T568B wiring for high-speed, noise-resistant networking
The C2G CG00880 is a 5ft (1.5m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in orange, engineered to protect high-speed networks from electromagnetic interference and noise. This shielded (STP) cable is designed for demanding voice, data, and video distribution applications, providing the necessary bandwidth for high-traffic environments while drastically reducing impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance for critical connections. The construction features 26AWG bare copper stranded conductors, with each individual pair bonded together to maintain consistent twist-spacing right up to the termination point. This design, combined with the PVC jacket and snagless boots, minimizes Near-End Crosstalk (NEXT) levels. This orange cable is part of a larger series with various lengths and colors, including the black CG00812 variant, making it ideal for color-coded network management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008804 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
5ft (1.5m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00812$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work for high-bandwidth data applications?
Yes, this shielded STP cable is designed for voice, data, and video distribution to handle bandwidth-intensive applications and reduce structural return loss.
What is the wiring scheme for the CG00880?
This patch cable uses the T568B wiring scheme and features 26AWG stranded copper conductors.
How does the shielding help prevent network interference?
The STP shielding and paired-bond construction help minimize Near-End Crosstalk (NEXT) and protect against electromagnetic interference.
Does this cable come with a warranty?
Yes, this C2G patch cable is backed by a lifetime warranty.
Is there a different color available for this same cable?
Yes, the CG00812 is the same 5ft Cat6 Snagless Shielded STP version in a black finish.
