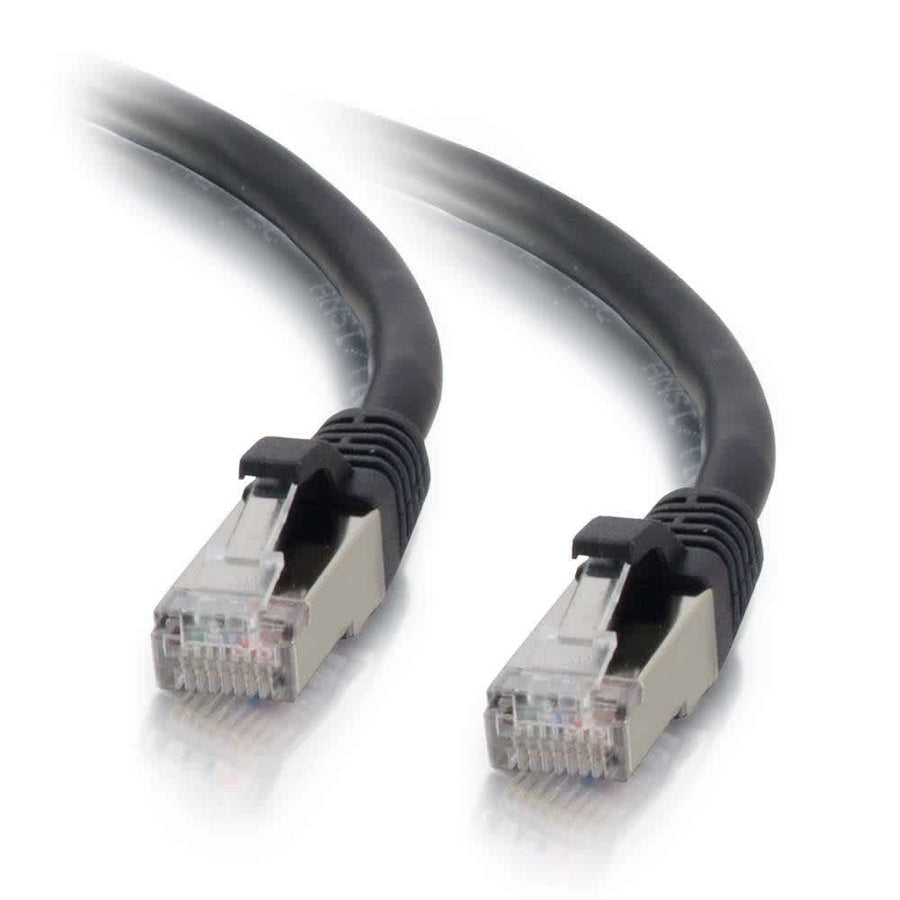

5ft (1.5m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
5ft (1.5m) Cat6 STP shielded patch cable, snagless design, black finish
The C2G CG00812 is a 5ft (1.5m) Cat6 Shielded STP Ethernet network patch cable designed to protect high-speed networks from noise and electromagnetic interference. This cable is engineered for bandwidth-intensive voice, data, and video distribution applications, helping to drastically reduce impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance in professional environments. The design features stranded copper conductors (26AWG) with individual pairs bonded together to maintain twist-spacing throughout the line up to the termination point. This construction minimizes Near-End Crosstalk (NEXT) levels. Each cable features a snagless, booted connector type with PVC hoods and a PVC jacket, and includes an individual length label for easy identification during installation. This black cable utilizes a T568B wiring scheme and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008125 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
5ft (1.5m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00795$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG00812 suitable for high-interference environments?
Yes, the CG00812 uses Shielded STP (SSTP) construction to protect high-speed networks from noise and electromagnetic interference.
What is the wiring scheme for this Cat6 patch cable?
This cable uses the T568B wiring scheme and features stranded 26AWG bare copper conductors.
What standards does this Cat6 cable meet?
This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
Can I find other colors of this Cat6 cable?
Yes, this cable is available in several colors, including Blue (SKU: CG00795) for easy color-coding.
What is the temperature rating for the CG00812?
The cable is rated for operation in temperatures up to 75°C.
