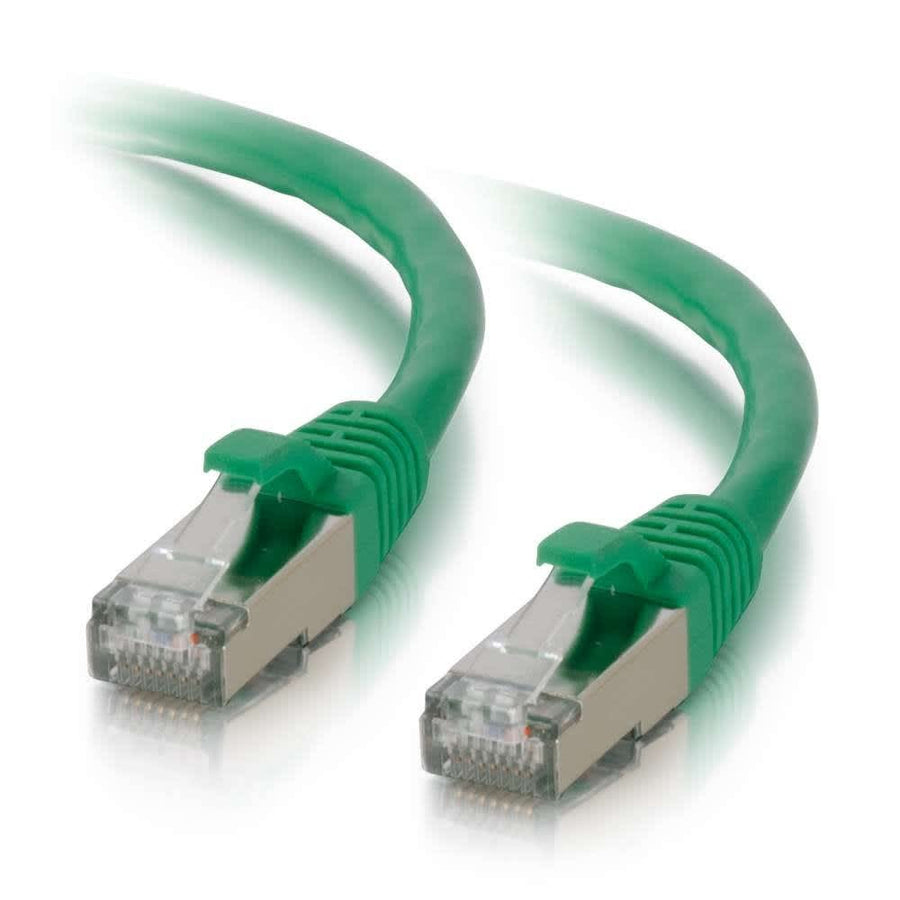

5ft (1.5m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Green
5ft Cat6 shielded STP Ethernet patch cable in green, featuring snagless boots and stranded copper conductors
The C2G CG00829 is a 5ft (1.5m) Cat6 Shielded STP Ethernet network patch cable designed to protect high-speed networks from electromagnetic interference and noise. This green cable is built for bandwidth-intensive applications in voice, data, and video distribution environments, helping to drastically reduce impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction features 26AWG stranded bare copper conductors, with each individual pair bonded together to maintain twist-spacing throughout the line up to the termination point. This design minimizes Near-End Crosstalk (NEXT) levels. This Cat6 cable features a 0.24 in (6.2 mm) diameter and utilizes PVC jacket and connector hood materials. It is configured with a T568B wiring scheme and includes snagless boots for easy installation in dense environments. The cable is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | STP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008293 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
5ft (1.5m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00812$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG00829 suitable for high-speed data environments?
Yes, this Cat6 shielded STP cable is designed for bandwidth-intensive applications, helping to reduce impedance and structural return loss (SRL).
What wiring scheme does the CG00829 use?
The CG00829 is wired using the T568B scheme and features 26AWG stranded copper conductors.
Does this cable provide protection against crosstalk?
Yes, the construction minimizes Near-End Crosstalk (NEXT) levels through individual pair bonding to maintain twist-spacing to the termination point.
What is the temperature rating for this patch cable?
This Cat6 patch cable is rated for operation in temperatures up to 75°C.
Can I find this cable in a different color?
Yes, this series is available in multiple colors including Black (SKU: CG00812) and other options such as Blue, Gray, Orange, Purple, Red, and White.
