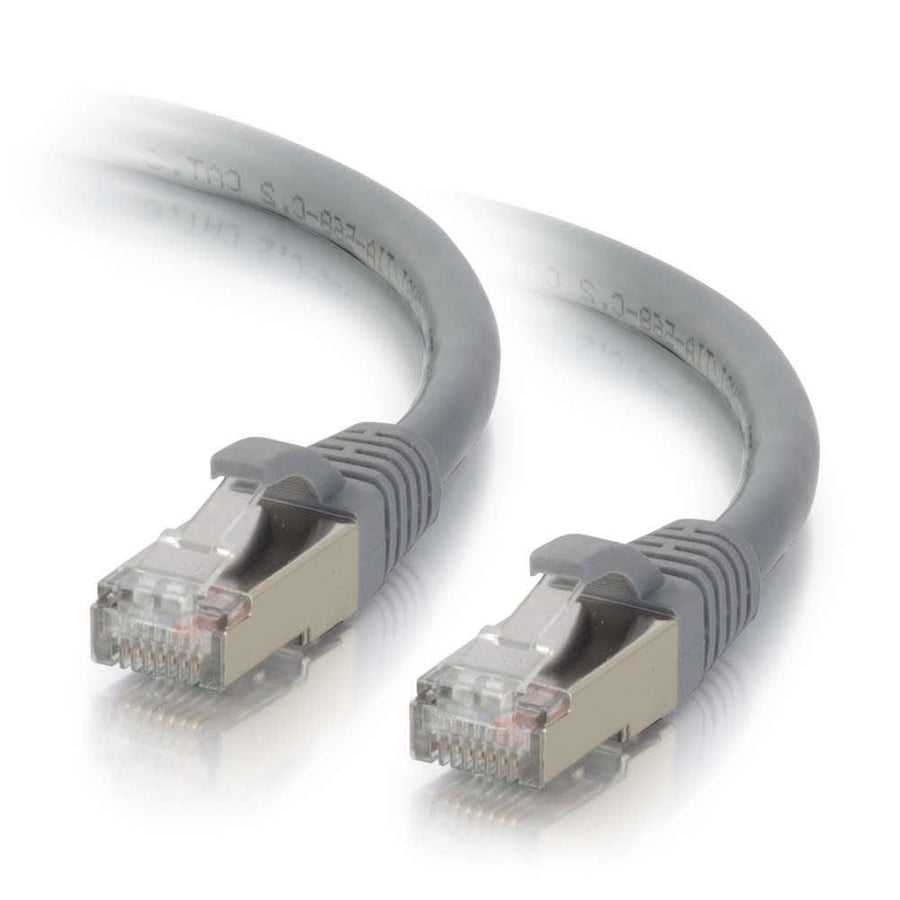

5ft (1.5m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Gray
Shielded Cat6 STP patch cable, 5 ft (1.5 m) length, featuring 26AWG stranded copper and snagless booted RJ-45 connectors
The C2G CG00778 is a 5 ft (1.5 m) Cat6 Shielded STP Ethernet patch cable designed to protect high-speed networks from electromagnetic interference and noise. This cable is engineered for bandwidth-intensive voice, data, and video distribution applications, helping to drastically reduce impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. To minimize Near-End Crosstalk (NEXT), the design ensures that each individual pair is bonded together to maintain consistent twist-spacing through to the termination point. This gray patch cable features 26AWG bare copper stranded conductors and a PVC jacket. Both ends are equipped with RJ-45 male connectors featuring a snagless, booted design and PVC hoods for added protection. This series is available in several other lengths and colors to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | STP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007784 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Is the C2G CG00778 suitable for high-bandwidth video distribution?
Yes, this Cat6 STP cable is designed to handle bandwidth-intensive applications and helps reduce impedance and structural return loss (SRL).
What is the wiring configuration for this patch cable?
The CG00778 uses the T568B wiring scheme and features 26AWG stranded bare copper conductors.
Does this cable help prevent crosstalk in dense network environments?
Yes, the design minimizes Near-End Crosstalk (NEXT) by bonding individual pairs to maintain twist-spacing up to the termination point.
What is the temperature rating for this Cat6 cable?
This cable is rated for operation at temperatures up to 75°C.
What other C2G products are compatible with this cable?
This cable is compatible with various networking accessories, including the LANsmart TDR Cable Tester and various Keystone jacks like the CG35217.
