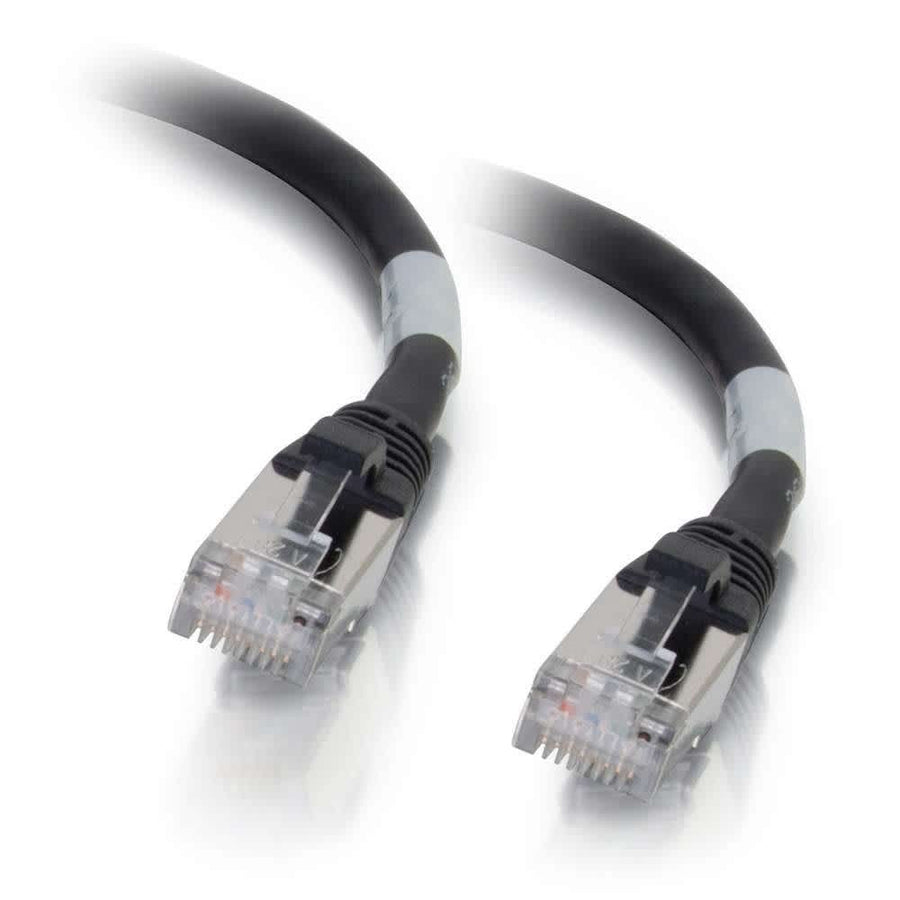

4ft (1.2m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
4ft shielded Cat6a patch cable with snagless boots, 26AWG stranded copper conductors, and black PVC jacket for 10GBase-T networking
The C2G CG00709 is a 4 ft (1.2 m) Cat6a patch cable designed to provide reliable connectivity for high-speed 10GBase-T environments. This snagless shielded STP Ethernet network patch cable is ideal for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. By utilizing shielded STP construction, this cable helps protect high-speed 10 Gigabit network connections from electromagnetic interference and noise. Each cable is constructed with 26AWG bare copper stranded conductors and FMPE (Foam Polyethylene) insulation to reduce impedance and structural return loss (SRL). The design features individual pairs bonded together to maintain twist-spacing throughout the line, which minimizes Near-End Crosstalk (NEXT) levels up to the termination point. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements and features an individual length label for easy identification during installation. This black PVC jacketed cable is built for bandwidth-intensive voice, data, and video distribution applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007098 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this C2G CG00709 cable work for 10 Gigabit networking?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and equipment, supporting high-speed 10 Gigabit network connections.
What is the wiring scheme for the CG00709 patch cable?
This cable uses the 568B wiring scheme with RJ-45 male connectors on both ends.
What tools do I need to install this cable?
As this is a pre-terminated patch cable with RJ-45 male connectors, no specialized installation tools are required for setup.
Is this cable suitable for high-interference environments?
Yes, the shielded STP design and bonded individual pairs are specifically engineered to minimize Near-End Crosstalk (NEXT) and protect against noise.
What other equipment is this cable compatible with?
It is compatible with various networking hardware including switches, routers, hubs, and patch panels, such as the DA8000WH 8-Port Network Switch.
