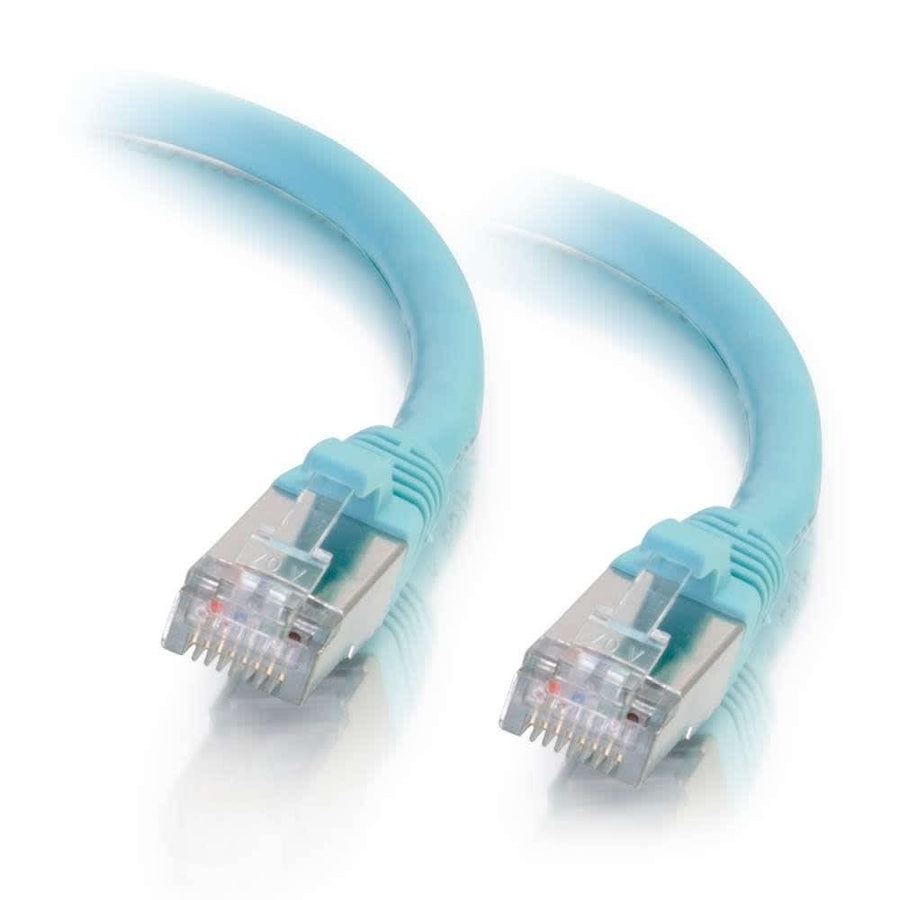

4ft (1.2m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
4ft Cat6a shielded STP patch cable with snagless boots, 26AWG stranded copper, and Aqua finish
The C2G CG00743 is a 4ft (1.2m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to protect high-speed 10GBase-T connections from electromagnetic interference and noise. This Aqua-colored cable is engineered for bandwidth-intensive applications, helping to reduce impedance and structural return loss (SRL) in voice, data, and video distribution environments. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for network adapters, switches, routers, and patch panels. Construction of the CG00743 features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation to maintain twist-spacing up to the termination point, which minimizes Near-End Crosstalk (NEXT). The cable utilizes a PVC jacket and PVC connector hoods with a snagless, booted design for added protection during installation. This SKU is part of the wider Cat6a Patch Cable Series, which is available in various colors to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007432 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
What is the maximum operating temperature for the CG00743?
This cable is rated for operating temperatures ranging from -4°F (-20°C) up to 176°F (80°C).
Will this Cat6a cable work for 10 Gigabit Ethernet applications?
Yes, this shielded STP cable is ideal for 10GBase-T ports, protecting high-speed connections in switches, routers, and hubs.
