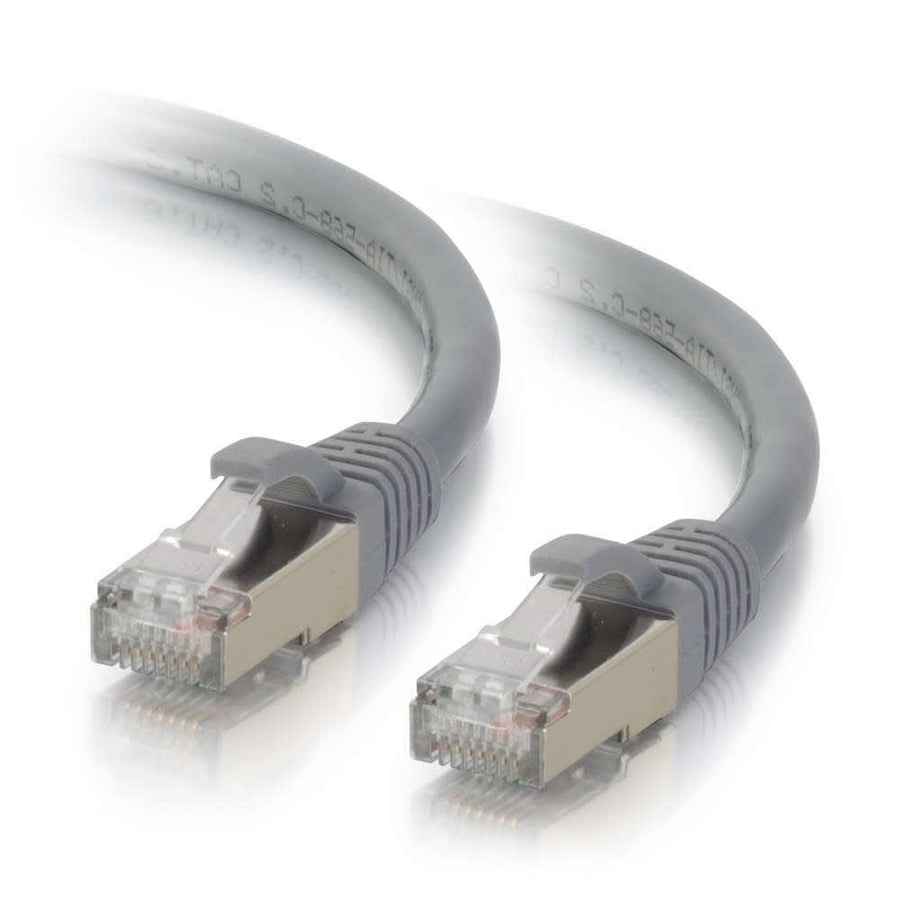

4ft (1.2m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Gray
4ft Cat6 shielded STP patch cable in gray with snagless boots and T568B wiring
The C2G CG00777 is a 4ft (1.2m) Cat6 Shielded (STP) Ethernet network patch cable designed to protect high-speed networks from noise and electromagnetic interference. This gray cable is ideal for bandwidth-intensive applications in voice, data, and video distribution environments where reducing impedance and structural return loss (SRL) is critical. Each cable features 26AWG bare copper stranded conductors and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This STP cable uses a PVC jacket and PVC connector hoods, and both ends are equipped with booted, snagless RJ-45 male connectors for secure, strain-relieved connections. This series is available in various colors and lengths to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | STP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007777 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Is the C2G CG00777 suitable for high-interference environments?
Yes, the Shielded (STP) construction and individual pair bonding help protect high-speed networks from noise and electromagnetic interference.
What is the wiring configuration for this patch cable?
The CG00777 follows the T568B wiring scheme and uses 26AWG bare copper stranded conductors.
Does this cable support Cat6 performance standards?
Yes, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
What is the difference between this and other C2G Cat6 cables?
This SKU is a 4ft gray STP shielded version; other cables in this series offer different lengths and colors for network color-coding.
What certifications does this cable hold?
This product carries CE, REACH, and RoHS certifications.
