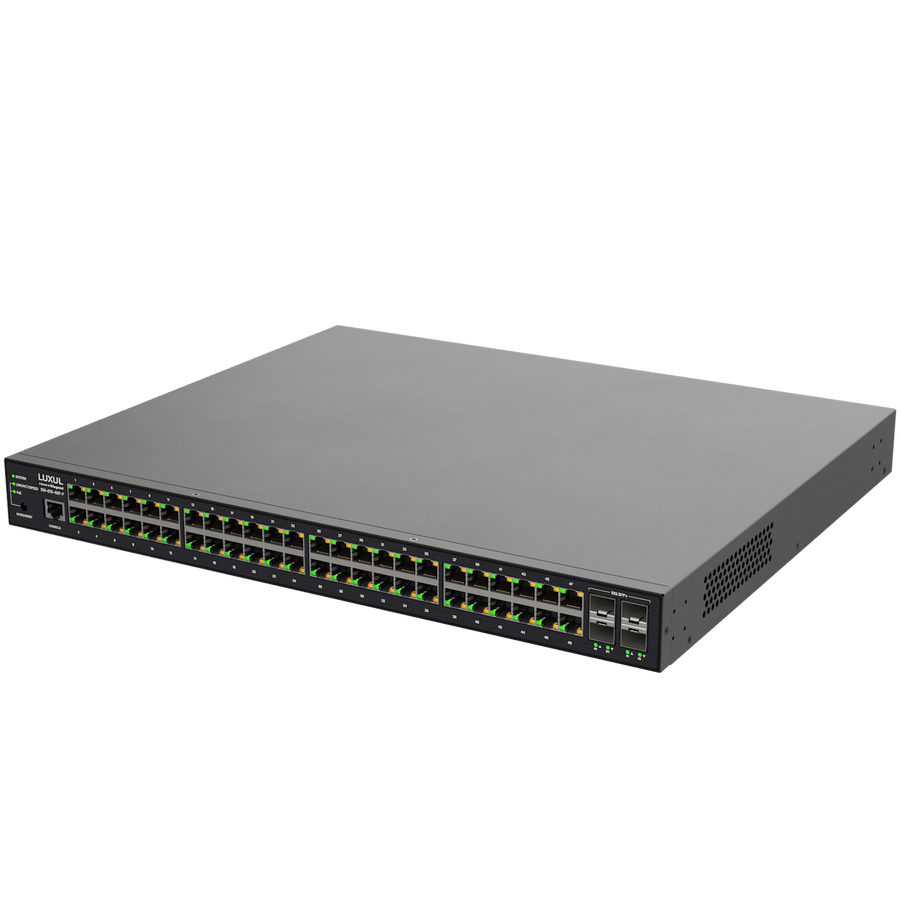

48 PoE+ | 4 (10G) SFP+ Ports – 1Gb L2/L3 Managed Switch, US Power Cord
48-port PoE+ managed switch with 4 x 10Gb SFP+ ports, 740W PoE budget, and Layer 2/Layer 3 capabilities
The Luxul SW-615-48P-F is a high-performance Layer 2/Layer 3 managed switch designed to meet the demands of complex AV-over-IP deployments. This unit provides 48 wired 1Gbps ports and 4 dedicated 10Gb SFP+ fiber ports for high-bandwidth uplinks. It features a robust 740 W PoE power budget to support various powered devices and includes PoE Self-Healing technology, which offers auto-recovery and power scheduling to maintain network uptime. This switch supports advanced VLAN management, including 802.1Q compliance with up to 4094 VIDs and VLAN trunking, and includes QoS support with DSCP. For specialized AV environments, it offers Dante and AES67 compatibility, alongside IGMP snooping and querying for efficient multicast management. This TAA compliant switch is an ideal core or distribution solution for professional integrators requiring reliable, managed connectivity for large-scale IP networks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 1.75 in (4.4 cm) |
| Length | 17.4 in (44.2 cm) |
| Max Power Consumption | 885W 100VAC |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| PoE Power Budget | 740 W |
| Product Weight | 6.2 lbs (2.8 kg) |
| Shipping Dimensions | 21" x 19" x 4" (533.4 x 482.6 x 101.6 mm) |
| Shipping Weight | 15.1 lbs (6.9 kg) |
All other specifications 21
| Switching Capacity | 176 GBPS |
| Width | 14.75 in (37.5 cm) |
| Connection Type | Wired |
| Jumbo Frame Support | 10240 B |
| Layer Support | L2L3 |
| Multicast | IGMP v1/2/3Per Port Unregistered FloodingQuiererSnooping |
| Number of Fiber SFP Ports | 4 |
| Number of Ports | 48 |
| PoE Self Healing | Per Port Basis |
| Port Location | Front |
| Power Cord | US Cord |
| Spanning Tree | MSTPRSTPSTP |
| Special Features | PoE Self Healing |
| SPF Port Type | 4 x 10 Gigabit |
| Switch Type | ManagedPoE+ |
| TAA Compliant | Yes |
| UPC | 655003923650 |
| VLAN Compliance | 802.1Q max 4094 VIDs & VLAN trunking |
| VLAN ID | 4094 |
| Wired Data Rate | 1Gbps |
| Certifications | CB ReportCECE-EMCCE-LVDFCCICNDAA 889RCMRoHSTAAUKCAVCCI |
Resources
You'll need these with it
Wi-Fi 6 AX3600 4x4 Multi-Gig Access Point - US
AP-3064$855.75
1 RU Utility Rackshelf, 10.4 Inches Deep, Vented
U1V$74.70
AC1200 Dual-Band Wireless Access Point with US Power Cord
XAP-810$209.00
Apex™ Wave 2 AC3100 Dual-Band Access Point with US Power Cord
XAP-1610$536.00
High Power AC1900 Dual-Band Wireless Access Point with US Power Cord
XAP-1510$396.00
10GB Multimode Fiber Duplex SFP+ Module 850nm VCSEL 300M Over OM3 Fiber
10G-MM-DX-LC$259.00
Single Port 2.5 Gigabit PoE/PoE+ Injector 30W with US Power Cord
PI-25$73.50
8 Port Cat6 Network Interface Module
AC1068$64.99
1U Vented Shelf; Fits all Component Series AV racks
CASH21-B1
10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00715$25.99
Questions about this part
Will the SW-615-48P-F work in an AV-over-IP system?
Yes, the SW-615-48P-F is AV-over-IP compatible and specifically supports Dante and AES67 protocols for professional audio/video networking.
What kind of fiber connectivity can I use with this switch?
The switch includes 4 x 10 Gigabit SFP+ ports. For example, the 10GB-MM-DX-LC 10GB Multimode Fiber Duplex SFP+ Module can be used for 300m runs over OM3 fiber.
Does this switch support PoE auto-recovery?
Yes, it features PoE Self-Healing technology which provides per-port basis auto-recovery and allows for power scheduling to maintain device connectivity.
What is the total PoE power capacity of the SW-615-48P-F?
This switch provides a 740 W PoE power budget to support your connected PoE+ devices across the 48 ports.
Is the SW-615-48P-F suitable for government projects requiring TAA compliance?
Yes, this switch is TAA compliant and meets the security requirements outlined in NDAA 889.
