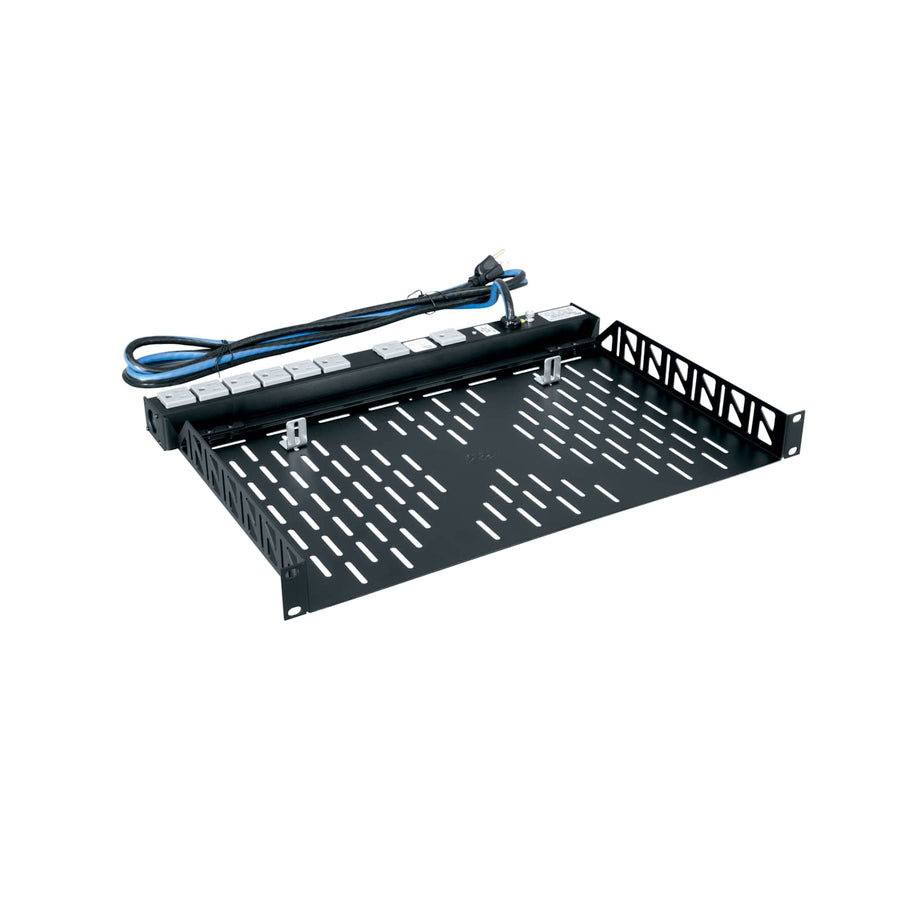

1 RU Utility Rackshelf, 10.4 Inches Deep, Vented
Vented 1 RU utility rackshelf with 10.41" usable depth and 35 lbs capacity for rack-mounted components
The Middle Atlantic U1V is a 1 RU utility rackshelf designed to provide stable, vented support for smaller rackmount components. This welded steel shelf features a total depth of 10.78 in (27.4 cm) and offers a usable depth of 10.41 in (26.4 cm). To assist with thermal management, the unit is fully vented on the bottom and sides to encourage heat dissipation from mounted gear. For equipment security, the shelf includes 3 rear brackets to prevent components from sliding backward and accepts optional clamping bars. This TAA-compliant shelf also accepts the PD-815SC-PBSH power strip and is UL Listed for reliability in professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 10.78 in (27.4 cm) |
| Height | 1.75 in (4.4 cm) |
| Package Count | 1 |
| Rack Units | 1 RU |
| Usable Depth | 10.41 in (26.4 cm) |
| Weight Capacity | 35 lbs (15.9 kg) |
| Width | 19 in (48.3 cm) |
| Federal Ops Country of Origin | Mexico |
All other specifications 5
| Mounting Points | 2 |
| TAA Compliant | Yes |
| UPC | 656747186684 |
| Vented | Yes |
| Certifications | TAAUL Listed |
Resources
Questions about this part
Will the U1V fit my rack-mounted components?
Yes, this 1 RU shelf provides a 10.41 in (26.4 cm) usable depth and is designed to hold equipment with a total weight of up to 35 lbs (15.9 kg).
What additional hardware is needed to secure my gear?
This shelf accepts optional clamping bars to secure components and includes 3 rear brackets to prevent items from sliding backward.
Can I mount a power strip to this shelf?
Yes, the U1V is compatible with the PD-815SC-PBSH power strip.
Does this shelf help with heat management?
Yes, the unit is fully vented on both the sides and the bottom to promote necessary heat dissipation for your equipment.
Which technical drawings are available for submittals?
You can access the U Series CAD Technical Specification (dwg), 3D CAD files, and the UXV-Vented Utility Shelf Instruction Sheet (PDF) in the resources section.
