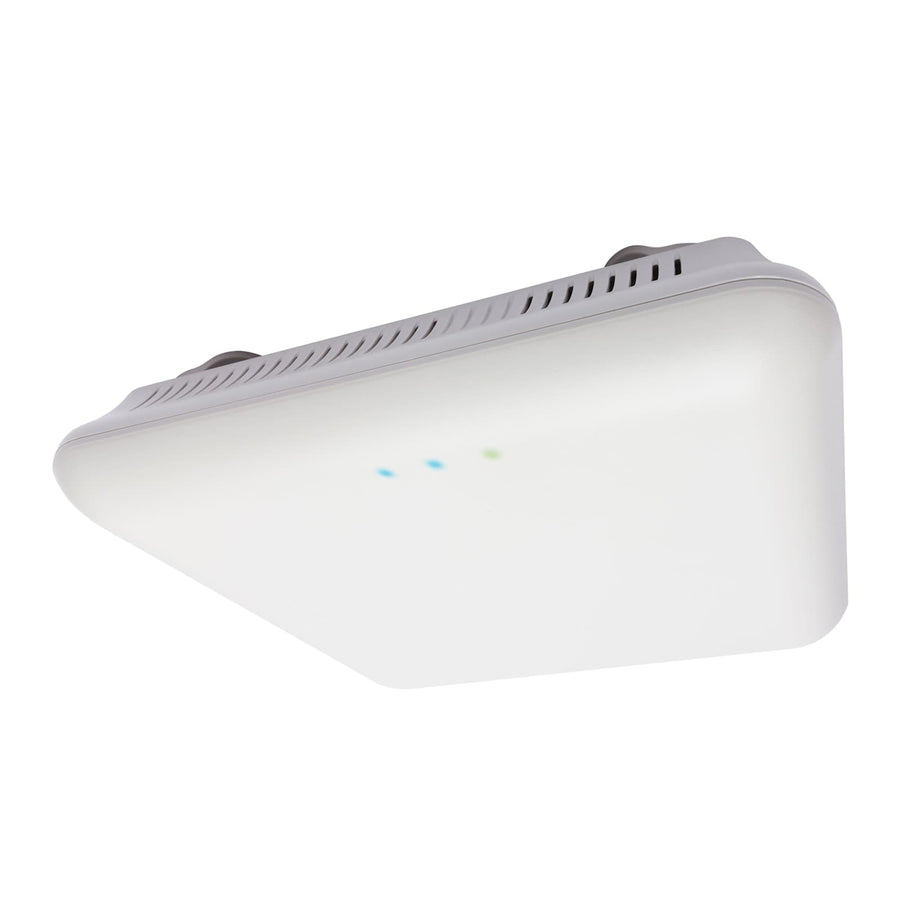

Apex™ Wave 2 AC3100 Dual-Band Access Point with US Power Cord
Dual-band 802.11ac Wave 2 access point with 4x4 MU-MIMO, Beamforming, and PoE+ support
The Luxul XAP-1610 is an indoor dual-band access point utilizing 802.11ac Wave 2 technology to support high-density device environments and increased data rates. This unit features 4x4 MU-MIMO and Beamforming across both the 2.4 GHz and 5 GHz wireless frequencies, providing high output power for maximum coverage. It is compatible with all Luxul WiFi controllers, including standalone or embedded configurations, and works alongside Luxul Roam Assist™ Wireless Controllers for managed multi-AP deployments. The XAP-1610 supports up to 8 total SSIDs (4 per band) and includes 802.1Q VLAN compliance to facilitate secure guest network segmentation. For installation, the unit can be mounted on a ceiling, mounted on a wall, or placed on a desktop. It supports single-cable installation using an integrated PoE+ port, though an injector is included for AC power setups. This device is NDAA 889 compliant and meets FCC, IC, RCM, and RoHS standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 7.28 in (18.5 cm) |
| Length | 7.28 in |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Product Weight | 1.5 lbs (0.7 kg) |
| Shipping Dimensions | 12.01" x 9.45" x 3.21" (305.1 x 240.1 x 81.6 mm) |
| Shipping Weight | 3.35 lbs (1.5 kg) |
| Width | 1.71 in (4.3 cm) |
| Access Point Location | Indoor |
All other specifications 13
| Antenna Type | 4x4 MU-MIMO Wave 2Beamforming |
| Connection Type | Wireless |
| Power Cord | US Cord |
| Power Type | ACPoE |
| SSID Capability | 8 |
| TAA Compliant | No |
| Transmit Power (Maximum) | 1000mW30dBm |
| UPC | 655003920970 |
| VLAN Compliance | 802.1Q |
| Wireless Frequencies | 2.4 GHz5 GHz |
| Wireless Mode | 802.11 a/b/g/n/ac |
| Wireless Security | WPA/WPA2-PSK, WPA/WPA2-AES |
| Certifications | FCCICNDAA 889RCMRoHS |
Resources
Questions about this part
What are the power requirements for the XAP-1610?
This access point can be powered via AC using the included US power cord or through a single Ethernet cable using PoE+.
Will the XAP-1610 work with my existing Luxul system?
Yes, it is compatible with all Luxul WiFi controllers, whether they are embedded or standalone, and functions within Luxul Roam Assist™ deployments.
How many SSIDs can I configure on this access point?
The XAP-1610 supports up to 4 SSIDs per band, allowing for a total of 8 SSIDs across both the 2.4 GHz and 5 GHz frequencies.
What mounting options are available for the XAP-1610?
The unit is designed for versatile installation; it can be mounted on a ceiling, mounted on a wall, or used as a desktop access point.
Is the XAP-1610 suitable for creating a guest network?
Yes, because it supports 802.1Q VLAN compliance, you can segment your network to create a secure, isolated guest wireless network.
