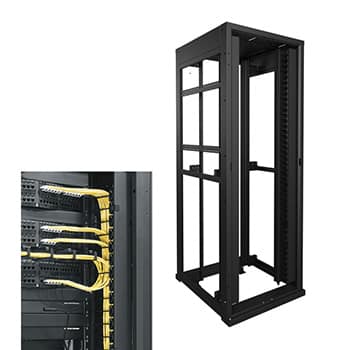

45 RU SNE Series Rack for Networking Systems, 30 Inches Wide, 36 Inches Deep - LRD
45 RU wide security network enclosure, 30" x 36" footprint, seismic rated with internal cable ducts and Lever Lock compatibility
The SNE30N-4536-LRD is a 45 RU SNE Series rack designed specifically for high-density networking systems. This pre-configured wide security network enclosure provides a 30 inch (76.2 cm) width and a 36 inch (91.4 cm) depth, offering a usable height of 78.75 in (200 cm) and a usable depth of 21.3 in (54.1 cm). To manage dense cabling, the enclosure includes two front-mounted cable ducts that protect and route lines within the frame. This unit features a solid top, a solid split rear door, and four leveling feet for stable installation. It is engineered with a steel construction and includes two pairs of adjustable 10-32 tapped rackrails, along with a pack of 100 10-32 rack screws. For specialized equipment mounting, it is compatible with the patented Tool-Free Lever Lock™ system to utilize side-mounted 21” vertical accessories. This TAA compliant enclosure is UL listed and features a seismic load capacity of 1050 lbs (476.3 kg) and a UL load capacity of 3000 lbs (1,360.8 kg). Please note this product is scheduled for discontinuation on December 1, 2026; the manufacturer recommends the DRK19-44-36 as a replacement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 84.77 in (215.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 256 lbs (116.1 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 21.3 in (54.1 cm) |
| Usable Height | 78.75 in (200 cm) |
All other specifications 15
| Width | 30 in (76.2 cm) |
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Pre-Configured |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Side Panel | No |
| System Type | Networking |
| TAA Compliant | Yes |
| UPC | 656747376177 |
| Certifications | TAAUL Listed |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
Resources
You'll need these with it
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50

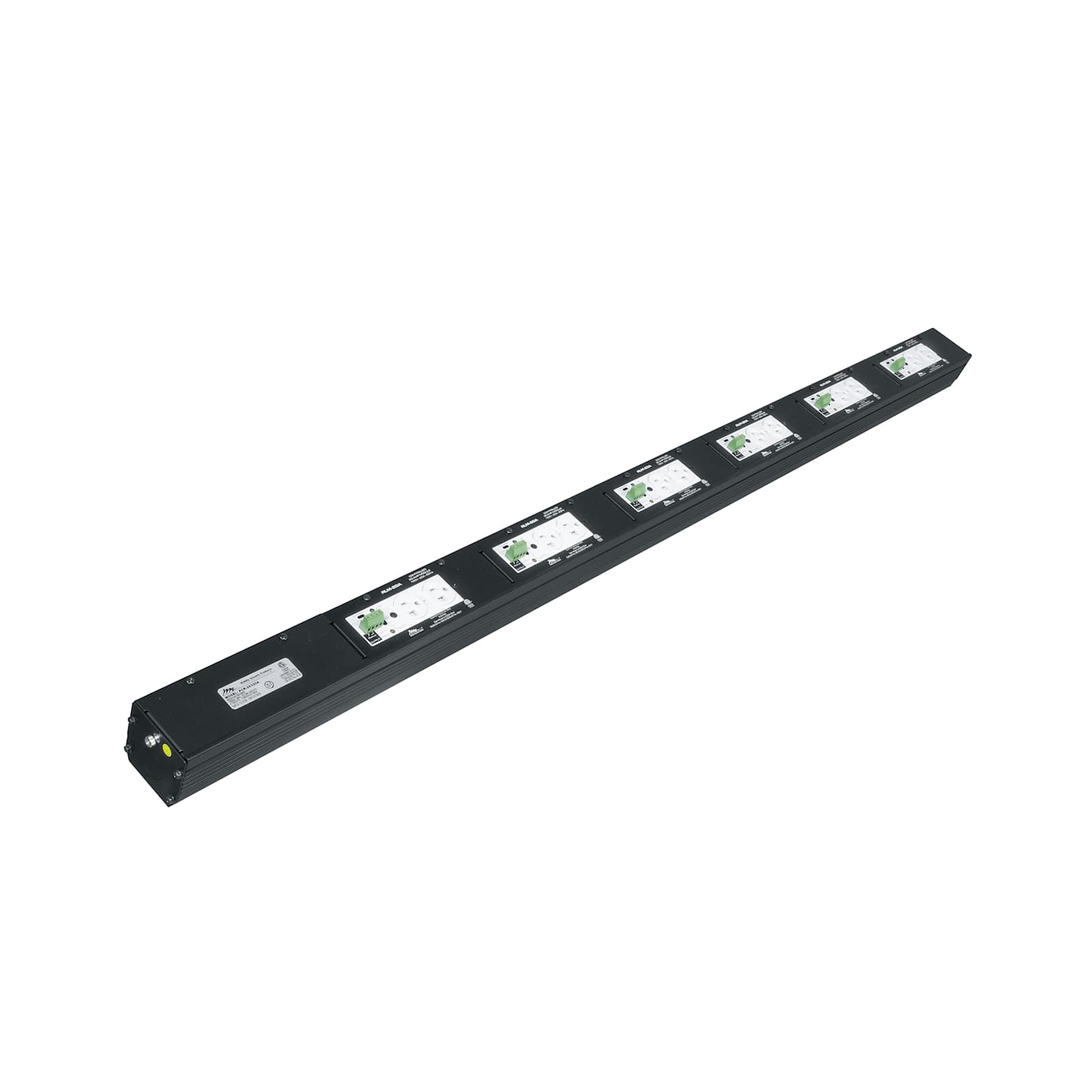

Pre-Configured MPR Raceway, 20A Dual Circuit
PCR-2X320A$1,794.60
45 RU Side Panel for 4542 Inch SNE Racks
SNE-SPNH-4542$450.90

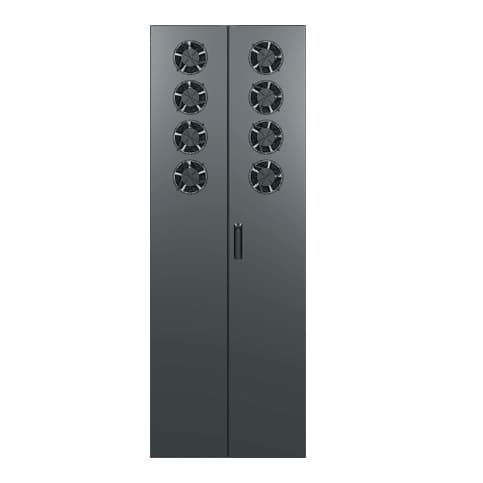

45 RU Split Fan Door for 30 Inch SNE Rack
SNE30-CFD-45$2,149.20

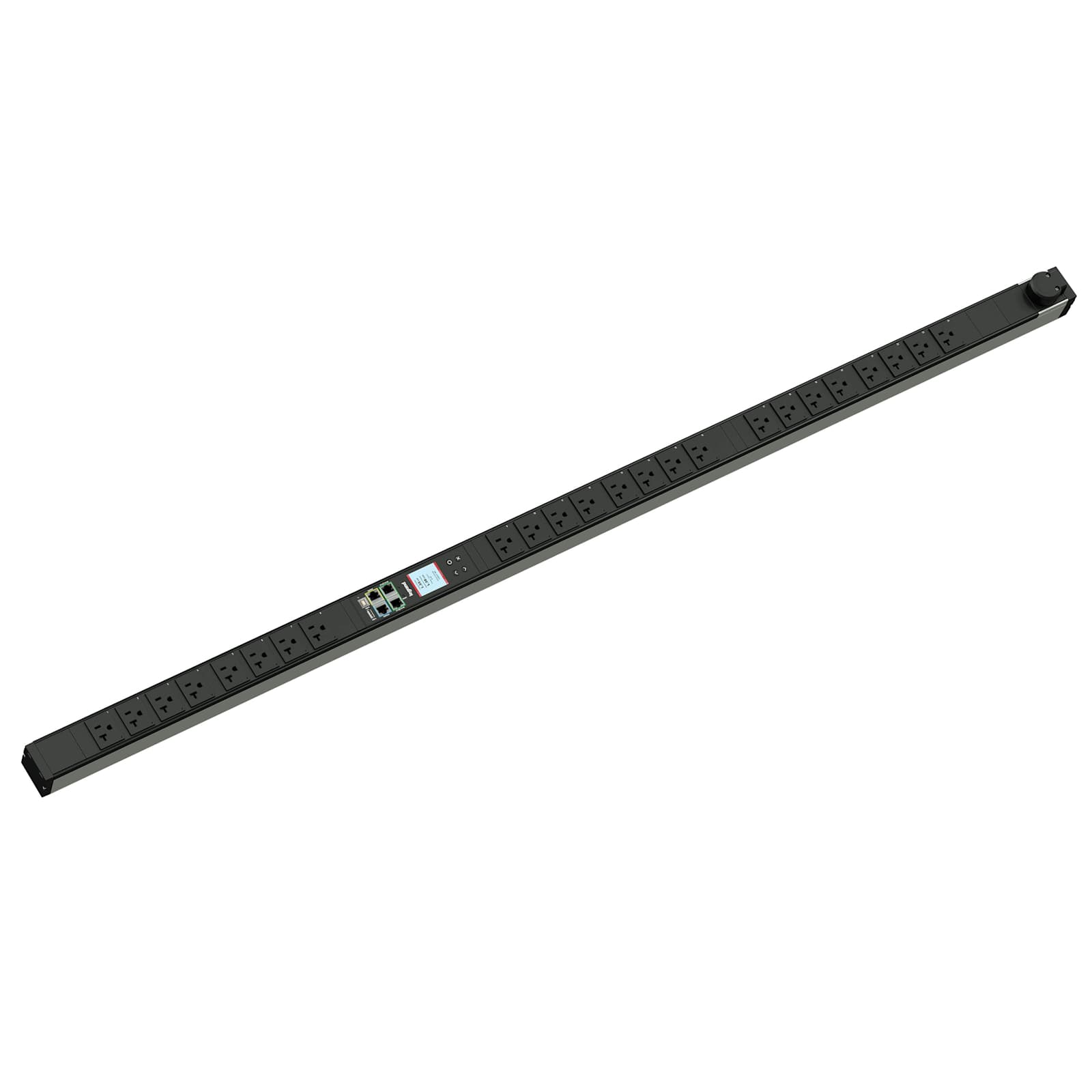

Legrand Vertical ZeroU Network Switched PDU, 24 Outlet
LP-61200$1,915.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
Questions about this part
Will the SNE30N-4536-LRD fit my vertical accessories?
Yes, this enclosure is Lever Lock™ compatible and accepts all 21” vertical accessories to help save rackspace.
What is the replacement for this rack if it is discontinued?
The manufacturer recommends the DRK19-44-36 as the replacement for this SNE Series enclosure.
Can this rack be used in seismic zones?
Yes, this is a seismic-rated enclosure with a seismic load capacity of 1050 lbs (476.3 kg).
Does this unit include hardware for mounting equipment?
This kit includes a pack of 100 10-32 rack screws and two pairs of adjustable 10-32 tapped rackrails.
What type of cable management is provided?
The enclosure comes equipped with two internal cable ducts in the front to route and protect cabling.
