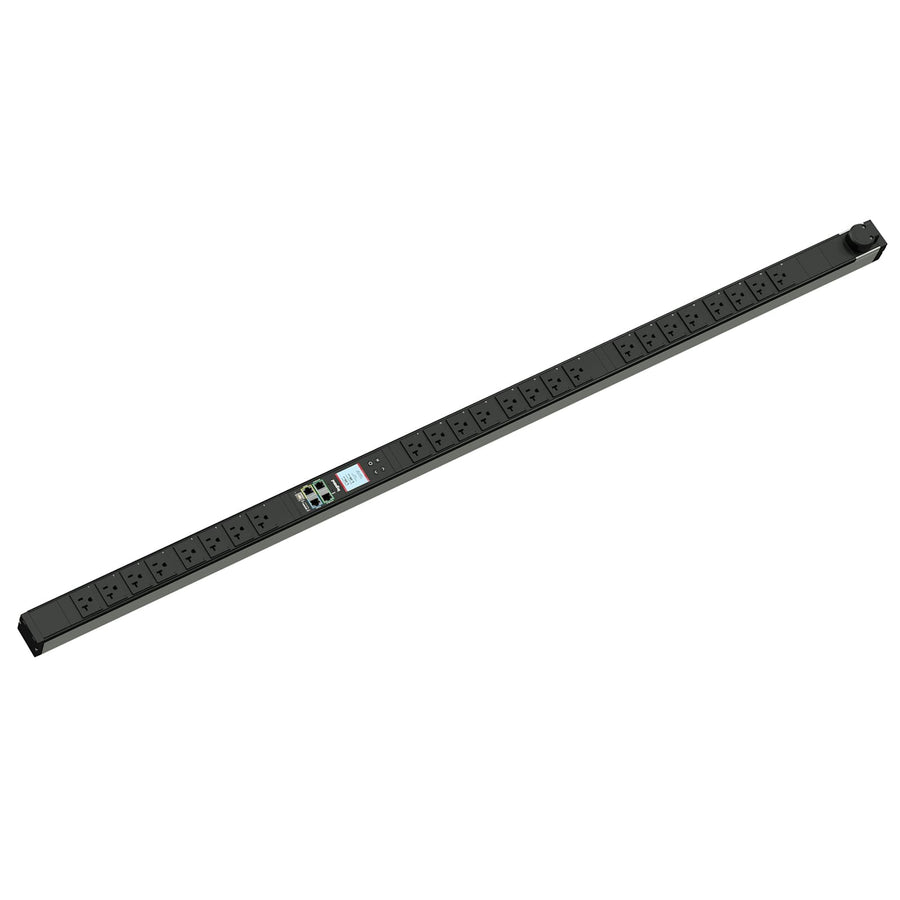

Legrand Vertical ZeroU Network Switched PDU, 24 Outlet
Vertical ZeroU Network Switched PDU with 24 NEMA 5-20R outlets, 20A capacity, and TAA compliance
The Legrand LP-61200 is a Vertical ZeroU Network Switched PDU designed to provide intelligent power management within a rack environment. This 24-outlet unit allows for individual outlet power cycling, power sequencing, and load monitoring through a single portal view. This provides installers and system integrators with remote or local visibility and control over power usage and available capacity. This model features NEMA 5-20R receptacles and a NEMA L5-20P plug type, operating at 120 VAC with a 20 Amp rating. The unit's 60.6 in (153.9 cm) height and 2 in (5.1 cm) depth allow for a vertical mounting style that preserves valuable rack units. It is TAA compliant and UL Listed. This PDU is part of a series of Legrand Network Switched PDUs that offer various outlet counts to meet specific deployment needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9.84 ft (3 m) |
| Depth | 2 in (5.1 cm) |
| Height | 60.6 in (153.9 cm) |
| Shipping Weight | 11.84 lbs (5.4 kg) |
| Volts AC | 120 VAC |
| Width | 2 in (5.1 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black and Silver |
| Mounting Style | Vertical |
| Outlet Count | 24 |
| Plug Type | L5-20P |
| Receptacle Type | NEMA 5-20R |
| TAA Compliant | Yes |
| UPC | 662875015444 |
| Certifications | FCCTAAUL Listed |
Resources
You'll need these with it
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
42 to 45 RU Forward Universal Vertical Power Bracket
FWD-UVPB-42-45$118.80
42 to 45 RU SNE Universal Vertical Power Bracket
SNE-UVPB-4245-S$135.00
Questions about this part
What can I do with the power management features of the LP-61200?
You can perform individual outlet power cycling, manage power sequencing, and monitor your load remotely or locally.
What is the plug and receptacle configuration for this PDU?
This unit utilizes NEMA 5-20R receptacles and includes a NEMA L5-20P plug type with a 9.84 ft (3 m) cord length.
Is this PDU TAA compliant for government projects?
Yes, the LP-61200 is TAA Compliant and is UL Listed.
What accessories are available for the LP-61200?
Compatible accessories include the RLNK-TEMP Premium+ PDU with RackLink™ Temperature and Humidity Sensor and the RLNK-CONT Dry Contact Sensor.
Does this PDU require specific mounting brackets?
The unit features a vertical button mount and is compatible with the FWD-UVPB-42-45 and SNE-UVPB-4245-S universal vertical power brackets.
