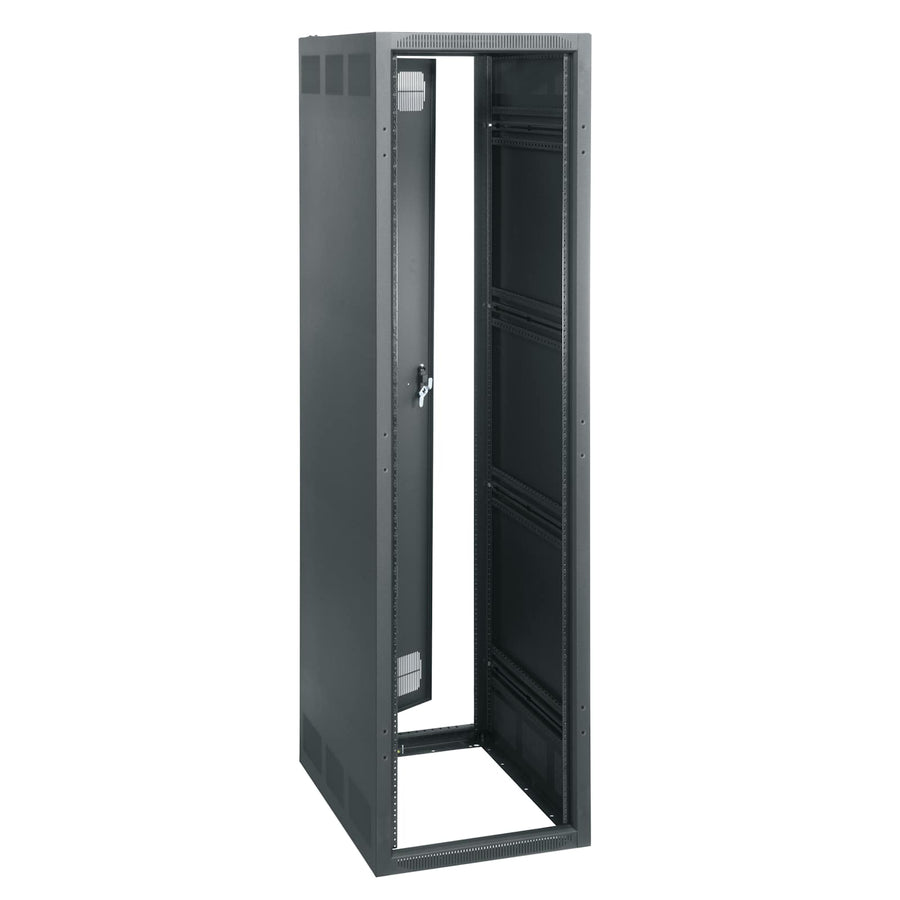

45 RU BGR-SA Series Rack, 32 Inches Deep
45 RU standalone AV rack, 32" deep, seismic rated, with solid sides for security and airflow control
The Middle Atlantic BGR-45SA-32 is a 45 RU standalone BGR-SA series AV rack designed for high-performance professional environments. Featuring a 32 in (81.3 cm) depth and 82.88 in (210.5 cm) total height, this rack provides a usable depth of 29.4 in (74.7 cm) and a usable height of 78.88 in (200.4 cm). This unit is engineered for rapid installation, utilizing a Forward and Lever Lock™ compatible system that enables tool-free mounting and accessories, potentially making rack setups up to 5X faster. The 23 in (58.4 cm) width provides extra clearance in the side channels for front-to-back cable management and the installation of small devices via the Lever Lock™ system. This steel frame is built for security with solid sides to control airflow and includes a standard vented rear door. For high-demand environments, this rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and holds a UL Listed load capacity of 3000 lbs (1,360.8 kg). This model is TAA compliant and features a black wrinkle powder coat finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 82.88 in (210.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 212 lbs (96.2 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 78.88 in (200.4 cm) |
All other specifications 17
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747139895 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
FTA Series 4 Inch DC Fan
FT-FAN$90.00
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
45 RU Forward Rackrail For BGR Series Enclosures
FWD-BGR-RR45$219.60
552 CFM Fan Top, with Controller for BGR Series
BGR-552FT-FC$856.80
45 RU Vented Front Door, Curved
VFD-45A$803.70
276 CFM Fan Top, with Controller for BGR Series
BGR-276FT-FC$801.00
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
552 CFM Fan Top, for BGR Series
BGR-552FT$656.10
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will this BGR-45SA-32 rack fit my seismic requirements?
Yes, this rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and is UL Listed.
What is the usable depth for equipment mounting in the BGR-45SA-32?
The total depth is 32 in (81.3 cm), providing a usable depth of 29.4 in (74.7 cm) for your equipment.
Can I add more racks next to this one?
Yes, the sides of this BGR-SA series rack include ganging holes if multiple units are required for a larger installation.
Does this rack support Lever Lock™ accessories?
The BGR-45SA-32 is compatible with the Lever Lock™ system, allowing for tool-free installation of various cable management accessories.
Which documents are available for submittals?
You can download the BGR-SA Series 3 Part Specification, the A&E Specification Sheet, and various CAD/Revit models from the product resources.
