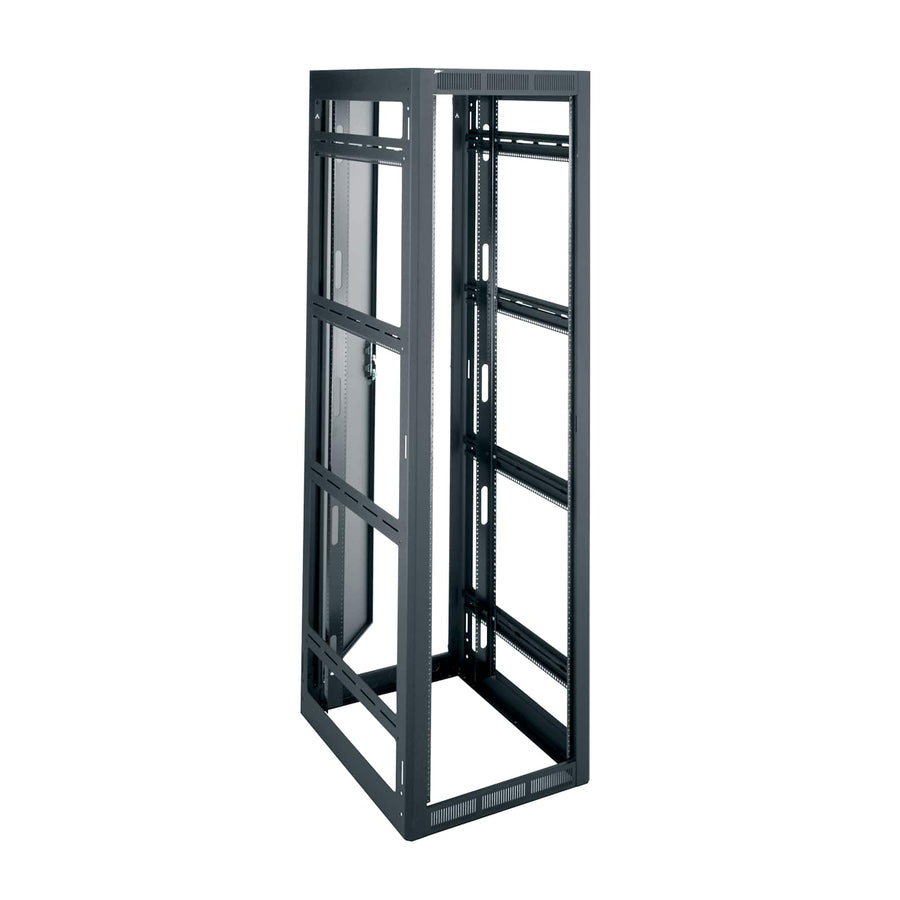

44 RU WRK Series 24-1/4 Inch Wide Rack, 32 Inches Deep
44 RU floor-standing rack, 24-1/4" wide for enhanced cable management and airflow, with 900 lbs seismic load capacity
The Middle Atlantic WRK-44-32 is a 44 RU floor-standing rack designed to accommodate equipment with thick cable bundles that require extra space. Its 24-1/4" overall width provides significant additional room for side cabling or enhanced cooling airflow compared to standard-width enclosures. This model features a fully welded construction for maximum strength, supporting a total weight capacity of 10,000 lbs (4535.9 kg). For high-security or high-vibration environments, it is seismic rated with a seismic load capacity of 900 lbs (408.2 kg) and carries UL and ASCE certifications. The rack includes a standard configurable rear door and uses adjustable 10-32 threaded front and rear rackrails with numbered spaces. For complex routing, the extra-wide rackrails include cable pass-throughs to facilitate front-to-rear cabling, supported by convenient lacing points and slotted rail brackets. This TAA compliant, USA-made unit is gangable, allowing for multi-bay installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32.63 in (82.9 cm) |
| Height | 83.13 in (211.2 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 179 lbs (81.2 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 30.75 in (78.1 cm) |
| Usable Height | 77 in (195.6 cm) |
All other specifications 12
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 24.25 in (61.6 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747025235 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 900 lbs (408.2 kg) |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
100 CFM Fan Panel, Textured
QTFP-2$243.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
44 RU Vented Front Door for ERK, MRK and WRK Racks, 64% Open
LVFD-44$792.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
FTA Series 4 Inch DC Fan
FT-FAN$90.00
44 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-44-OWP$400.50
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
100 CFM Fan Panel, 27dB, Anodized, Intake Secondary Only
UQFP-4RIS$642.60
Questions about this part
Will this rack fit my heavy equipment and thick cable bundles?
Yes, the 24-1/4" width is specifically designed to provide extra space for thick cable bundles and improved airflow. It supports a total weight capacity of 10,000 lbs (4535.9 kg).
Is the WRK-44-32 suitable for seismic zones?
Yes, this rack is seismic rated with a seismic load capacity of 900 lbs (408.2 kg) and carries ASCE 7-10 certification.
Can I expand this rack for multi-bay installations?
Yes, the WRK series is gangable, allowing you to connect multiple units together for large-scale installations.
What accessories are compatible with this 44 RU rack?
You can add components like the PD-2420SC-NS vertical power strip, QTFP-2 fan panels, or the LVFD-44 vented front door to customize your setup.
Which technical documents are available for submittals?
Full technical details are available in the WRK Series Enclosure A&E Specification Sheet, the 3 Part Specification doc, and various CAD/3D drawing files.
