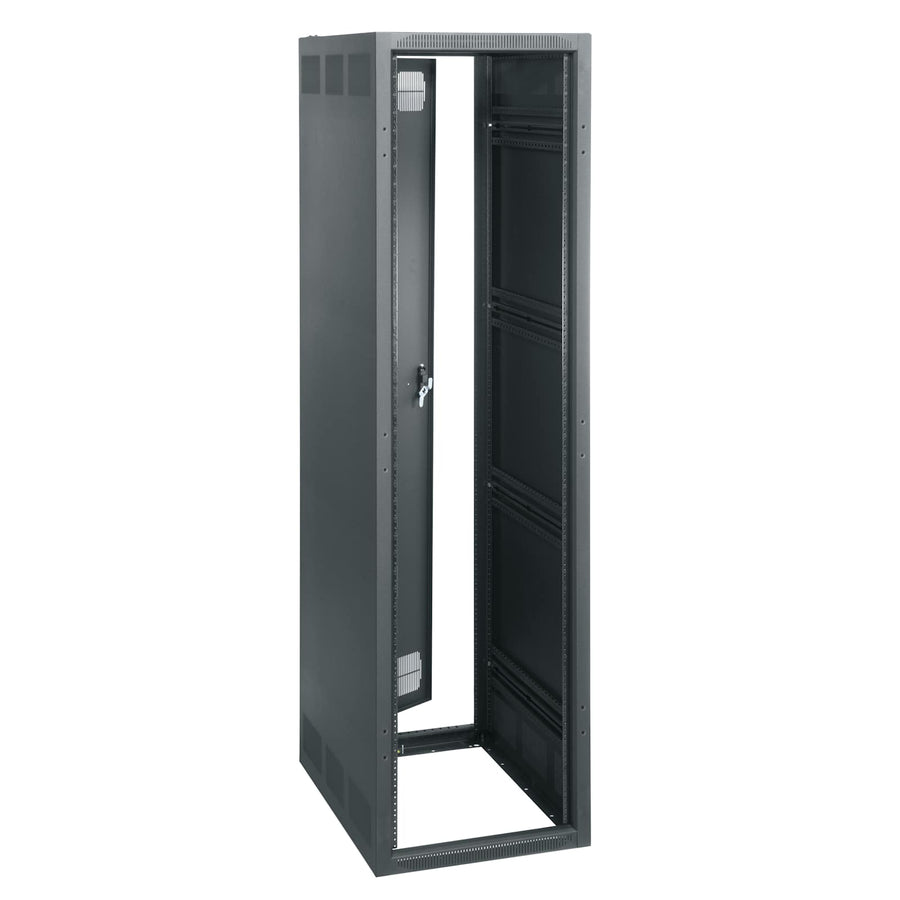

41 RU BGR-SA Series Rack, 32 Inches Deep
41 RU floor-standing AV rack, 32" depth, seismic rated, TAA compliant, with Forward and Lever Lock™ compatibility
The Middle Atlantic BGR-41SA-32 is a 41 RU standalone AV rack designed for high-performance professional installations. Featuring a 32 in (81.3 cm) depth and a 23 in (58.4 cm) width, this frame-only configuration provides an expansive usable depth of 29.4 in (74.7 cm) and a usable height of 71.88 in (182.6 cm). This series is Forward Compatible and supports the Lever Lock™ system, allowing for tool-free installation of cable management accessories. The 23" width creates extra space for front-to-back cable management and small device mounting in the side channels. Built from steel with a black wrinkle powder coat finish, the rack includes a standard vented rear door and a 25mm x 150mm swing handle. For high-security or high-traffic environments, the solid sides help control airflow and increase system security. This seismic-rated rack is also gangable, allowing multiple units to be joined for larger deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 75.88 in (192.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 41 RU |
| Shipping Weight | 210 lbs (95.3 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 71.88 in (182.6 cm) |
All other specifications 17
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747139918 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Vented Top BGR Series
BGR-LVT9$87.30
PD Slim High Density Vertical Power Strip, 24 Outlet, 15A
PD-2415SC-NS$286.20
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 20 Outlet, 20A Hardwired J-Box at Top
PDT-2X1020T$505.80
41 RU 64% Vented Front Door for BGR Racks
BVFD-41$603.00
41 RU Vented Front Door, Curved
VFD-41A$760.50
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Questions about this part
Is the BGR-41SA-32 suitable for seismic locations?
Yes, this rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and is UL Listed and HCAI (formerly OSHPD) certified.
What accessories are compatible with this rack?
This series accepts Lever Lock™ tool-free cable management and is compatible with items like the CBS-BGR caster base or the BGR-LVT9 vented top.
Can I mount multiple BGR-SA racks together?
Yes, the BGR-SA series is gangable, allowing you to join multiple units for larger system configurations.
Does this rack include doors?
The BGR-41SA-32 includes a standard vented rack rear door and is compatible with optional front doors like the VFD-41A curved vented door.
What are the usable dimensions inside the rack?
The rack provides a usable height of 71.88 in (182.6 cm) and a usable depth of 29.4 in (74.7 cm).
