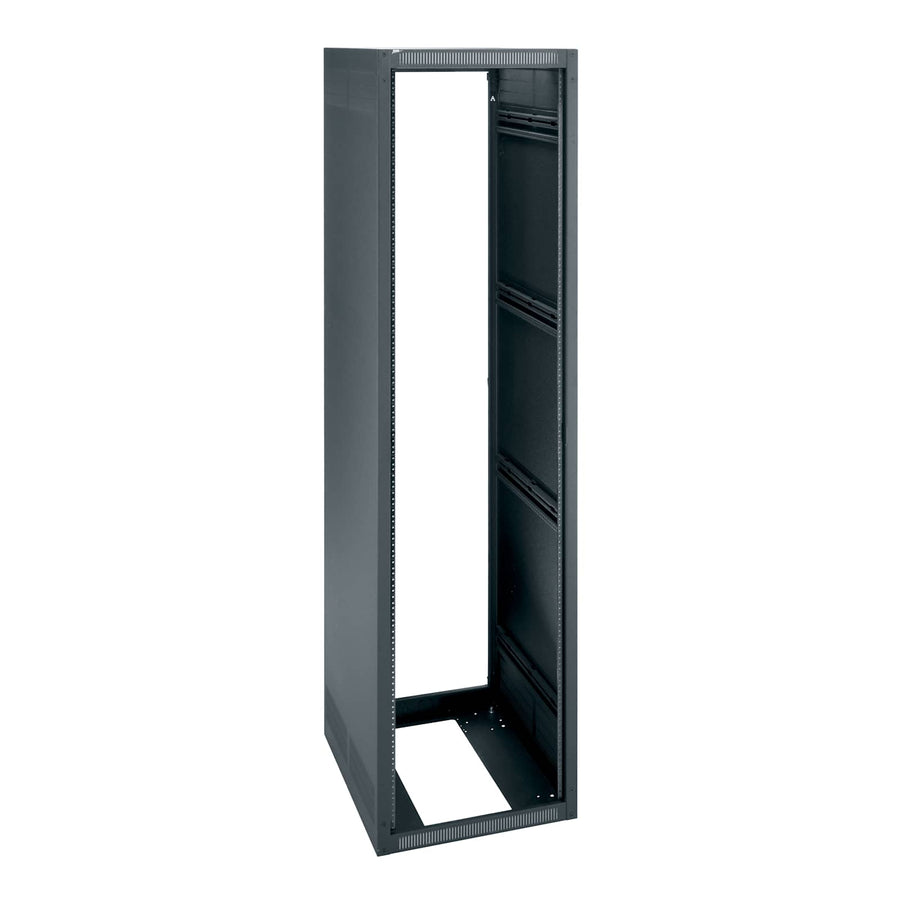

40 RU ERK Series Rack, 20 Inches Deep without Rear Door
40 RU floor-standing rack, 20 inch depth, seismic rated, with 2,500 lbs UL load capacity
The Middle Atlantic ERK-4020LRD is an economical, standalone floor-standing rack designed for high-density AV installations. This 40 RU frame features a 20 in (50.8 cm) depth and is constructed from fully welded steel with a black wrinkle powder coat finish. It is engineered for high-capacity deployment, boasting a UL listed load capacity of 2,500 lbs (1,134 kg). For environments requiring enhanced seismic protection, this unit can be certified with ERK-Z4 brackets, providing a seismic load capacity of 597 lbs (270.8 kg). This frame-only configuration provides an open architecture with top and bottom venting on the rack sides to assist with thermal management. For cable organization, the unit includes lacing points and slotted rackrail brackets, utilizing standard front adjustable 10-32 threaded rackrails with numbered spaces to streamline the installation process.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Height | 74.13 in (188.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 80.1 lbs (36.3 kg) |
| Rack Units | 40 RU |
| Shipping Weight | 112 lbs (50.8 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 18.47 in (46.9 cm) |
All other specifications 15
| Usable Height | 70.13 in (178.1 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747006531 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 597 lbs (270.8 kg) |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
40 RU Plexi Front Door for SR, ERK, MRK and WRK Racks
PFD-40$926.10

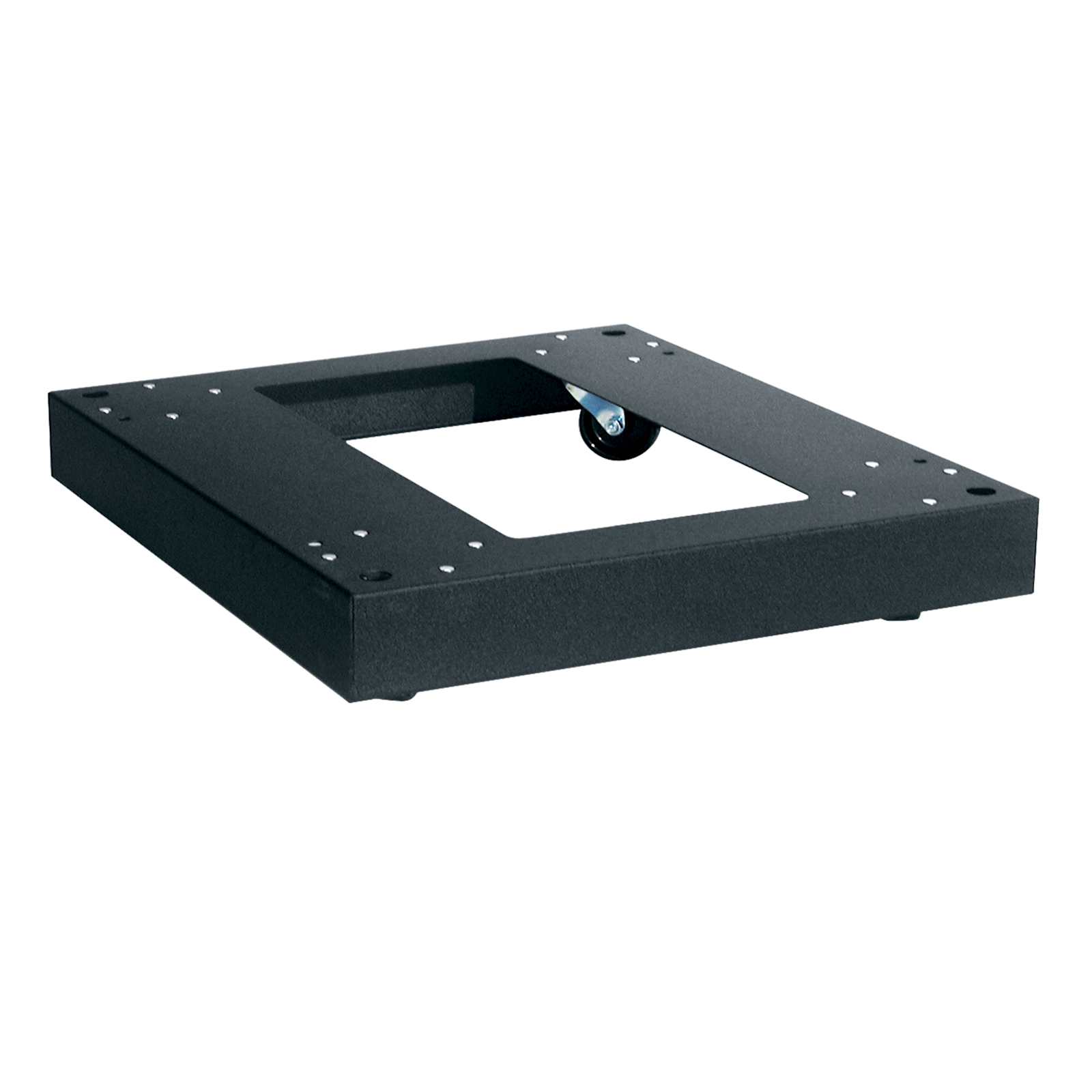

Caster Base for 20 Inch Deep ERK Series - 700 pounds
CBS-ERK-20R$356.40
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A
PDT-615C-NS$232.20
Caster Base for 20 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-20$306.90
40 RU Rackrail 10-32 for ERK Series
ERK-RR40$144.00
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
40 RU Vented Front Door for SR, ERK, MRK and WRK Racks
VFD-40$639.90
Questions about this part
Will the ERK-4020LRD fit my equipment depth?
The ERK-4020LRD has a total depth of 20 in (50.8 cm) and a usable depth of 18.47 in (46.9 cm).
What accessories are needed to make this a complete enclosure?
This is a frame-only configuration. You can add a PFD-40 Plexi front door, a VFD-40 vented front door, or a LVFD-40 vented door (64% open) to complete the setup.
Can I add wheels to this rack?
Yes, you can equip this rack with a CBS-ERK-20 caster base for 1,300 lbs or a CBS-ERK-20R caster base for 700 lbs.
How do I increase the seismic rating of this rack?
To achieve the 597 lbs (270.8 kg) seismic load capacity, you must install the rack with ERK-Z4 brackets.
Is this rack suitable for high-density cable management?
Yes, it features 10-32 threaded rackrails and includes lacing points and slotted rackrail brackets for efficient cable routing.
