3ft (0.9m) TAA-Compliant USB 2.0 A/B Cable
3ft (0.9m) USB 2.0 A/B cable, TAA-compliant, supporting 480 Mbps bidirectional data transfer for peripherals

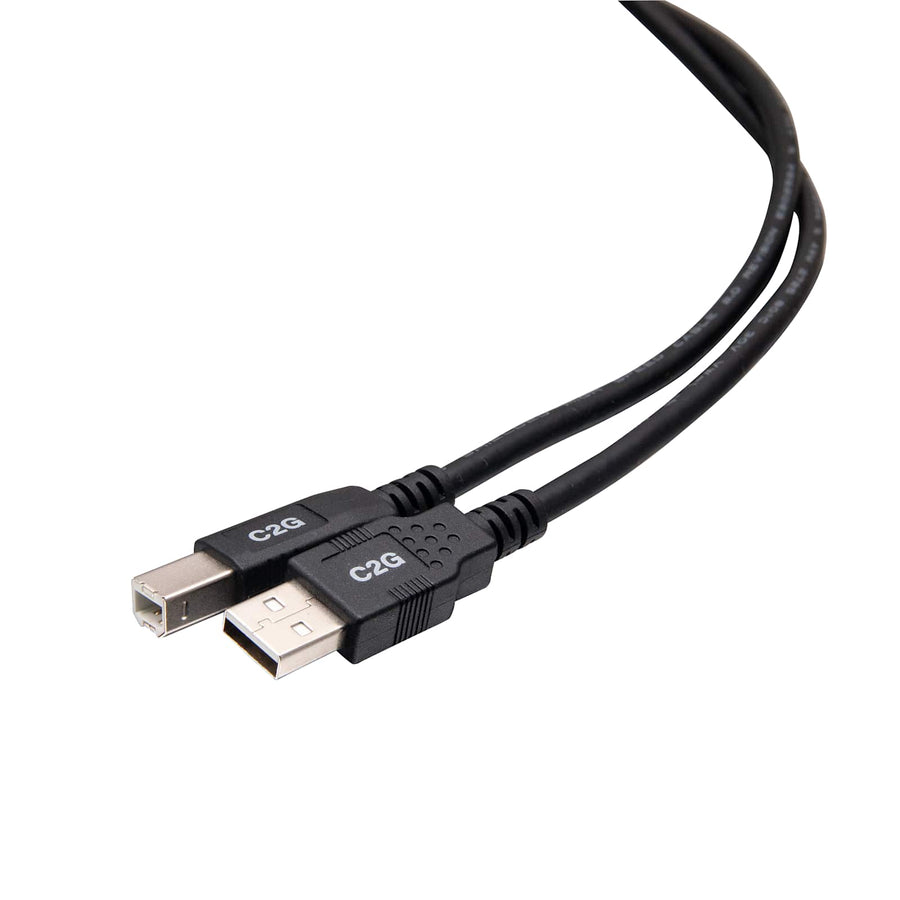

The C2G68000 is a 3ft (0.9m) USB 2.0 A/B cable designed to provide a dependable connection between a host computer and USB-B peripherals in professional AV or IT environments. This TAA-compliant cable is specifically engineered to meet U.S. Government procurement requirements, making it suitable for enterprise, government, and highly regulated project needs. It utilizes twisted-pair construction to reduce crosstalk and features both foil and braid shielding to minimize EMI/RFI interference, ensuring a stable and clean signal for bidirectional data transmission. The cable supports data transfer rates up to 480 MBPS, making it appropriate for connecting legacy USB-B equipment including printers, scanners, and USB hubs to PC or Mac systems. With a 0.19 in (4.7 mm) cable diameter and a 1.85 in (47 mm) bend radius, this black PVC jacketed cable provides a reliable solution for close-range connectivity in hardware racks or workstation setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 500 mA |
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | 23° - 113°F (-5° - 45°C) |
| Shipping Weight | 0.09 lbs (0 kg) |
All other specifications 17
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 149 Fahrenheit (65 Celsius) |
| Storage Temperature Min | -40 Fahrenheit (-40 Celsius) |
| Wire Gauge | 24 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male |
| Connector 2 | (1) USB-B Male |
| Product Type | Cable |
| TAA Compliant | Yes |
| Technology Specifications | USB 2.0 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Superbooster® USB 1.1 Over Cat5 Extender Dongle Kit (TAA Compliant)
CG29341$151.99
HDMI® HDBaseT + USB-B to A and RS232 Over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz (TAA compliant)
C2G31030$747.99
Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
C2G54262$835.99
Superbooster® 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54269$752.99
Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
10ft (3.1m) TAA-Compliant USB 2.0 A/B Cable
C2G68002$23.99
15ft (4.6m) TAA-Compliant USB 2.0 A/B Cable
C2G68003$33.99
16.4ft (5m) USB 3.0 USB-A Male to USB-A Female Active Extension Cable
CG39939$77.99
Questions about this part
Will this C2G68000 cable work with my printer or scanner?
Yes, this USB 2.0 A/B cable is designed to connect computers to USB-B peripherals such as printers, scanners, and USB hubs.
Is the C2G68000 cable TAA compliant for government projects?
Yes, this is a TAA-compliant cable that meets U.S. Government procurement requirements for regulated environments.
What is the maximum data transfer speed for the C2G68000?
This USB 2.0 cable supports a data transfer rate of up to 480 MBPS.
Does this cable support both PC and Mac systems?
The C2G68000 works with both PC and Mac systems for bidirectional data transmission.
Are there different lengths available for this USB cable series?
Yes, this series includes other options such as the C2G68001 (6ft), C2G68002 (10ft), and C2G68003 (15ft).
