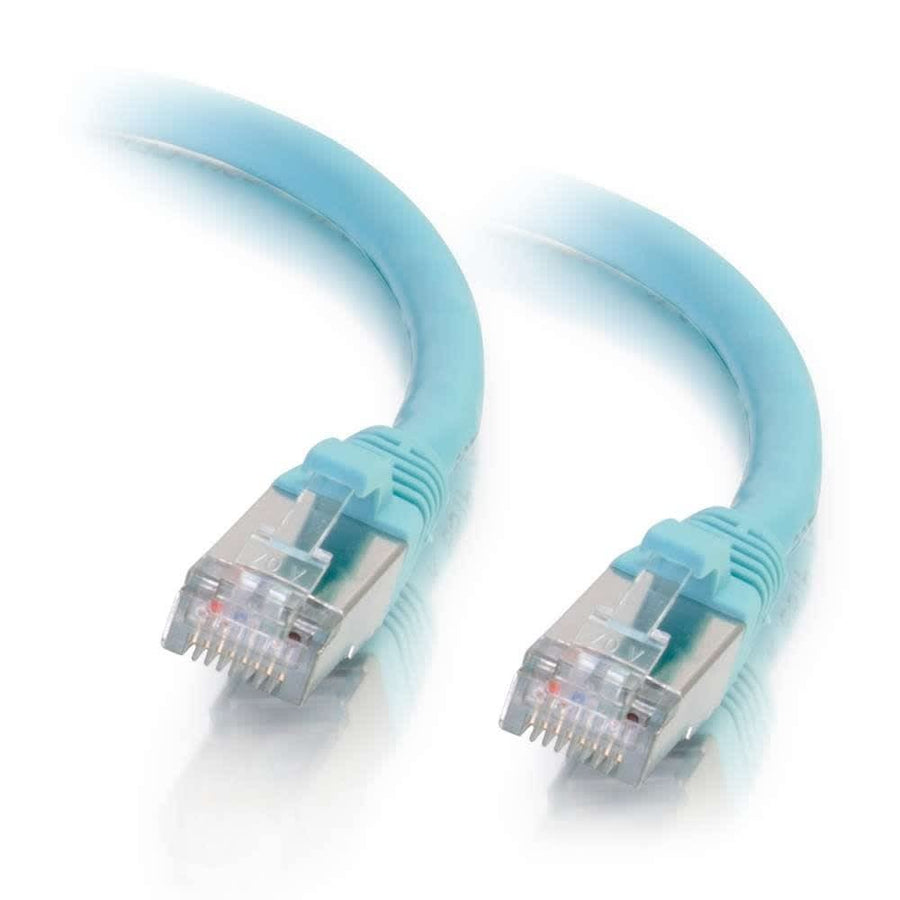

3ft (0.9m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
3ft (0.9m) Aqua Cat6a Snagless Shielded STP patch cable for 10GBase-T equipment, featuring 26AWG stranded copper conductors
The C2G CG00742 is a 3 ft (0.9 m) Cat6a snagless shielded STP Ethernet patch cable designed for high-speed 10GBase-T environments. This aqua-colored cable is engineered to protect network connections from noise and electromagnetic interference by utilizing a shielded STP construction. It is ideal for use with 10 Gigabit network equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for bandwidth-intensive voice, data, and video distribution applications. The design features 26AWG stranded bare copper conductors with FMPE (Foam Polyethylene) insulation to help maintain twist-spacing and minimize Near-End Crosstalk (NEXT) levels. This patch cable uses an RJ-45 male to RJ-45 male connector configuration with PVC boots and a snagless design to protect the termination point. It is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007425 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
What is the maximum bandwidth application for the CG00742?
This Cat6a patch cable is designed for bandwidth-intensive applications and supports 10GBase-T equipment, such as switches, routers, and network adapters.
Will this cable work in a shielded environment?
Yes, the CG00742 is a Shielded STP cable that utilizes stranded copper and FMPE insulation to reduce impedance and structural return loss.
What is the temperature rating for this patch cable?
The cable is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
What specific testing standards does this cable meet?
Every individual cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
Does this cable include a snagless boot?
Yes, the CG00742 features a snagless, booted connector design to protect the RJ-45 termination during installation and handling.
