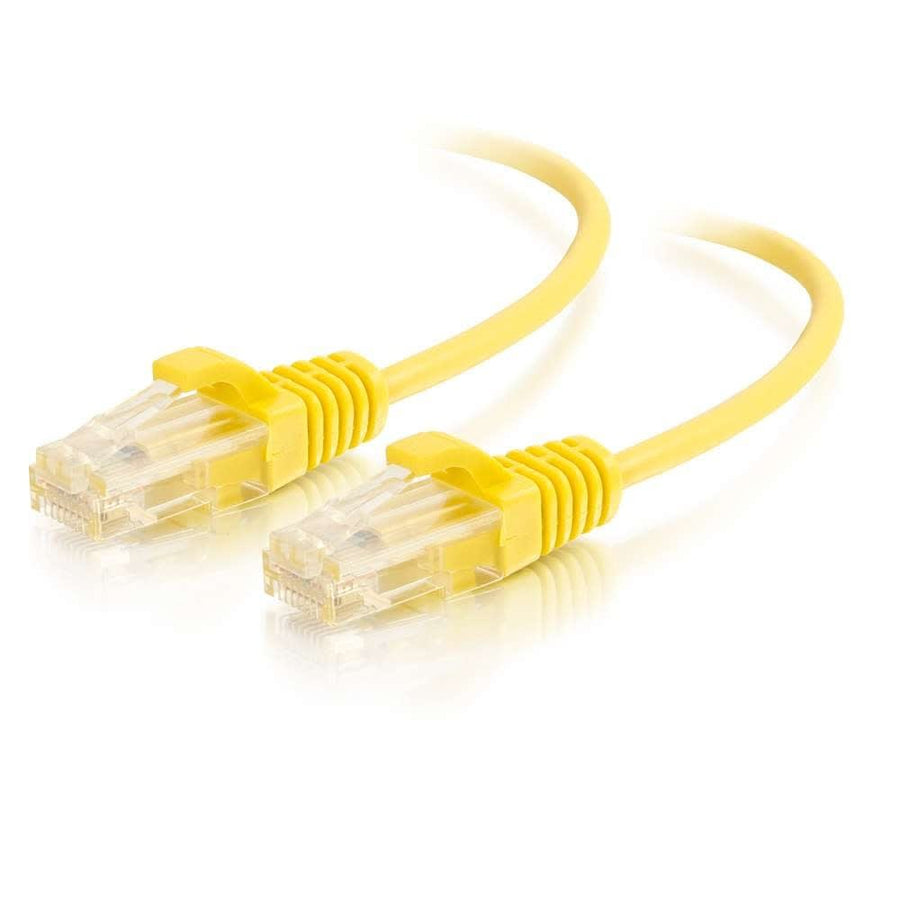

3ft (0.9m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Yellow
3ft (0.9m) Cat6 Slim UTP patch cable, 28 AWG, yellow, designed for high-density datacenter airflow and cable management
The C2G CG01171 is a 3ft (0.9m) Cat6 Slim Unshielded (UTP) Network Patch Cable designed specifically for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This smaller 0.15 in (3.8 mm) profile provides significantly increased airflow in crowded racks and allows for a tighter bend radius, making it easier to route through dense cable management panels. This yellow cable is optimized for bandwidth-intensive voice, data, and video distribution applications requiring 500 mHz bandwidth. Each cable features molded, snagless PVC boots for added strain relief and to prevent snags during installation. This slim series is compliant with the latest ANSI/TIA-568 standards and is suitable for high-performance Ethernet networks. For PoE/PoE+ applications, users should limit bundles to 40 cables to manage heat dissipation effectively.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011712 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
3ft (0.9m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Black
CG01102$8.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Will this CG01171 cable work in high-density datacenter environments?
Yes, the CG01171 is designed for high-density use; its 28 AWG slim profile offers a 36% reduction in diameter to improve airflow and routing.
What are the limitations for using this cable in PoE applications?
For PoE/PoE+ applications, it is recommended to limit cable bundles to 40 units to ensure proper heat dissipation of these reduced diameter cables.
What is the maximum channel length when using these slim patch cables?
You can maintain a 96-meter channel with up to 6 meters of slim patch cables, or a 93-meter channel with up to 10 meters of slim patch cables.
Is this Cat6 cable suitable for high-bandwidth video distribution?
Yes, this Cat6 cable is designed for bandwidth-intensive applications including data, voice, and video distribution with a 500 mHz bandwidth.
Does this cable include snagless boots for protection?
Yes, the CG01171 features molded, snagless boots to provide extra strain relief and prevent unwanted snags during the installation process.
