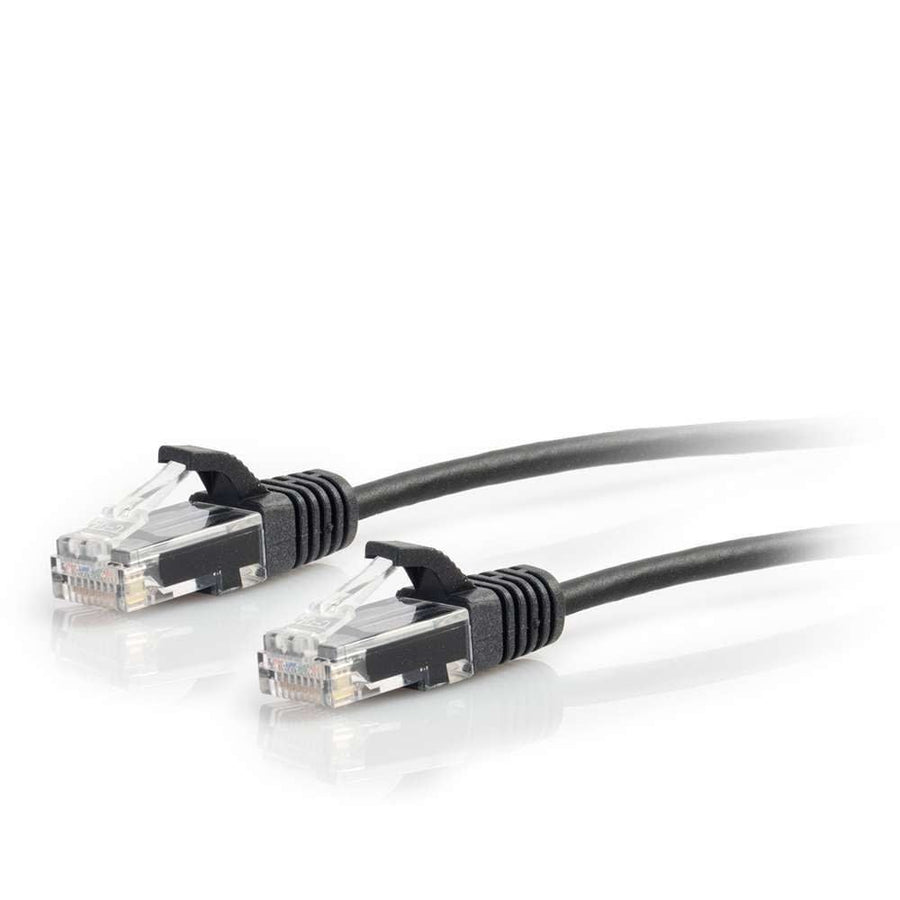

3ft (0.9m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Black
3ft Cat6 slim patch cable with 28 AWG stranded copper conductors for high-density data environments
The C2G CG01102 is a 3ft (0.9m) Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable designed specifically for high-density datacenter applications. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile offers a smaller bend radius and significantly less surface area, which facilitates increased airflow within crowded enclosures. The molded snagless boot provides extra strain relief and prevents accidental snags during installation, while the PVC jacket ensures durability in standard environments. This cable is rated for 500 mHz bandwidth and is optimized for fast Ethernet networks requiring intensive voice, data, or video distribution. For PoE/PoE+ deployments, installers should limit cable bundles to 40 units to manage heat dissipation caused by the reduced diameter of the 28 AWG conductors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.08 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011026 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99

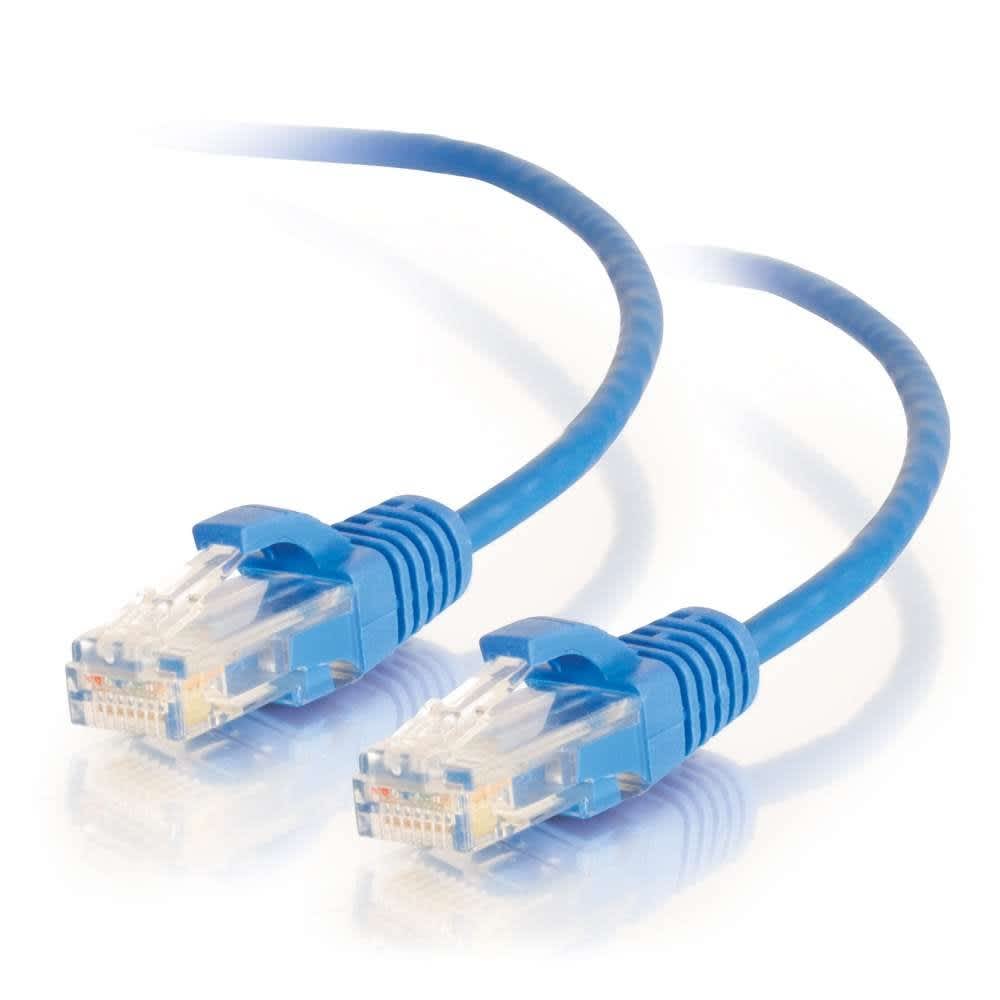

3ft (0.9m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Blue
CG01076$8.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Will this Cat6 slim cable work for PoE or PoE+ applications?
Yes, but it is recommended to limit bundles to 40 cables to ensure proper heat dissipation for these 28 AWG reduced diameter cables.
What is the maximum channel length when using this slim patch cable?
The maximum channel is 96 meters (which includes 90 meters of horizontal cable and up to 6 meters of these slim patch cables).
What is the difference between this and the blue version?
This SKU (CG01102) is Black; the CG01076 is the Blue version of the same 3ft Cat6 Slim Snagless cable.
Can I use this cable with a 48-port rack mount patch panel?
Yes, this cable is compatible with the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6).
Does this cable support high-speed data distribution?
Yes, it is designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution up to 500 mHz.
