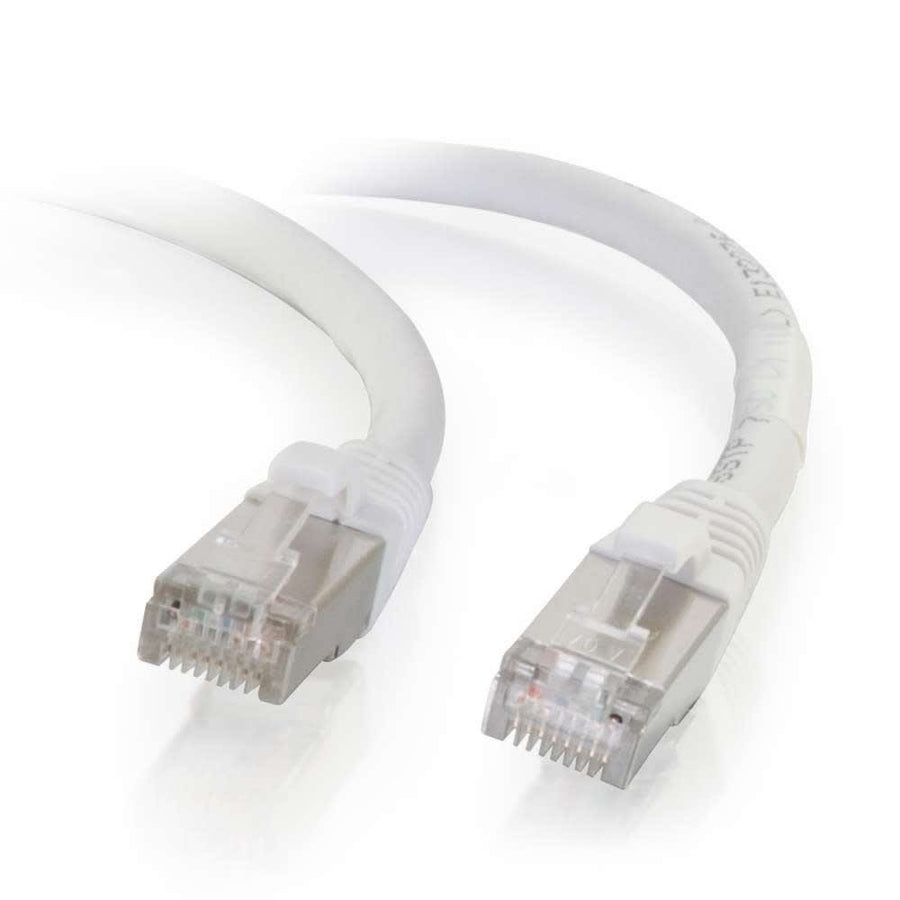

3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - White
White 3ft (0.9m) Cat6 STP shielded patch cable with snagless boots and 26AWG stranded copper conductors
The CG00916 is a 3ft (0.9m) Cat6 Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from noise and electromagnetic interference. This white patch cable is ideal for voice, data, and video distribution, providing the necessary bandwidth for intensive applications. It is engineered to drastically reduce impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) levels. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction features 26AWG stranded bare copper conductors that are bonded together to maintain twist-spacing throughout the line up to the termination point. This specific SKU features a snagless, booted connector design with PVC hoods and a PVC jacket. For system organization, each cable includes an individual length label for ease of use during installation and maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | STP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009160 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00810$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work in my high-interference environment?
Yes, the CG00916 uses Shielded STP (SSTP) construction and stranded bare copper conductors to protect against electromagnetic interference and reduce structural return loss.
Is this cable suitable for high-bandwidth video and data distribution?
Yes, this Cat6 cable is fully tested to meet ANSI/TIA 568 C.2 component requirements, making it suitable for bandwidth-intensive voice, data, and video applications.
What is the difference between this and the CG00810 SKU?
The CG00916 is the white version of this cable, whereas the CG00810 is the black version in the same Cat6 Shielded STP series.
Does this patch cable include the necessary connectors?
Yes, the CG00916 comes with two RJ-45 male connectors featuring snagless boots and PVC hoods.
What wiring standard is used for this patch cable?
This Cat6 cable follows the T568B wiring scheme.
