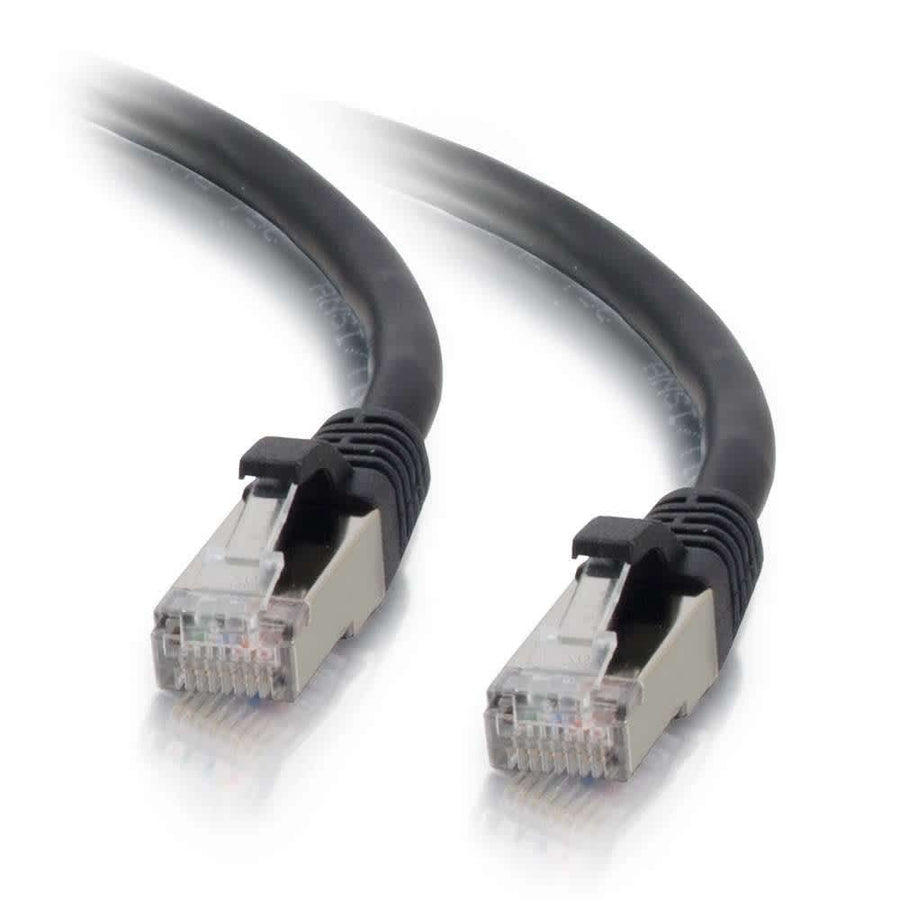

3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
3ft (0.9m) shielded Cat6 STP patch cable with snagless boots and T568B wiring, featuring 26AWG stranded copper conductors
The C2G CG00810 is a 3ft (0.9m) Cat6 Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference and noise. This shielded cable is engineered for bandwidth-intensive voice, data, and video distribution, significantly reducing structural return loss (SRL) and impedance. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. To minimize Near-End Crosstalk (NEXT) levels, the design features stranded copper 26AWG (7/0.16) conductors where each individual pair is bonded together to maintain consistent twist-spacing up to the termination point. This assembly utilizes a PVC jacket and PVC connector hoods. For ease of installation and management, each cable includes an individual length label and utilizes a snagless, booted connector type. This black STP cable is a reliable solution for maintaining network integrity in environments prone to interference.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | STP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008101 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
