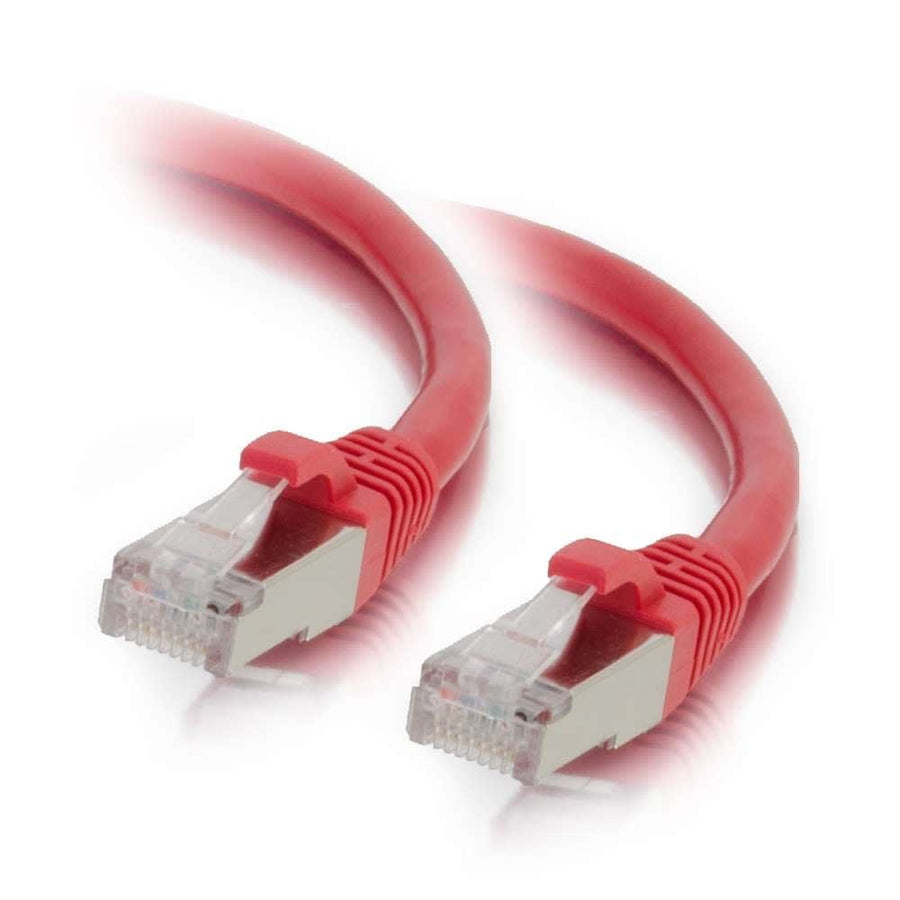

3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Red
3ft (0.9m) Red Cat6 Shielded STP Ethernet Patch Cable with snagless boots and stranded copper conductors
The C2G CG00844 is a 3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in red, designed to protect high-speed networks from electromagnetic interference and noise. This shielded STP cable is engineered for bandwidth-intensive voice, data, and video distribution applications, helping to drastically reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing throughout the line right up to the termination point, a design choice that minimizes Near-End Crosstalk (NEXT) levels. Built with 26AWG bare copper stranded conductors and PVC jacket material, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The red color coding allows for easy identification within complex network installations, and each cable features an individual length label for rapid deployment. These cables are rated for temperatures up to 75°C and feature snagless, booted RJ-45 male connectors to protect the connection during installation and handling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008446 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00810$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the wiring scheme for the C2G CG00844?
This patch cable uses the T568B wiring scheme for all connections.
Will this cable work in high-interference environments?
Yes, the STP (Shielded Twisted Pair) design is specifically intended to protect high-speed networks from noise and electromagnetic interference.
Does the CG00844 cable meet industry standards?
Every cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
What is the maximum temperature rating for this cable?
This Cat6 patch cable has a temperature rating of 75°C.
Are there other color options available for this series?
Yes, this series is available in several colors, including Black (SKU: CG00810), to facilitate easy color-coding in your network.
