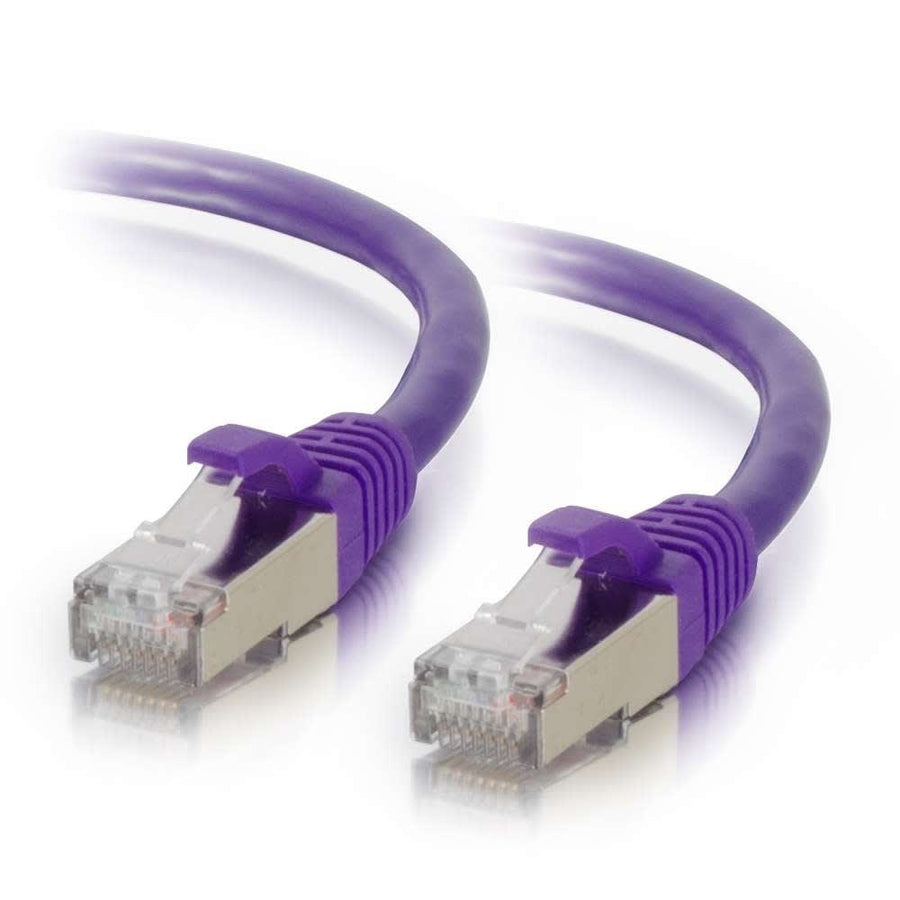

3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Purple
3ft (0.9m) Cat6 STP shielded Ethernet patch cable, purple color, featuring 26AWG stranded copper conductors and snagless boots
The CG00899 is a 3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in purple, designed to protect high-speed networks from noise and electromagnetic interference. This cable is ideal for bandwidth-intensive applications in voice, data, and video distribution. It is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance in demanding environments. The construction features 26AWG bare copper stranded conductors with FM-PE insulation, which helps maintain twist-spacing through the termination point to minimize Near-End Crosstalk (NEXT) levels. This design also reduces impedance and structural return loss (SRL). The cable is terminated with two RJ-45 male connectors protected by PVC snagless boots for ease of installation and durability. For those needing different colors for network identification, this SKU is part of a larger series that includes options like the CG00810 in black.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | STP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008996 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00810$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will the CG00899 work with my Cat6 shielded installation?
Yes, this is a Category 6 STP shielded cable with a T568B wiring scheme, making it suitable for high-speed, noise-sensitive network environments.
What is the difference between this and the black version?
The CG00899 is the purple color variant, whereas the CG00810 is the identical 3ft Cat6 shielded patch cable in black.
What testing standards does this patch cable meet?
This cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6 component requirements.
Is this cable suitable for high-bandwidth video distribution?
Yes, the shielded design is built to handle bandwidth-intensive applications while reducing impedance and structural return loss (SRL).
What tools are needed for installation?
This is a pre-terminated patch cable with RJ-45 male connectors, so no specialized installation tools are required for use.
