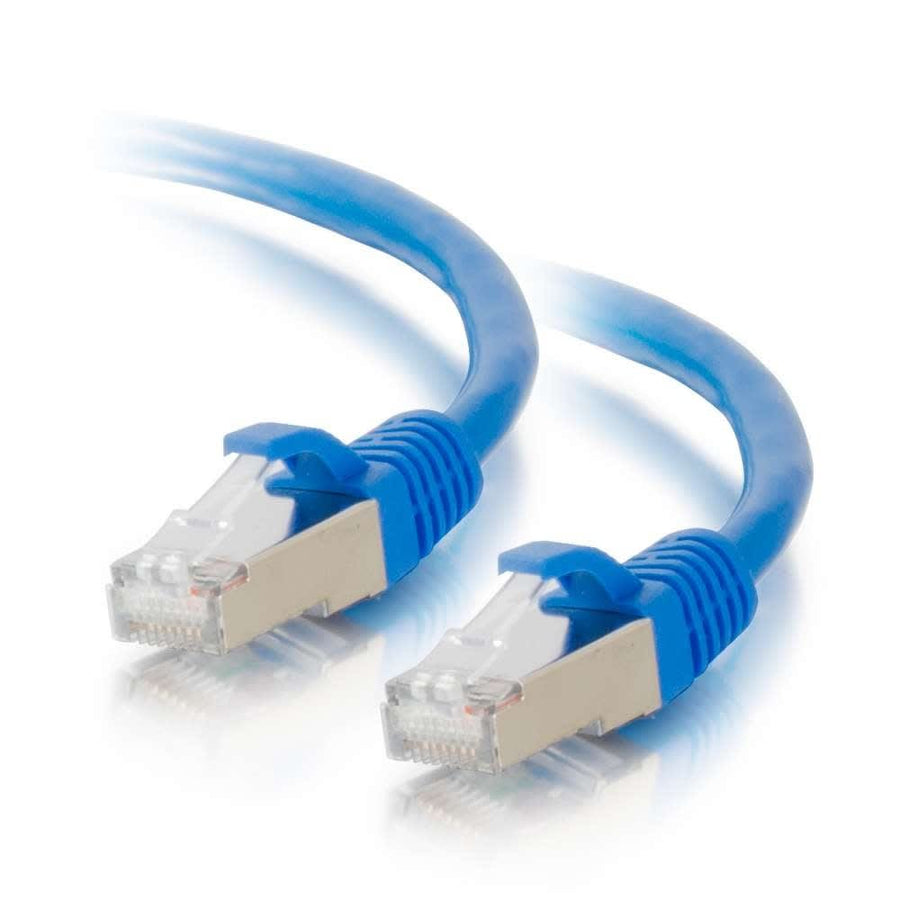

3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
3ft Cat6 shielded STP patch cable in blue with snagless boots and RJ-45 male connectors
The C2G CG00793 is a 3ft (0.9m) Cat6 shielded STP Ethernet patch cable designed to protect high-speed networks from noise and electromagnetic interference. This blue cable is ideal for voice, data, and video distribution where bandwidth-intensive applications require a stable connection. By utilizing an SSTP construction with stranded 26AWG bare copper conductors, this cable drastically reduces impedance and structural return loss (SRL). Each individual pair is bonded together to maintain consistent twist-spacing right up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The jacket is made of PVC with a 75°C temperature rating, and the connectors feature PVC snagless boots to protect the termination. It utilizes a T568B wiring scheme and is suitable for environments requiring shielded protection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | STP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007937 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video and data distribution?
Yes, this shielded STP cable is designed to handle bandwidth-intensive applications by reducing impedance and structural return loss (SRL).
What is the wiring scheme used for this C2G patch cable?
The CG00793 uses the T568B wiring scheme and features 26AWG stranded bare copper conductors.
Is this cable tested to meet industry standards?
Yes, each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
Does this cable provide protection against electromagnetic interference?
Yes, the SSTP (Shielded Twisted Pair) construction and bonded individual pairs are designed to minimize Near-End Crosstalk (NEXT) and EMI.
What is the maximum operating temperature for this cable?
This cable has a temperature rating of 75°C.
