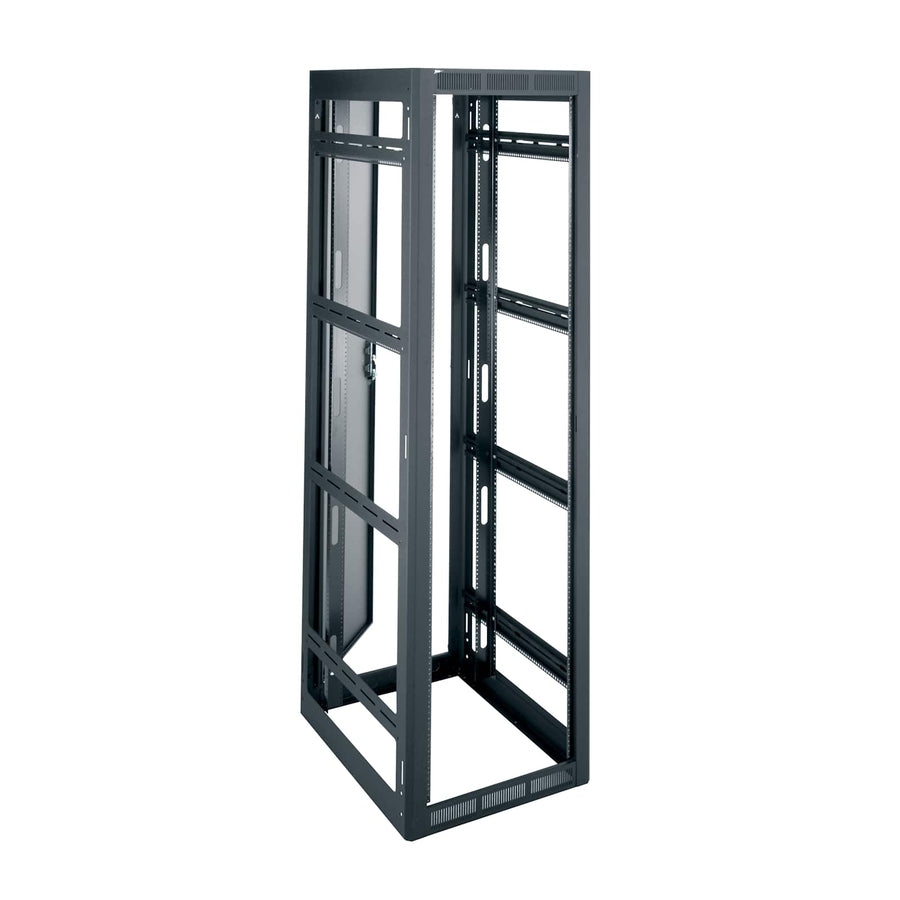

37 RU WRK Series 24-1/4 Inch Wide Rack, 32 Inches Deep
37 RU floor-standing rack, 32" deep, with 24.25" width for high-density cabling and increased airflow
The Middle Atlantic WRK-37-32 is a 37 RU floor-standing rack designed to accommodate heavy-duty equipment and thick cable bundles. Featuring a 24.25" overall width, this enclosure provides extra space for side cabling or enhanced cooling airflow compared to standard-width racks. The unit is constructed with fully welded framing for maximum structural strength, supporting a weight capacity of 10,000 lbs (4535.9 kg) and a UL load capacity of 2500 lbs (1,134 kg). This rack is Seismic Rated with an ASCE 7-10 rating and a seismic load capacity of 900 lbs (408.2 kg). It includes a standard configurable rear door and features front and rear adjustable 10-32 threaded rackrails with numbered spaces. For cable management, the extra-wide rackrails include dedicated cable pass-throughs and lacing points to facilitate front-to-rear cabling. This TAA compliant, USA-made rack is gangable for multi-bay deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32.63 in (82.9 cm) |
| Height | 70.88 in (180 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 37 RU |
| Shipping Weight | 160 lbs (72.6 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 30.75 in (78.1 cm) |
| Usable Height | 64.75 in (164.5 cm) |
All other specifications 12
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 24.25 in (61.6 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747024658 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 900 lbs (408.2 kg) |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
380 CFM Fan Top
MW-4FT-380CFM$649.80
Caster Base for 32 Inch Deep WRK Series
CBS-WRK-32$405.00
Leveling Feet
LF$40.50
Vented Top
MW-VT$98.10
12 RU Copper Bus Bars, 2 Inch Wide
BB-12$148.50
Lace Bar 6 Inch Offset, L-Shaped - 10 Pieces
LBP-6A$130.50
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1000R-2$2,860.20
NEXSYS™ Online UPS Expandable Run Time Unit For 1000VA UPS Units
UPX-EXPANRUN-OL10$2,097.00
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL1000R-2$3,300.30
Questions about this part
Will the WRK-37-32 fit my high-density cabling requirements?
Yes, the 24.25" (61.6 cm) overall width provides extra room for thick cable bundles and side cabling, while the extra-wide rackrails include pass-throughs for front-to-rear management.
Can I add accessories like PDUs or leveling feet to this rack?
Yes, this rack is compatible with various accessories, including the PD Slim High Density Vertical Power Strip (PD-2420SC-NS) and Leveling Feet (LF).
Is this rack suitable for seismic-protected environments?
Yes, the WRK-37-32 is Seismic Rated (ASCE 7-10) with a seismic load capacity of 900 lbs (408.2 kg).
What is the difference between usable depth and total depth?
The rack has a total depth of 32.63 in (82.9 cm), while the usable depth for mounting equipment is 30.75 in (78.1 cm).
Which documents are available for submittals?
You can access the WRK Series Enclosure 3 Part Specification (docx), CAD Technical Specification Drawings, or the Seismic Certification Letter for submittal packages.
