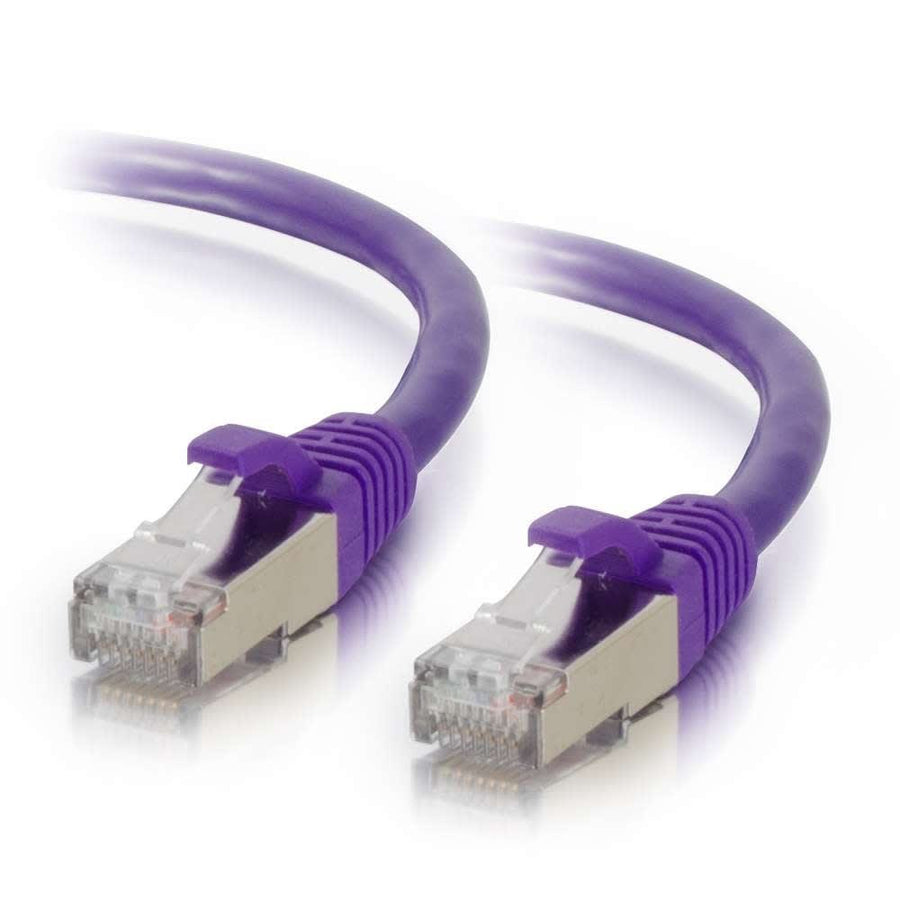

35ft (10.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Purple
35 ft (10.7 m) Cat6 Shielded STP Ethernet patch cable in Purple with snagless, booted RJ-45 connectors
The C2G CG00913 is a 35 ft (10.7 m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in Purple. Designed for high-speed network environments, this SSTP cable protects data transmissions from electromagnetic interference and noise. It is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, making it suitable for bandwidth-intensive voice, data, and video distribution. Each cable features 26AWG bare copper conductors with stranded construction and FM-PE insulation to ensure reliable signal integrity. To minimize Near-End Crosstalk (NEXT), the individual wire pairs are bonded together, maintaining twist-spacing from the connector to the termination point. This cable utilizes a T568B wiring scheme and features booted, snagless RJ-45 male connectors with PVC hoods for added protection. The 0.24 in (6.2 mm) diameter jacket is made of PVC and is rated for temperatures up to 75°C. For easy identification in complex installations, this cable is purple and includes an individual length label on each unit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | STP |
| Shipping Weight | 1.07 lbs (0.5 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009139 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Will this CG00913 cable work in a standard T568B network configuration?
Yes, this Cat6 patch cable is wired using the T568B scheme and is fully compliant with ANSI/TIA 568 C.2 standards.
Is this Cat6 cable suitable for environments with high electromagnetic interference?
Yes, the SSTP shielding and bonded wire pairs help reduce noise, impedance, and structural return loss (SRL) in high-speed applications.
What is the maximum operating temperature for this patch cable?
The cable is rated for operation in temperatures up to 75°C.
Can I use this cable for color-coded network management?
Yes, this specific SKU is purple, allowing for easy visual identification in complex rack or wall installations.
What accessories are compatible with this C2G cable series?
This cable is compatible with various testing and connectivity hardware, such as the LANsmart TDR Cable Tester and various Keystone Jack Surface Mount Boxes.
