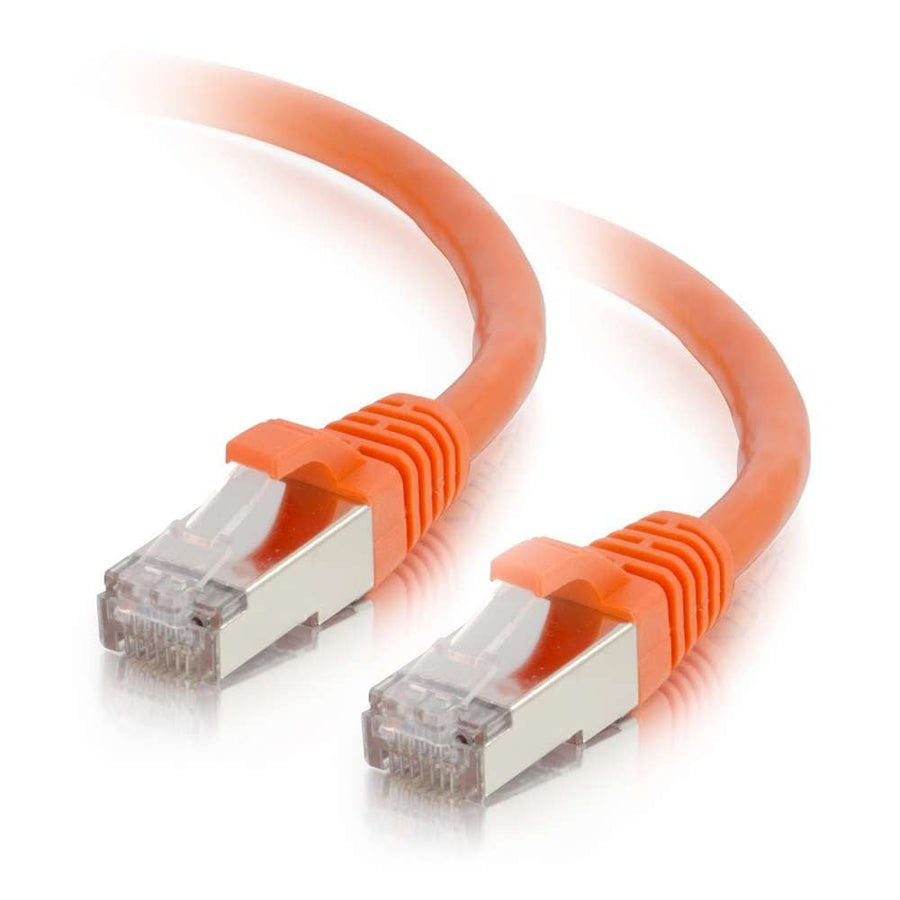

35ft (10.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Orange
35ft (10.7m) shielded Cat6 STP patch cable in orange with snagless booted RJ-45 connectors
The CG00896 is a 35ft (10.7m) Cat6 shielded STP patch cable designed to protect high-speed networks from noise and electromagnetic interference. This orange cable is constructed with stranded copper conductors (26AWG 7/0.16) and utilizes an FM-PE insulation to ensure reliable performance in bandwidth-intensive voice, data, and video distribution environments. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, significantly reducing impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain twist-spacing through to the termination point. The RJ-45 male connectors feature PVC hood material and a snagless, booted design to prevent accidental disconnects. For ease of installation and identification, this cable includes an individual length label and is color-coded orange. This cable operates within a temperature rating of 75°C and features a PVC jacket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | STP |
| Shipping Weight | 1 lbs (0.5 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008965 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
8-Port Network Switch
DA8000WH$79.99
Questions about this part
Is the C2G CG00896 TAA compliant?
No, this specific SKU is not TAA compliant.
What wiring scheme does the CG00896 use?
This Cat6 patch cable uses the T568B wiring scheme.
What accessories are compatible with this cable?
This cable can be used alongside LANsmart TDR Cable Testers (CG39002), Psiber Pinger Plus Network IP Testers (CG2941), or various Keystone wall plates and surface mount boxes.
Does this cable feature snagless connectors?
Yes, the RJ-45 male connectors are designed with a snagless, booted connector type to protect the release tabs.
What is the temperature rating for this patch cable?
This cable has a temperature rating of 75°C.
